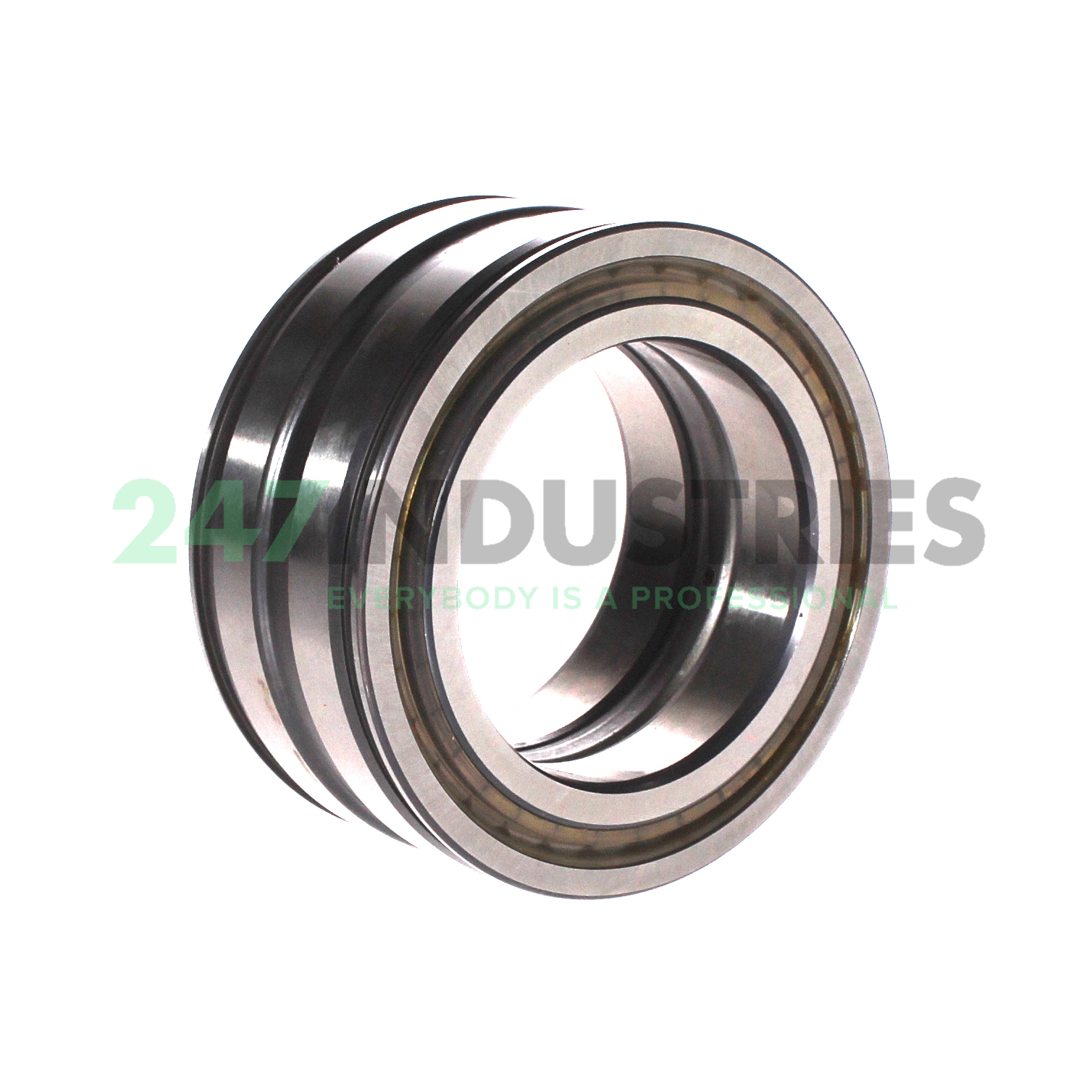

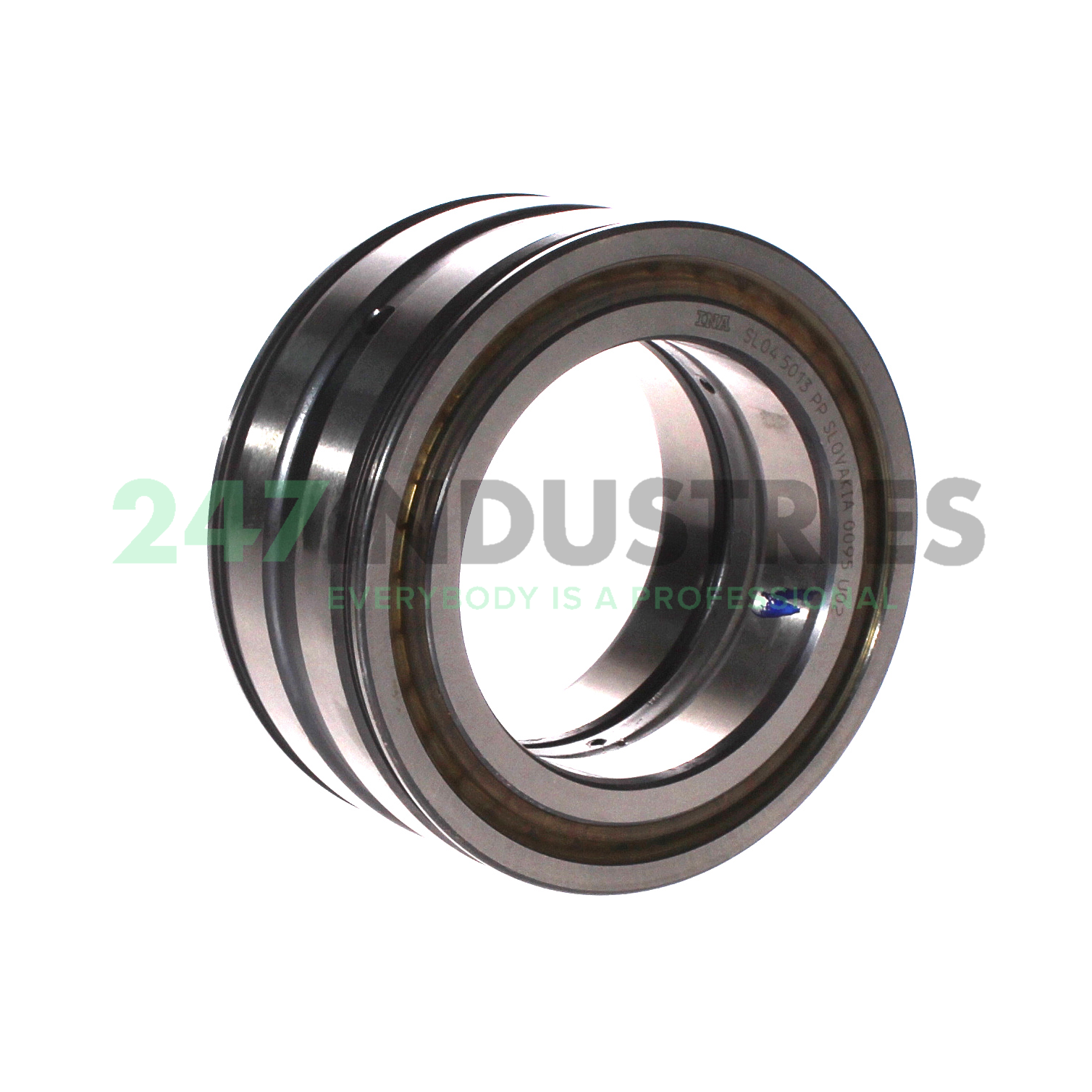

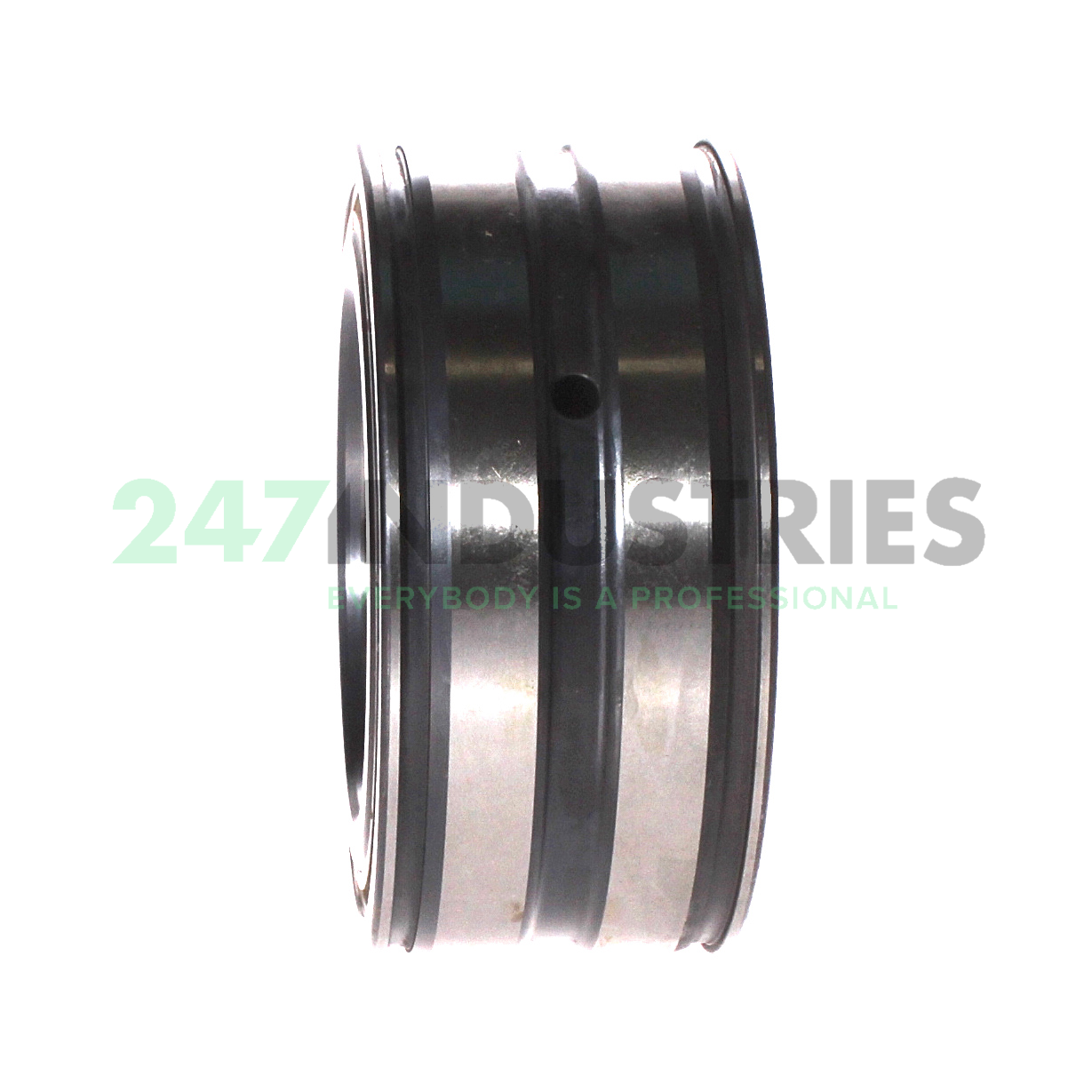

SL045013-PP INA

All dimensions

1. Inner (d) MM 65,00
2. Outer (D) MM 100,00
3. Width (B) MM 46,00
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.9370
6. Width (B) Inch 1.8110
7. Width (b) mm 46,00

Suffix description

1. PP Lip Seals On Both Sides Of The Bearing

Technical details

1. Availability 132 pcs
2. Brand INA
3. Item number SL045013-PP INA
4. Also known as 0015143340000
   NNF5013ADA-2LSV

5. EAN 4012802071511
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.24

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 215000
2. Radial Dynamic Load Rating Cr (N) 130000
3. Basic static load rating, radial (C 0r) "215000.0000"
4. Limiting speed for grease lubrication (n G Grease) "2040.0000"
5. ECLASS number 23-05-09-01
6. ECLASS2 number 23-05-09-01
7. Medias description Cylindrical roller bearing SL04..-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04

Downloads and links

1. Link to manufacturer Link to manufacturer
