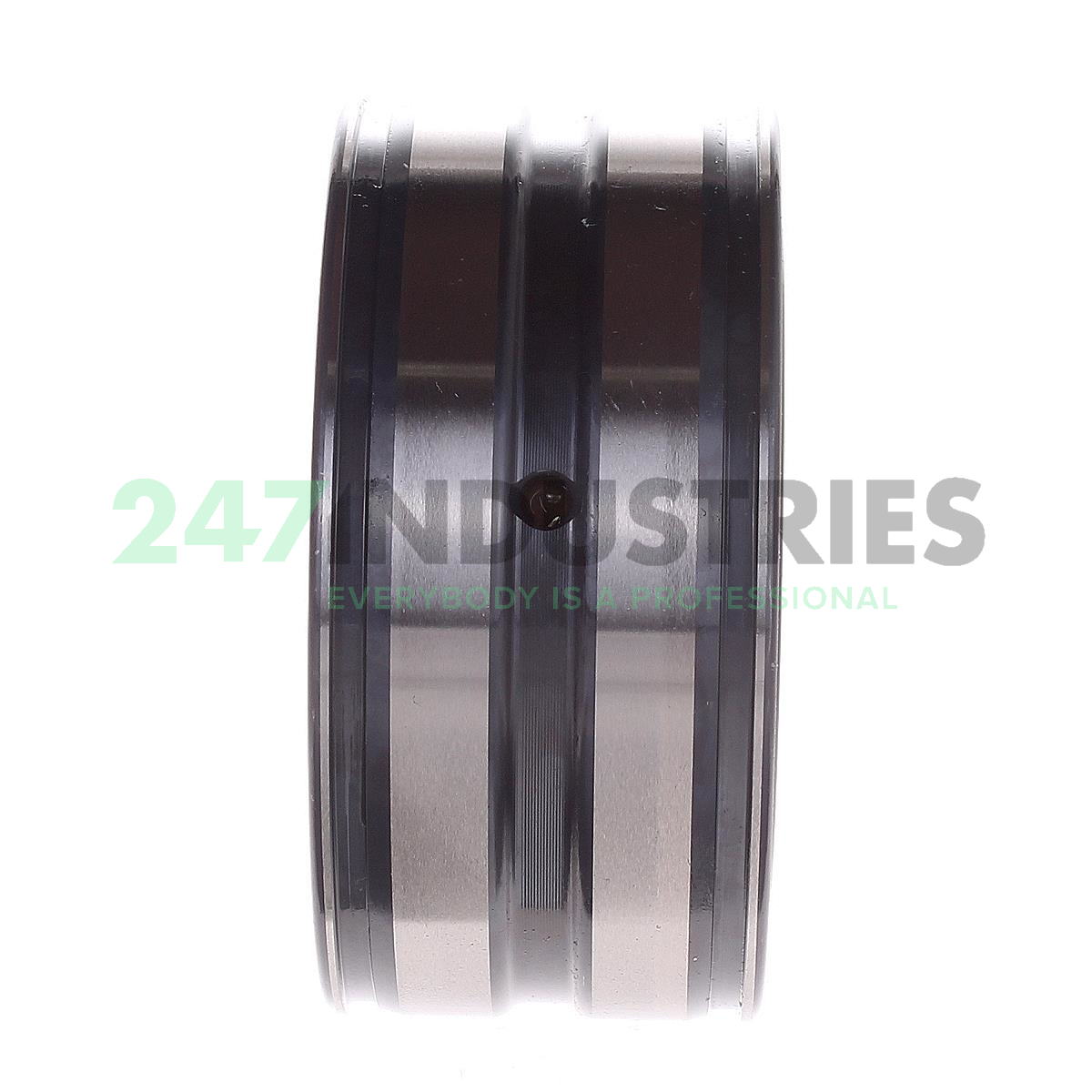

SL045012-PP INA

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 95
3. Width (B) MM 46
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.7402
6. Width (B) Inch 1.811
7. Width (b) mm 46

Suffix description

1. PP Lip Seal On Both Sides Of The Bearing

Technical details

1. Availability 34 pcs
2. Brand INA
3. Item number SL045012-PP INA
4. Also known as 0014775950000
   NNF5012-2LSV

5. EAN 4012802071498
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 201000
2. Radial Dynamic Load Rating Cr (N) 125000
3. Limiting speed for grease lubrication (n G Grease) 2180
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01
6. Medias description Cylindrical roller bearing SL04..-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
