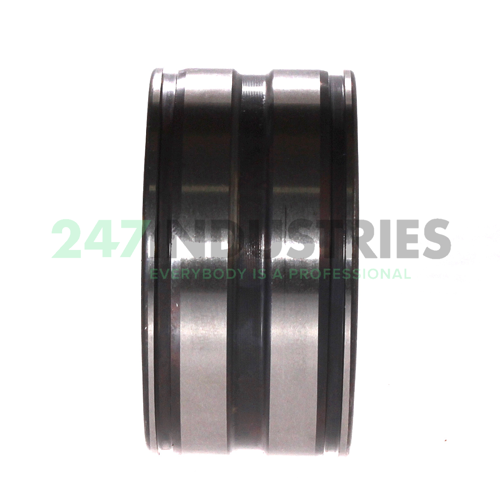

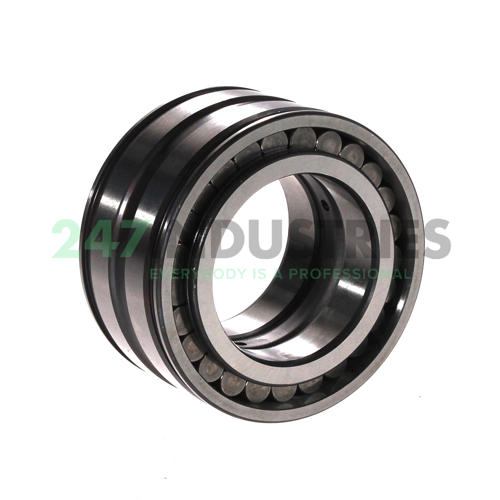

SL045009-C3 INA

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 75,00
3. Width (B) MM 40,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 1.5748
7. Width (b) mm 40,00

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number SL045009-C3 INA
4. Also known as 0017225570030
   NNF5009V/C3

5. EAN 4012802726800
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.687

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 139000
2. Radial Dynamic Load Rating Cr (N) 97000
3. Basic static load rating, radial (C 0r) "139000.0000"
4. Limiting speed for grease lubrication (n G Grease) "2800.0000"
5. ECLASS number 23-05-09-01
6. ECLASS2 number 23-05-09-01
7. Medias description Cylindrical roller bearing SL04, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04

Downloads and links

1. Link to manufacturer Link to manufacturer
