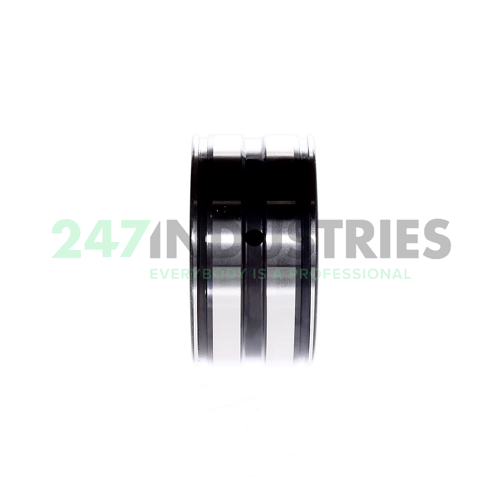

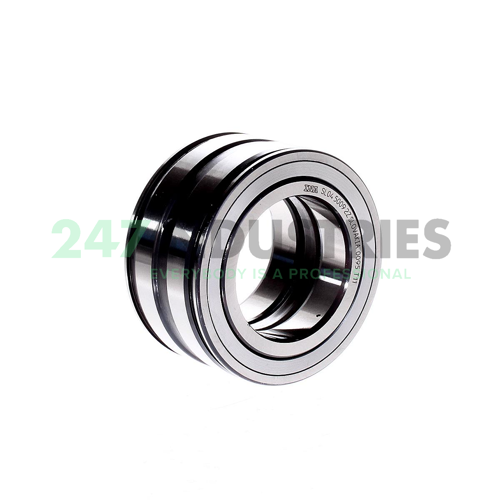

SL045009-2Z INA

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 75,00
3. Width (B) MM 40,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 1.5748

Suffix description

1. 2Z Two Metallic Shields

Technical details

1. Availability 40 pcs
2. Brand INA
3. Item number SL045009-2Z INA
4. Also known as 0017226030000
   NNF5009V-2Z

5. EAN 4012802705515
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.687

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. ECLASS number 23-05-09-01
2. ECLASS2 number 23-05-09-01
