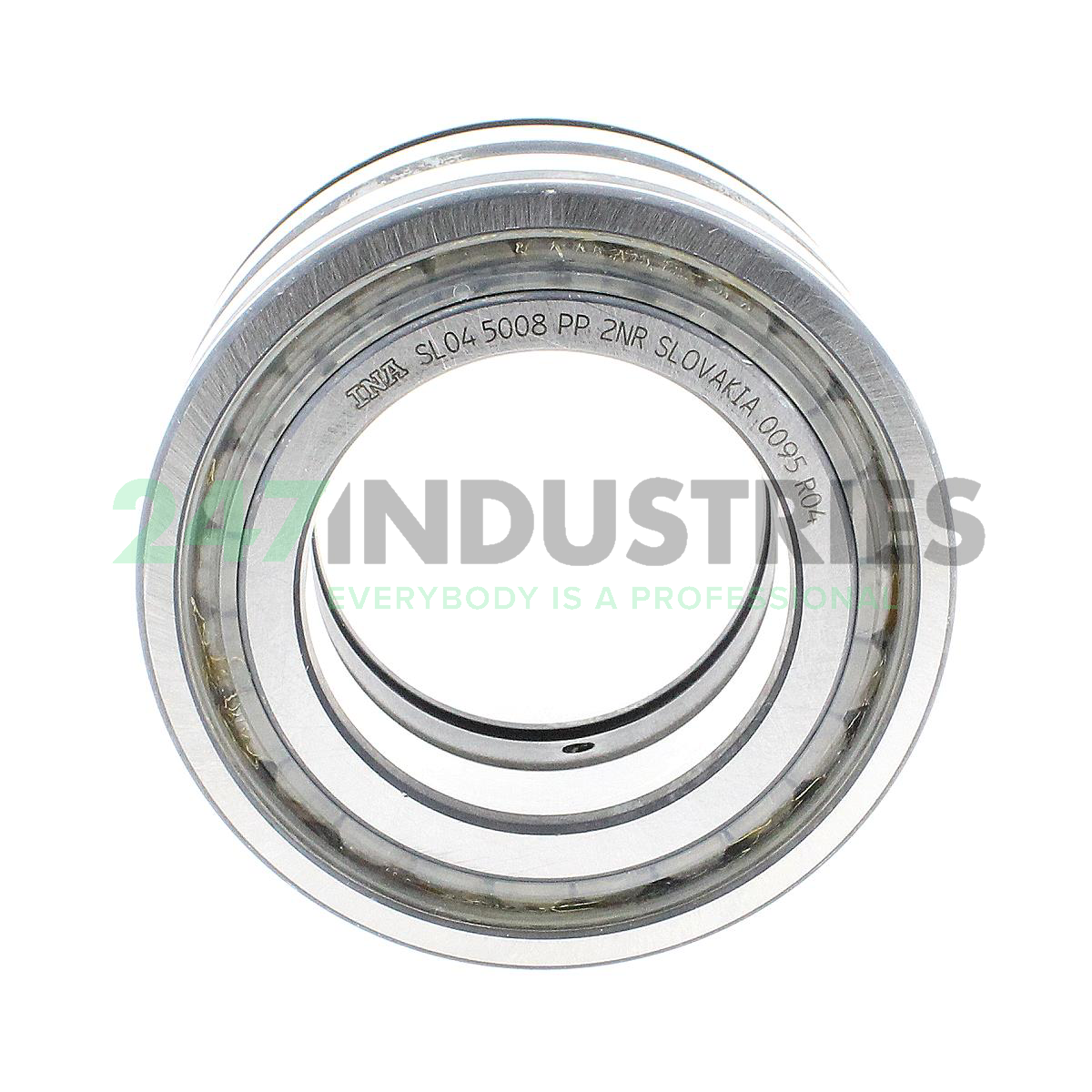

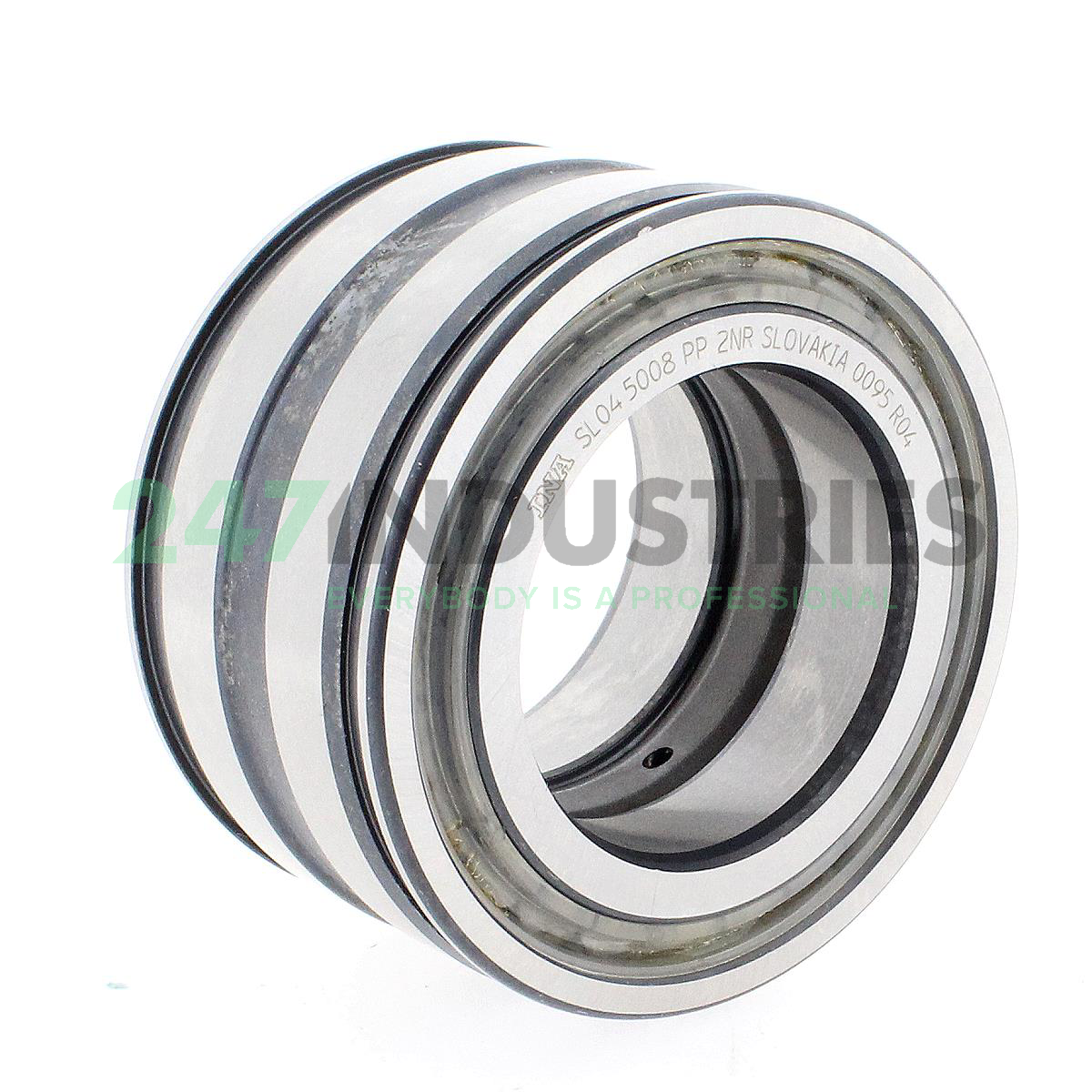

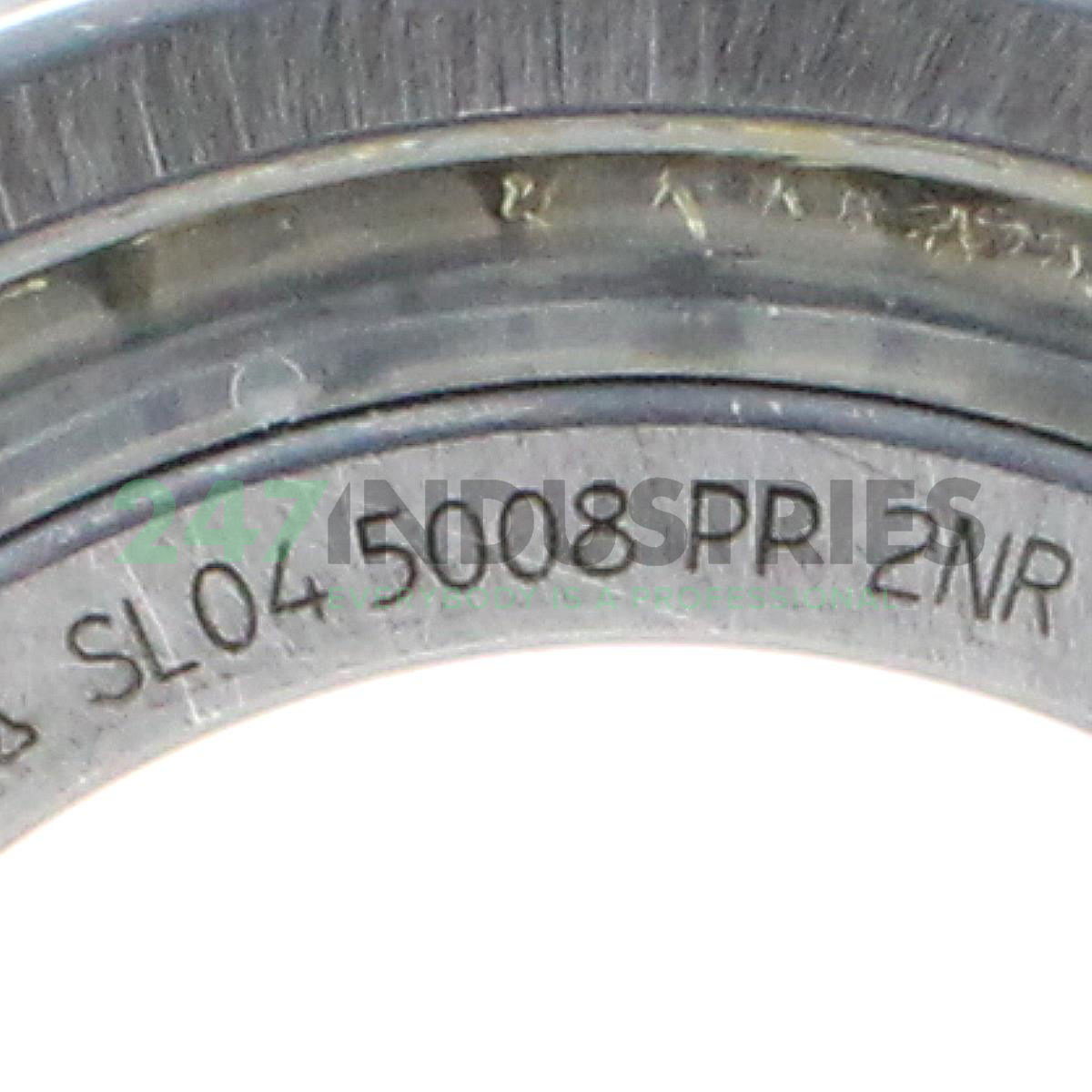

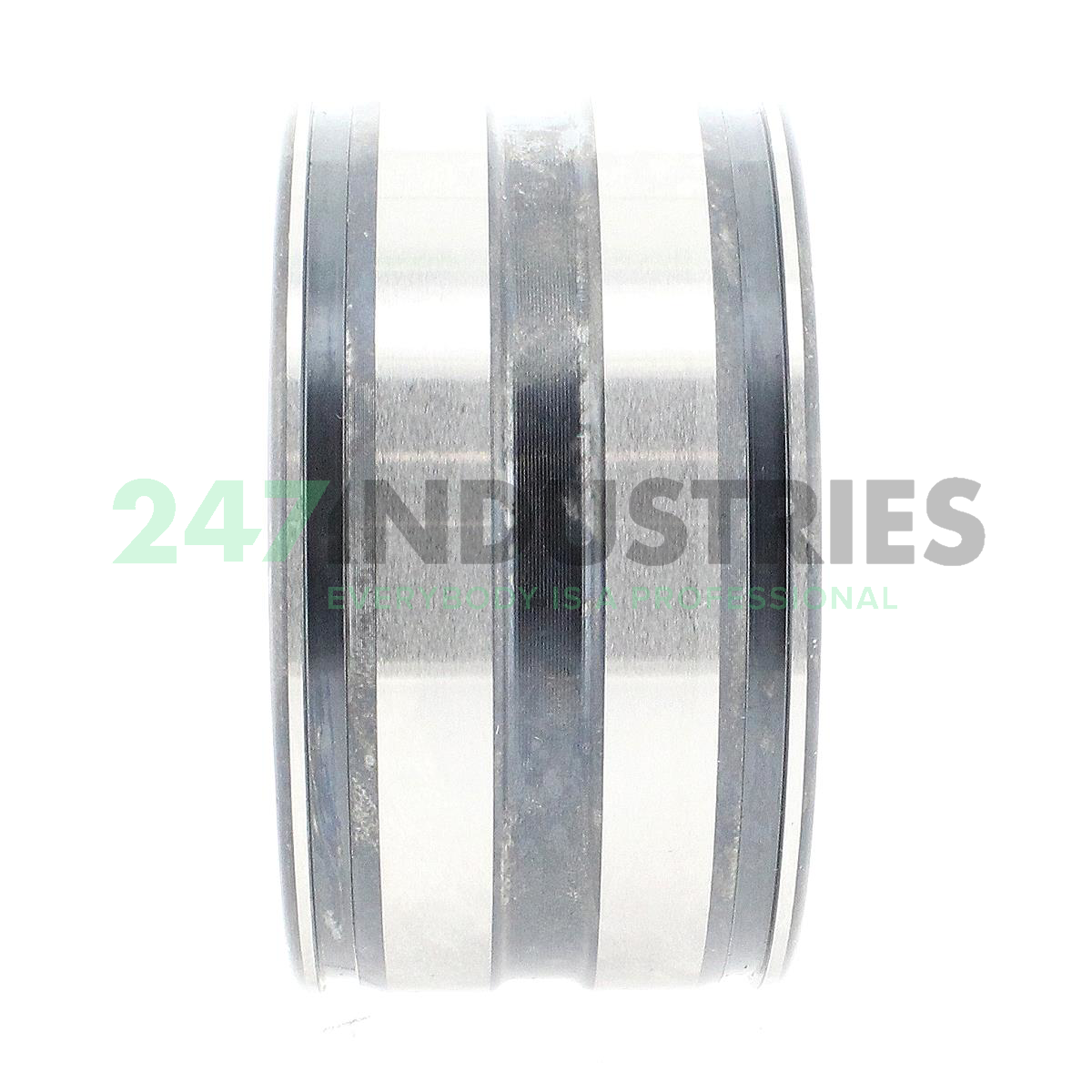

SL045008-PP-2NR INA

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 68,00
3. Width (B) MM 38,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.4961
7. Width (b) mm 38,00

Suffix description

1. PP Lip Seals On Both Sides Of The Bearing

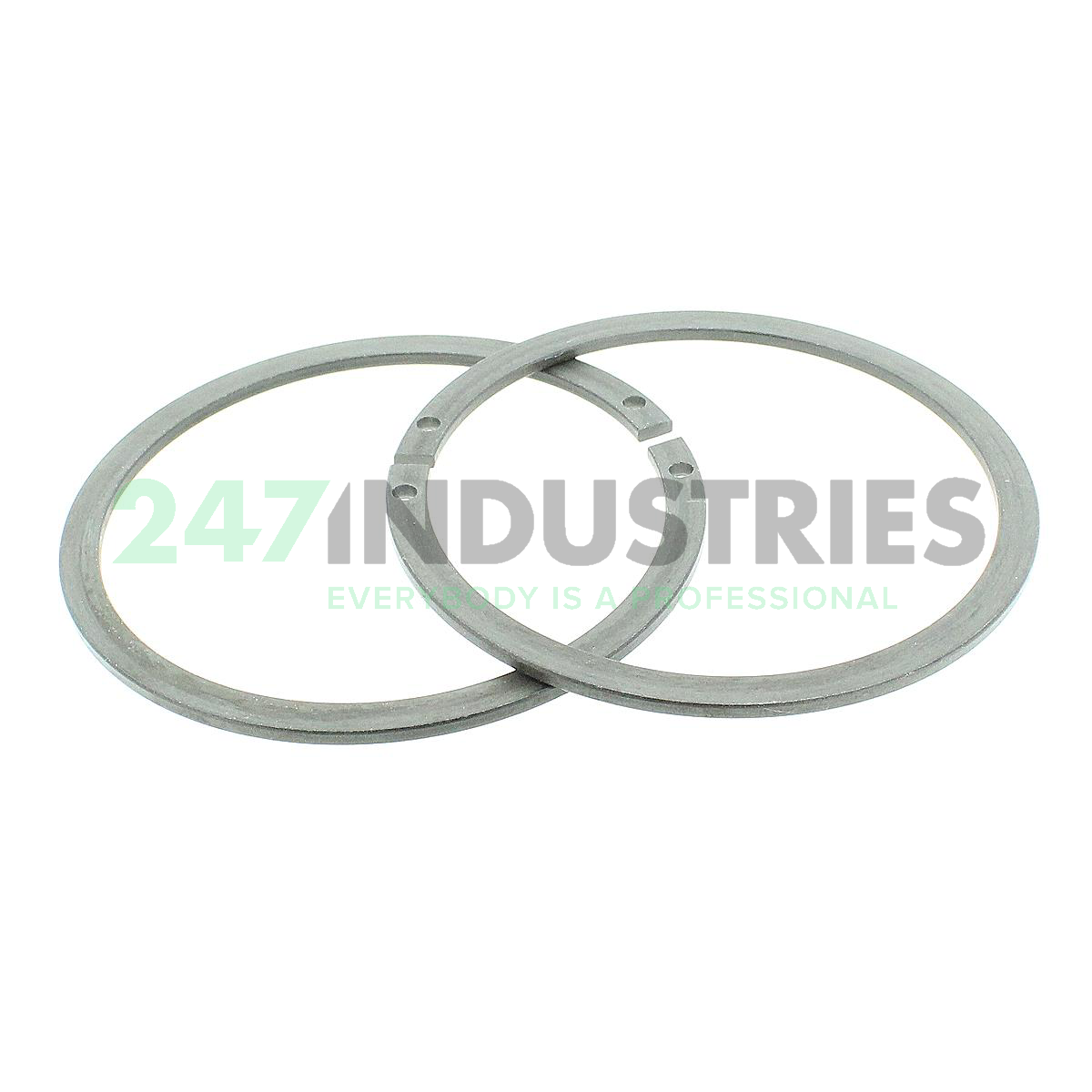

2. 2NR Supplied With Two Loose-Packed Retaining Rings WRE

Technical details

1. Availability 55 pcs
2. Brand INA
3. Item number SL045008-PP-2NR INA
4. Also known as 0014088600000
   NNF5008ADB-2LSV

5. EAN 4012802725209
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.5286

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 111000
2. Radial Dynamic Load Rating Cr (N) 80000
3. Basic static load rating, radial (C 0r) "111000.0000"
4. Limiting speed for grease lubrication (n G Grease) "3150.0000"
5. ECLASS number 23-05-09-01
6. ECLASS2 number 23-05-09-01
7. Medias description Cylindrical roller bearing SL04..-PP-2NR, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
