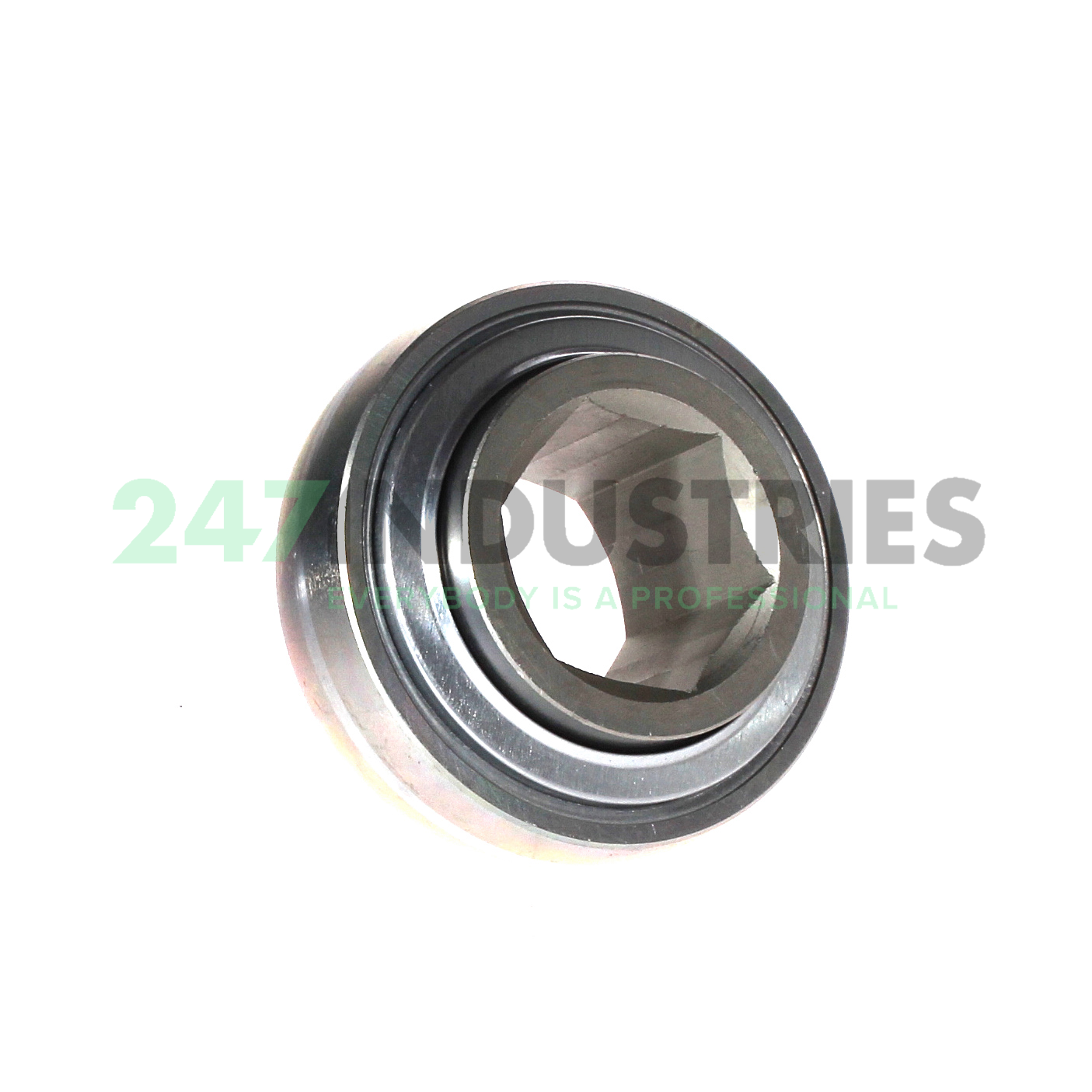

SK104-207-KTT-B INA

All dimensions

1. Inner (d) MM 31,75
2. Outer (D) MM 72
3. Width (B) MM 25
4. Inner (d) Inch 1.25
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.9843
7. Outside diameter (D SP) mm 72
8. Width (b) mm 37,9

Suffix description

1. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)
2. B Bearing With Spherical Outer Ring

Technical details

1. Availability 46 pcs
2. Brand INA
3. Item number SK104-207-KTT-B INA
4. Also known as 0503023610000

5. EAN 4047643215459
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.4832

Product Properties

1. Seal 2T - Two T-seals
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01

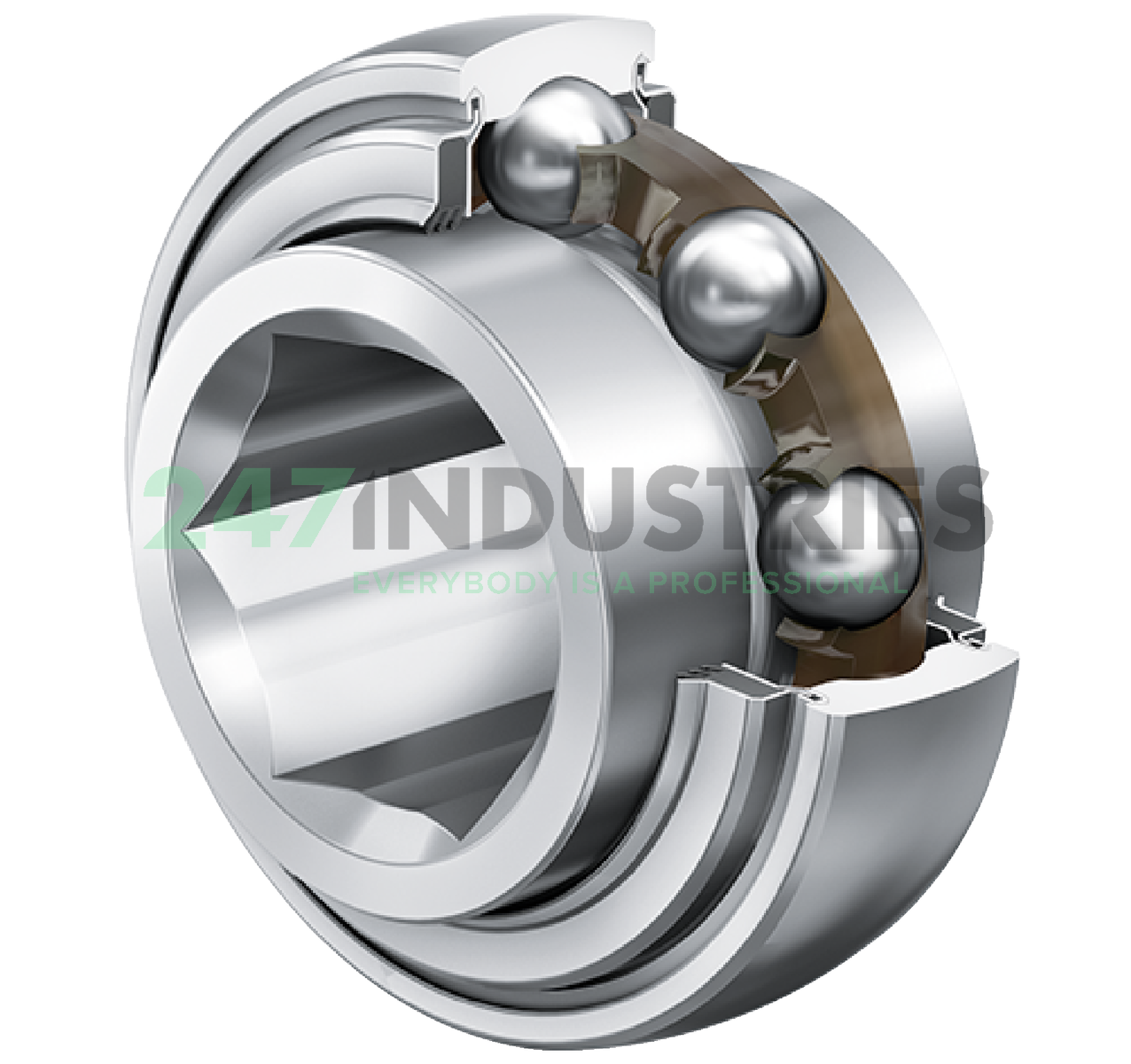

5. Medias description Self-aligning deep groove ball bearings SK..-KTT-B, Spherical outer ring, inner ring with hexagonal bore, T seal on both sides
