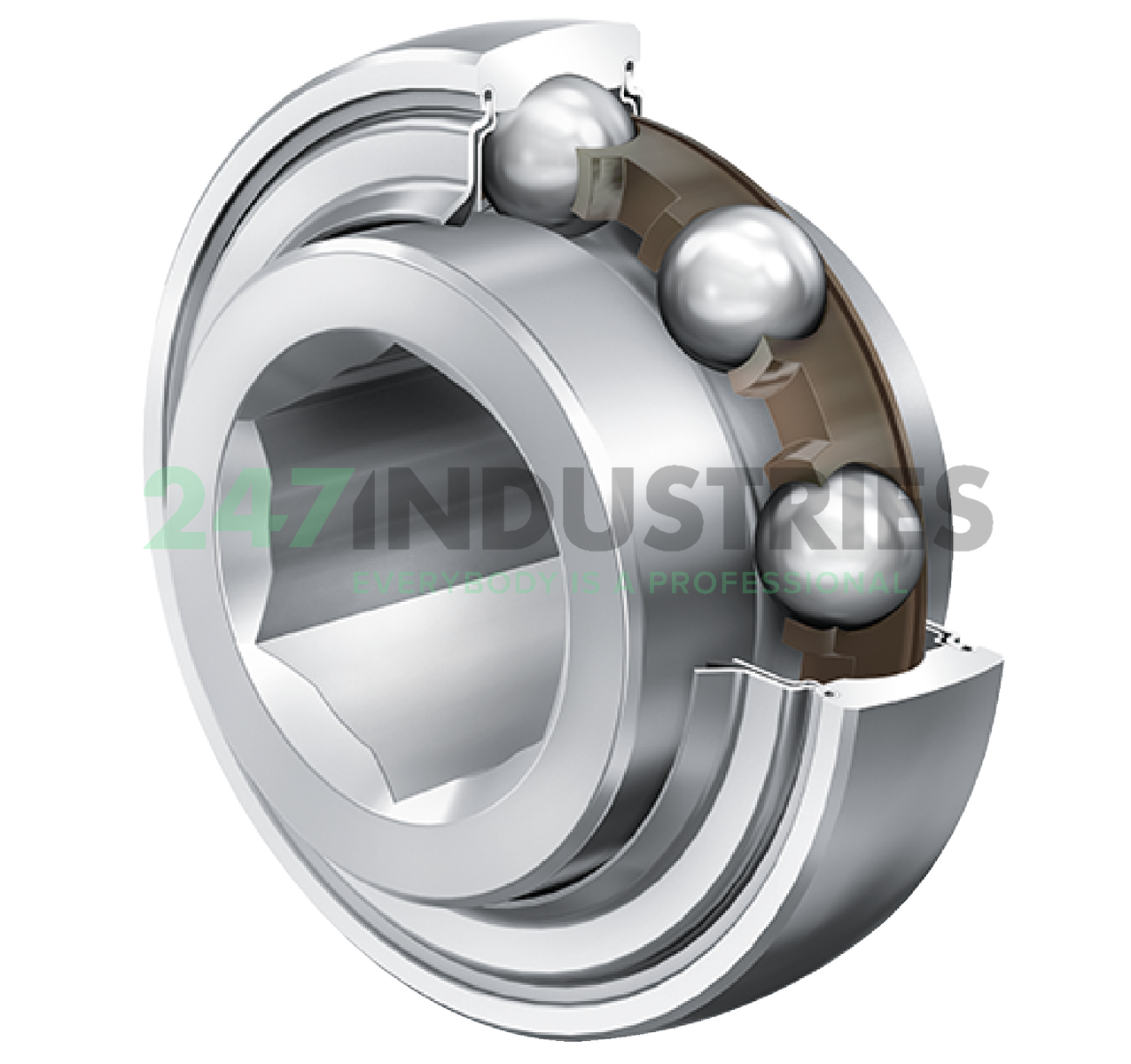

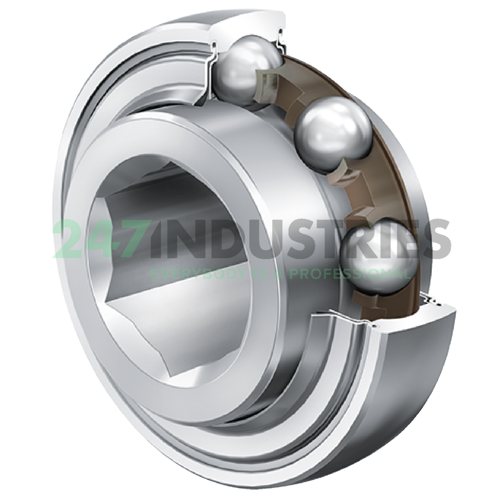

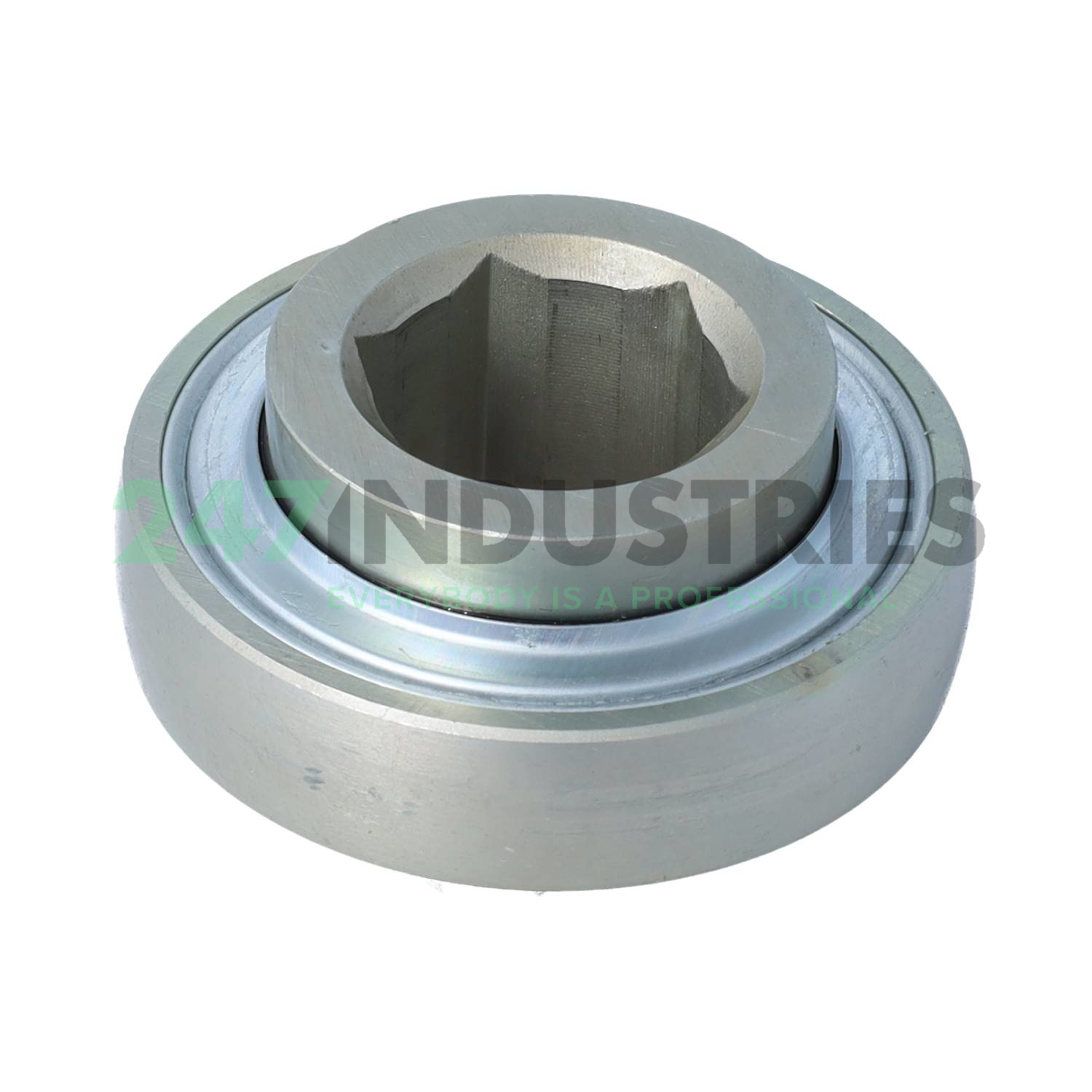

SK102-207-KRR-B-AH10 INA

All dimensions

1. Inner (d) MM 28,58
2. Outer (D) MM 72,00
3. Width (B) MM 37,70
4. Inner (d) Inch 1.1250
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.4843
7. Outside diameter (D SP) mm 72,00
8. Width (b) mm 37,70

Suffix description

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
2. B Bearing With Spherical Outer Ring
3. AH10

Technical details

1. Availability 14 pcs
2. Brand INA
3. Item number SK102-207-KRR-B-AH10 INA
4. Also known as 0504200200000

5. EAN 4054366694775
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.45

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "15300.0000"
2. ECLASS number 23-05-08-01
3. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
