SFLE8 Unibal

Rod end

Stock
not in stock
Brand Unibal
Article number SFLE8 Unibal
Inside diameter 8mm
Outside diameter 22mm
Width 12mm
Product description

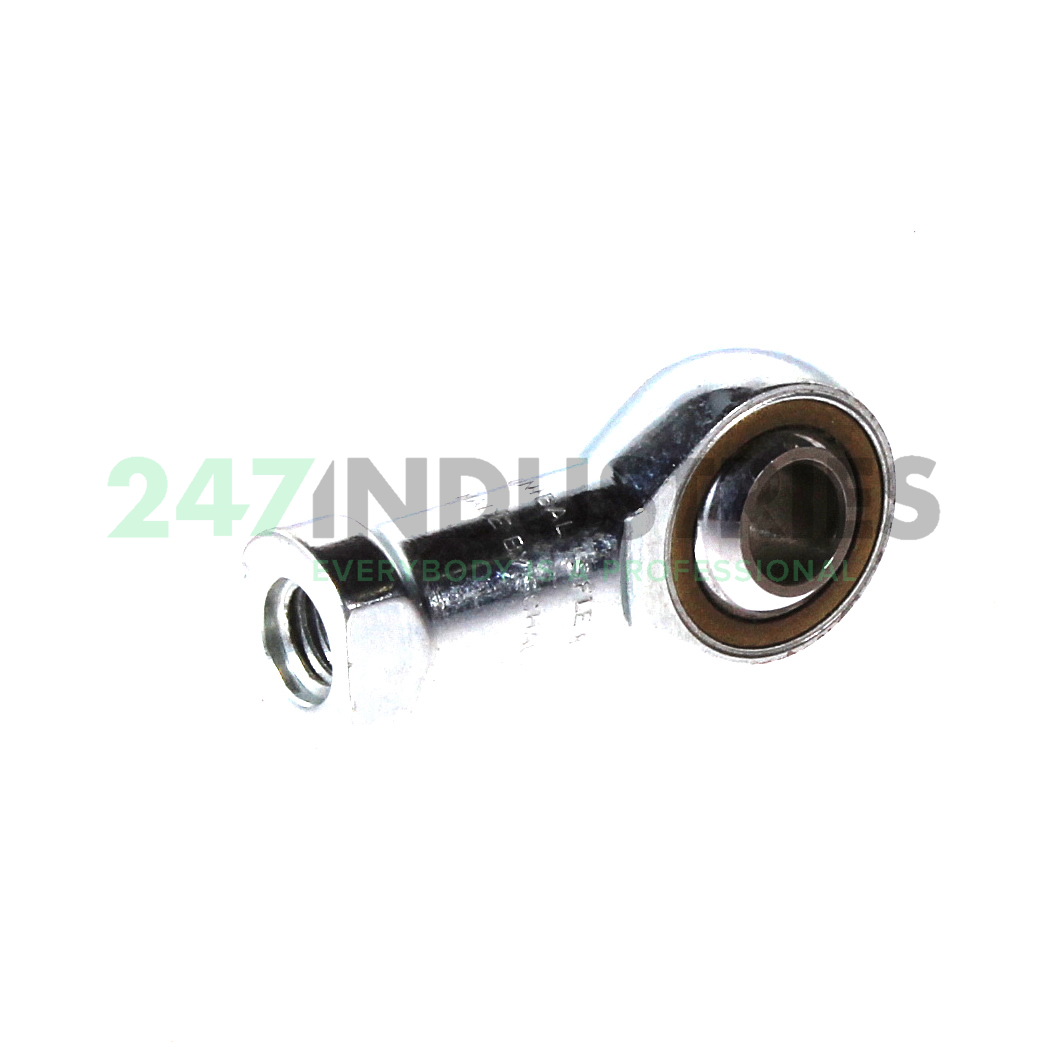

The SFLE8 Unibal is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The SFLE8 Unibal has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Help with this product

Similar to: SFLE8 Unibal

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 8
  2. Outer (D) MM 22
  3. Width (B) MM 12
  4. Inner (d) Inch 0.315
  5. Outer (D) Inch 0.8661
  6. Width (B) Inch 0.4724

Technical details

  1. Availability 0 pcs
  2. Brand Unibal
  3. Item number SFLE8 Unibal
  4. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.0404

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel
