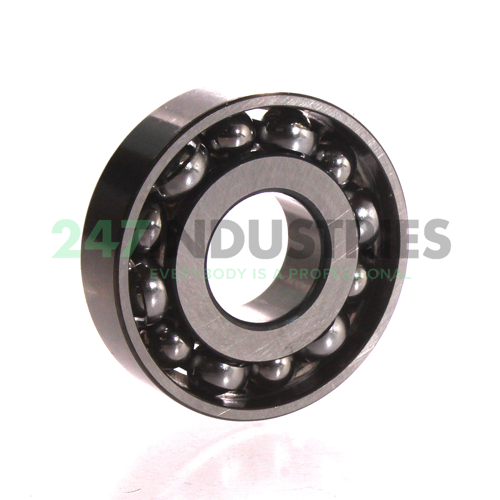

SF06A24 NTN

All dimensions

1. Inner (d) MM 28
2. Outer (D) MM 72
3. Width (B) MM 18
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.7087

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number SF06A24 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.33

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision Standard Precision
4. Contact Angle Standard Contact Angle
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
