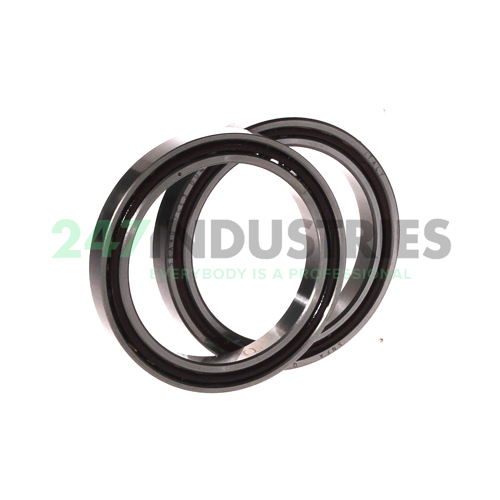

SEA40 7CE3 DUM SNFA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 52
3. Width (B) MM 14
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.5512

Suffix description

1. 7 P4 (SKF)=Abec.7
2. C Phenolic Resin Cage
3. E External Located
4. 3 ACD (SKF)=25° Contact Angle
5. DU Two Bearings For Universal Matching
6. M Moderate Preload (For Symmetrical Sets Only)

Technical details

1. Availability 1 pc
2. Brand SNFA
3. Item number SEA40 7CE3 DUM SNFA
4. Also known as B71808-C-TPA-P4-UM

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.06

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DM - 2 Univ Bearings Medium Pre
7. Lubrication Standard Lubrication
