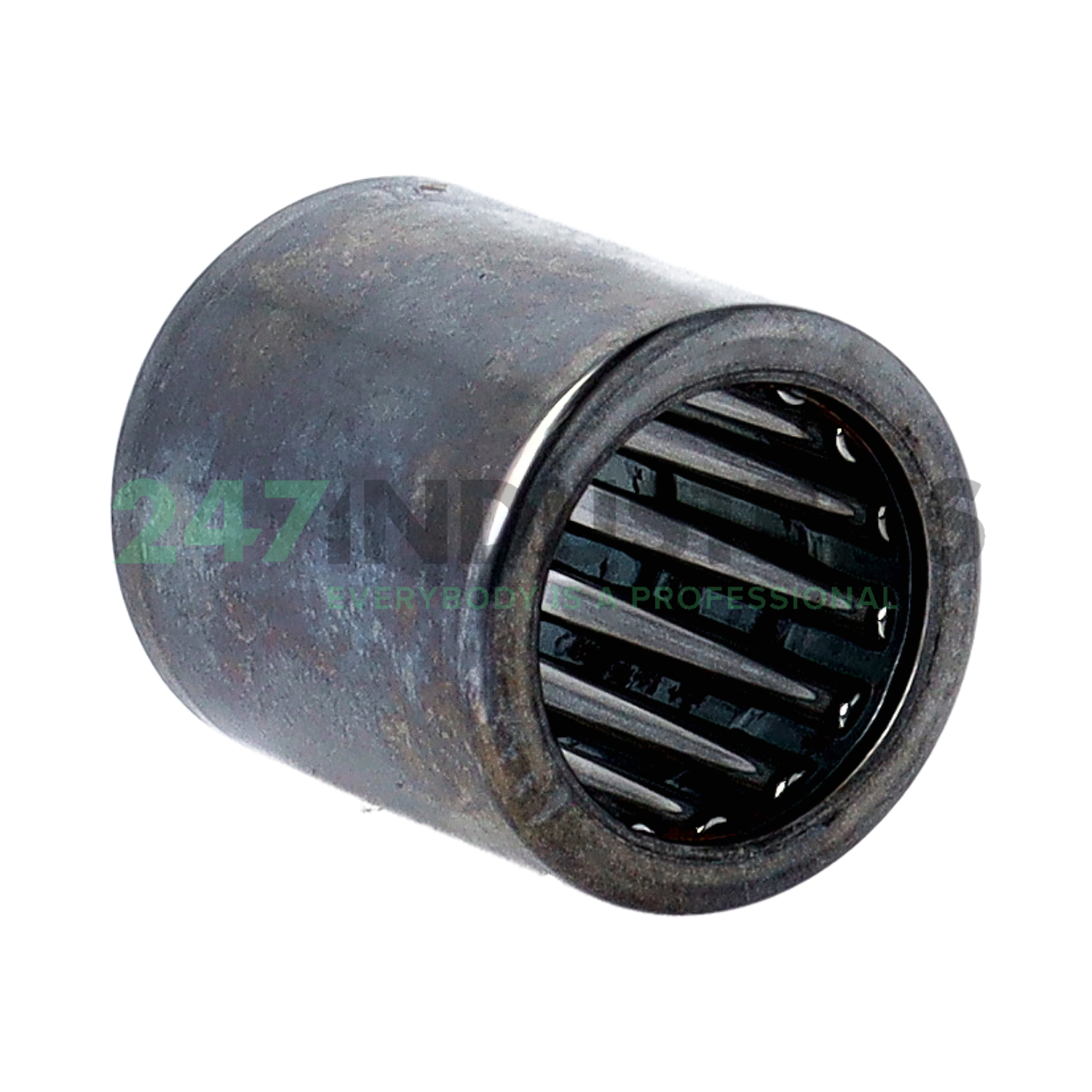

SCH1016 INA

All dimensions

1. Inner (d) MM 15,875
2. Outer (D) MM 22,225
3. Width (B) MM 25,4
4. Inner (d) Inch 0.625
5. Outer (D) Inch 0.875
6. Width (B) Inch 1
7. Under roller diameter (F w) mm 15,875
8. Width (C) mm 25,4

Suffix description

1. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 41 pcs
2. Brand INA
3. Item number SCH1016 INA
4. Also known as 0060113060000

5. EAN 4047643193542
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.025

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 28000
2. Limiting speed (n G) 15300
3. ECLASS number 23-05-09-05
4. ECLASS2 number 23-05-09-05

Downloads and links

1. Link to manufacturer Link to manufacturer
