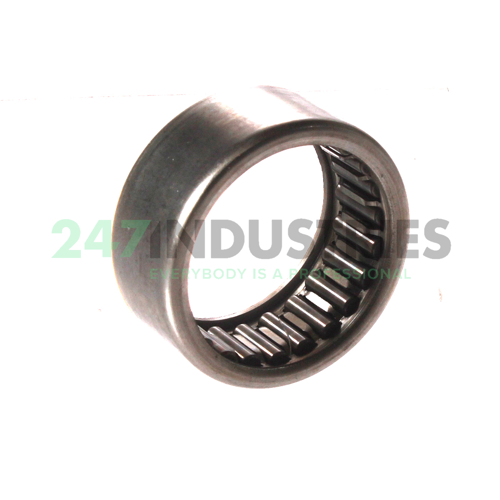

SCE148UH INA

All dimensions

1. Inner (d) MM 22,225
2. Outer (D) MM 28,575
3. Width (B) MM 12,7
4. Inner (d) Inch 0.875
5. Outer (D) Inch 1.125
6. Width (B) Inch 0.5
7. Under roller diameter (F w) mm 22,225
8. Width (C) mm 12,7

Suffix description

1. UH Unknown

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number SCE148UH INA
4. Also known as 0060092630000

5. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0156

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 15800
2. Limiting speed (n G) 11400
3. Limiting speed for grease lubrication (n G Grease) 6800
4. Reference speed (n ϑr) 8500
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05
