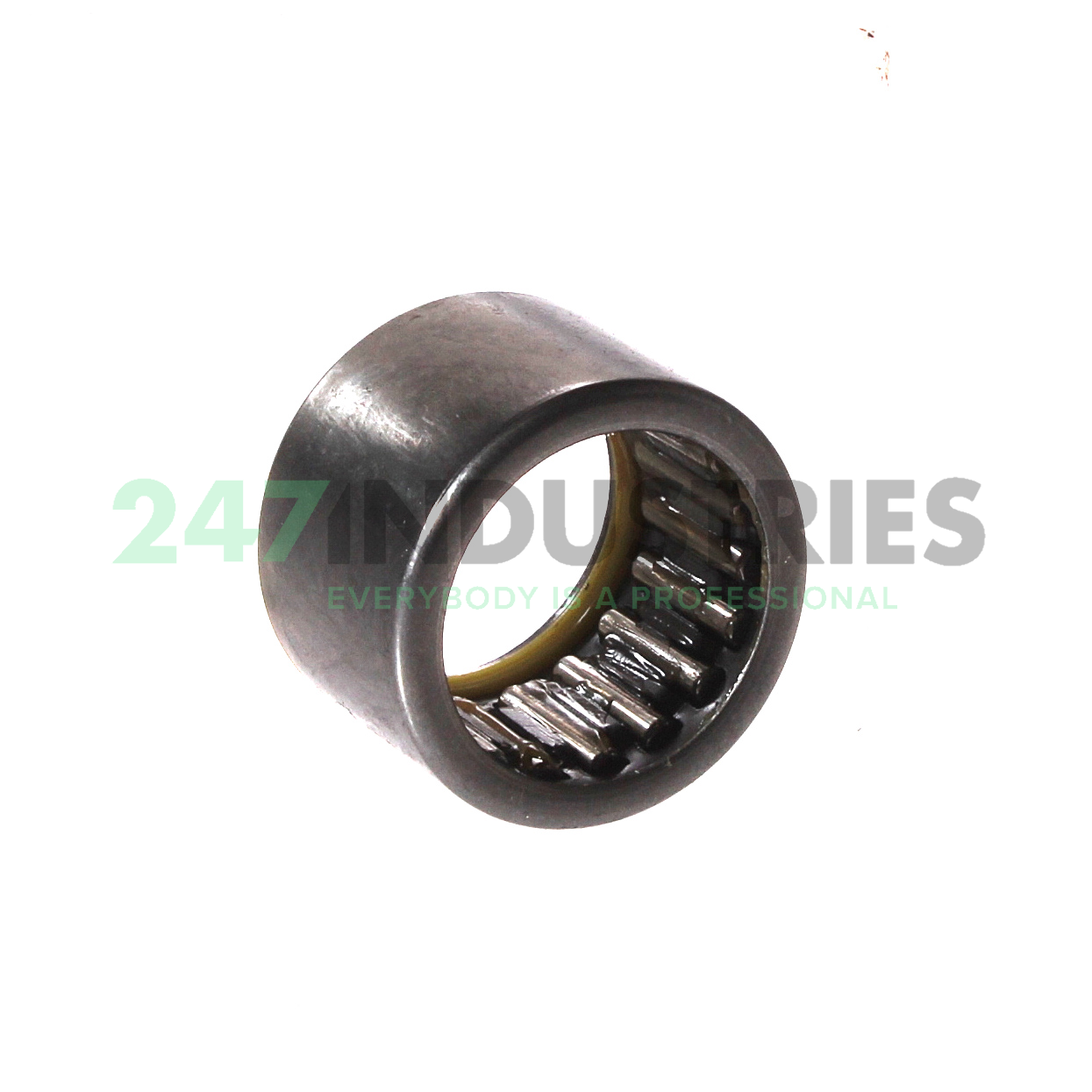

SCE1211-P-L271/STD INA

All dimensions

1. Inner (d) MM 19,05
2. Outer (D) MM 25,40
3. Width (B) MM 17,46
4. Inner (d) Inch 0.7500
5. Outer (D) Inch 1.0000
6. Width (B) Inch 0.6875
7. Under roller diameter (F w) mm 19,05
8. Width (C) mm 17,46

Suffix description

1. P Lip Seal On One Side Of Bearing
2. L271 Anti Wear Protection Grease
3. STD Standard Fill

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number SCE1211-P-L271/STD INA
4. Also known as 0060089840702
   SCE1211
   SCE1211-P

5. EAN 4012802069655
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.022

Product Properties

1. Seal L - LS-seal at One Side

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "17500.0000"
2. Limiting speed (n G) "13100.0000"
3. ECLASS number 23-05-09-05
4. ECLASS2 number 23-05-09-05
