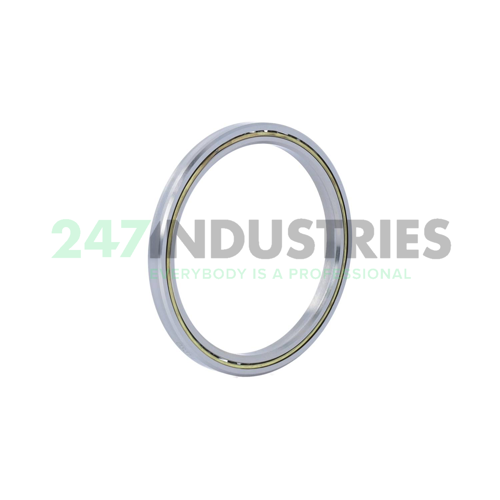

SA025XPO Kaydon

All dimensions

1. Inner (d) MM 63,5
2. Outer (D) MM 76,2
3. Width (B) MM 6,35
4. Inner (d) Inch 2.5
5. Outer (D) Inch 3
6. Width (B) Inch 0.25

Suffix description

1. X Four-Point Contact
2. P Standard Formed Ring “Snap-Over” Type (Material—Brass Or Non-Metallic Composite)
3. O KAYDON Precision Class 1 Per ABEC 1F

Technical details

1. Availability 1 pc
2. Brand Kaydon
3. Item number SA025XPO Kaydon
4. Also known as CSXA025
   FPXA208
   KA025XP0
   KA025XPO
   L18QA208
   NBX6306

5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.06

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard
