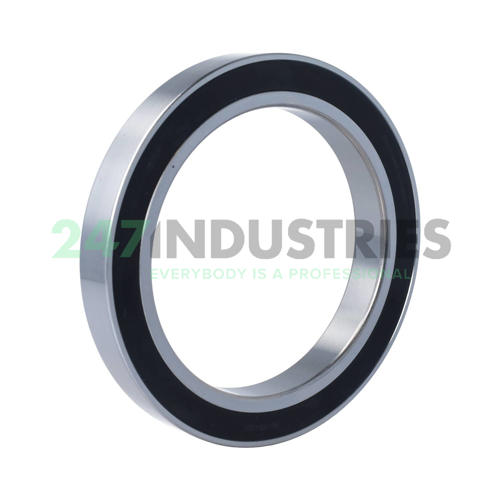

S71922ACDGA/P4A SKF

All dimensions

1. Inner (d) MM 110,00
2. Outer (D) MM 150,00
3. Width (B) MM 20,00
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 5.9055
6. Width (B) Inch 0.7874

Suffix description

1. ACD 25° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number S71922ACDGA/P4A SKF
4. Also known as B71922-E-2RSD-T-P4S-UL

5. EAN 7316571884851
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.86

Product Properties

1. Seal 2RL - Low Friction NBR-seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
