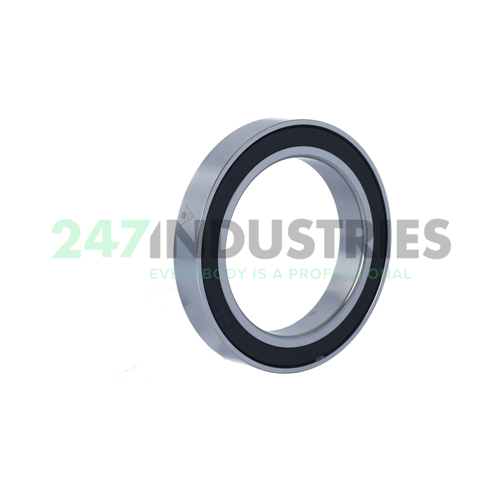

S71914CEGA/HCP4A SKF

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 100,00
3. Width (B) MM 16,00

Suffix description

1. CE 15° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number S71914CEGA/HCP4A SKF
4. Also known as 2MMVC9314HX VV SUL
   5S-2LA-HSE914C LLB G/GL P
   70BNC19SN24TRV1VLP3
   CZSB1914HCRRUL
   HCS71914C.T.P4S.UL
   VEB70/S/NS 7CE1 UL

5. EAN 7316576008023
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.28

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
