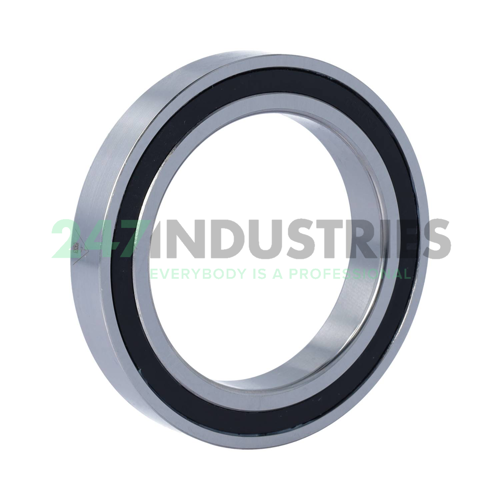

S71914ACBGA/HCP4A SKF

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 100,00
3. Width (B) MM 16,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.6299

Suffix description

1. ACB 25° Contact Angle, High-Speed B Design
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number S71914ACBGA/HCP4A SKF
4. Also known as HC71914E.2RSD.T.P4S.UL
   HC71914-E-2RSD-T-P4S-UL

5. EAN 7316574504350
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.34

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 25 degrees (ACB) - 25° Contact High Speed B Desig
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
