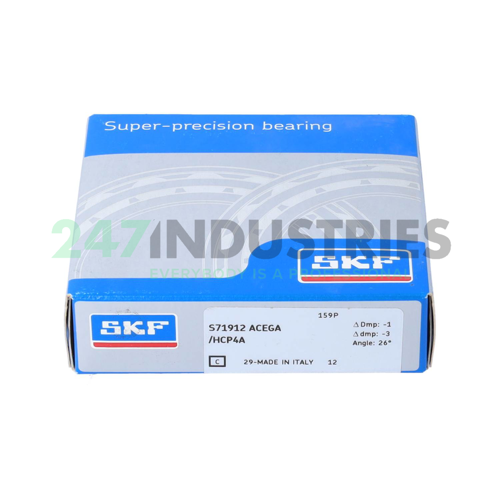

S71912ACEGA/HCP4A SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 85
3. Width (B) MM 13
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.5118

Suffix description

1. ACE 25° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number S71912ACEGA/HCP4A SKF
4. Also known as 3MMVC9312HX VV SUL
   5S-2LA-HSE912AD LLB G/GL
   CZSB1912HERRUL
   HCS71912E.T.P4S.UL
   VEB60/S/NS 7CE3 UL

5. EAN 7316576006623
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 25° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
