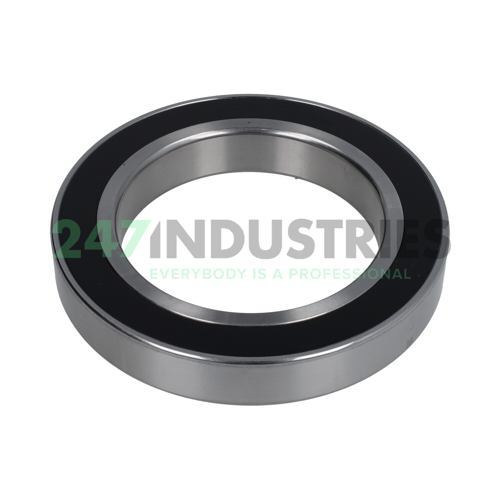

S7020CDGA/VQ6481 SKF

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 150
3. Width (B) MM 24
4. Inner (d) Inch 3.937
5. Outer (D) Inch 5.9055
6. Width (B) Inch 0.9449

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. VQ6481 Deviations In Quality, Dimensions, Accuracy, Vibration Etc

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number S7020CDGA/VQ6481 SKF
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.273

Product Properties

1. Seal 2RL - Low Friction NBR-seal
2. Cage Type TB - Hard Fiber Cage
3. Precision VQ - Dimensional And/Or Accuracy
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
