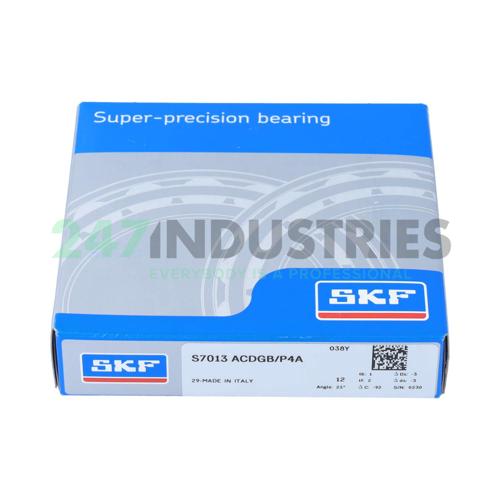

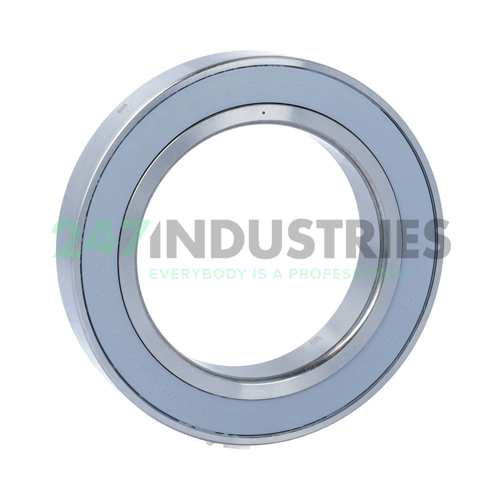

S7013ACDGB/P4A SKF

All dimensions

1. Inner (d) MM 65,00
2. Outer (D) MM 100,00
3. Width (B) MM 18,00
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.7087

Suffix description

1. ACD 25° Contact Angle
2. GB Bearing For Paired Mounting In Random Order; When Arranged Back-To-Back Or Face-To-Face There Will Be A Moderate Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number S7013ACDGB/P4A SKF
4. EAN 7316572243756
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.433

Product Properties

1. Seal 2RL - Low Friction NBR-seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
