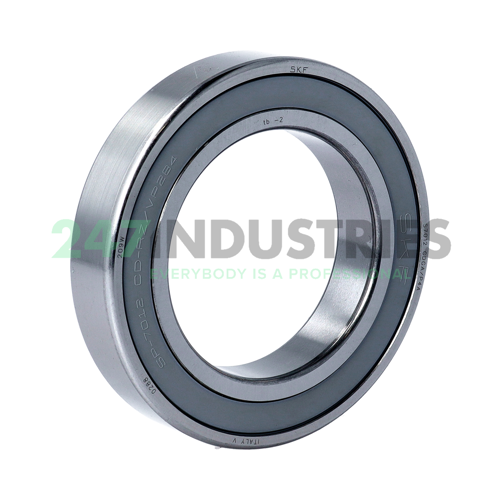

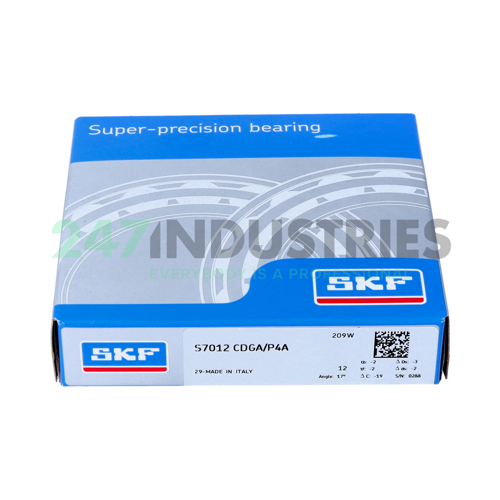

S7012CDGA/P4A SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 95
3. Width (B) MM 18
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.7087

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number S7012CDGA/P4A SKF
4. Also known as B7012C.2RSD.T.P4S.UL
   B7012-C-2RSD-T-P4S-UL

5. EAN 7316571891859
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.408

Product Properties

1. Seal 2RL - Low Friction NBR-seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
