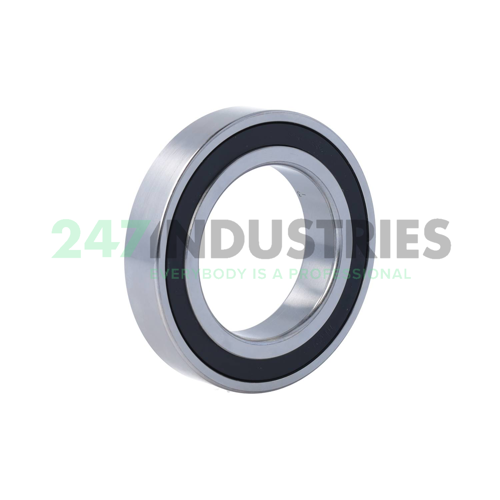

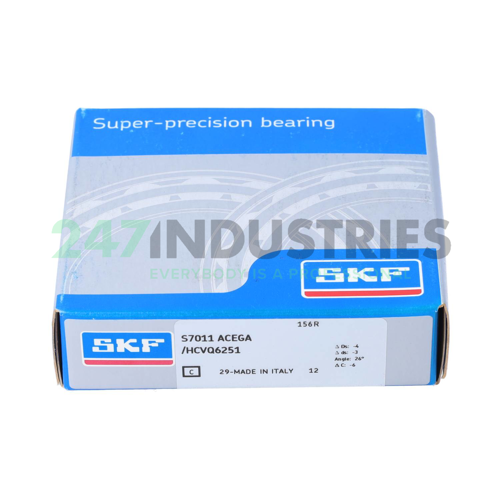

S7011ACEGA/HCVQ6251 SKF

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 90
3. Width (B) MM 18
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.7087

Suffix description

1. ACE 25° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. VQ6251 (VQ625 & VK358)
5. VQ625 Tighter Ring Width Tolerance (+0.000 To -0.025mm For Both Inner And Outer Ring.)
6. VK358 Special Marking, Outer Ring Width Deviation From Nominal Value Listed On Bearing And Packaging

Technical details

1. Availability 40 pcs
2. Brand SKF
3. Item number S7011ACEGA/HCVQ6251 SKF
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.374

Product Properties

1. Seal 2RL - Low Friction NBR-seal
2. Cage Type TB - Hard Fiber Cage
3. Precision HC - Full Ceramic Bearing
4. Contact Angle 25° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
