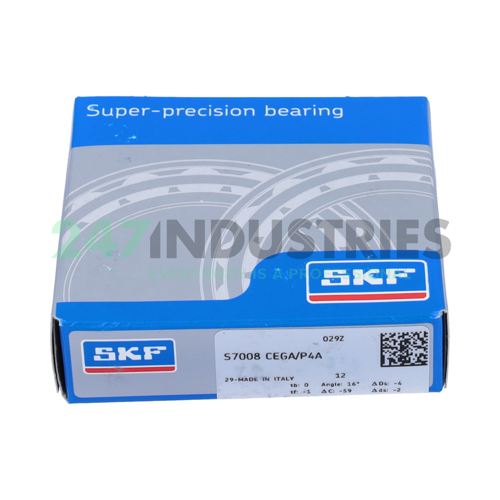

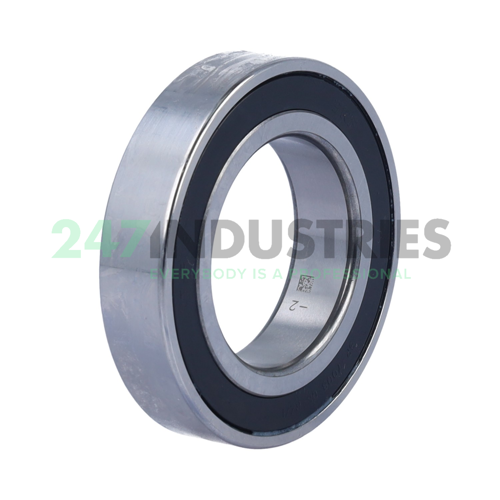

S7008CEGA/P4A SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906

Suffix description

1. CE 15° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 4 pcs on Mon 13 Apr
2. Brand SKF
3. Item number S7008CEGA/P4A SKF
4. Also known as 2MMV9108HX VV SUL
   40BNC10TRV1VLP3
   HSS7008C.T.P4S.UL
   VEX40/S 7CE1 UL
   ZSB108HCRRUL

5. EAN 7316574518067
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.17

Product Properties

1. Seal 2RL - Low Friction NBR-seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
