S6307-2RSR-FD FAG

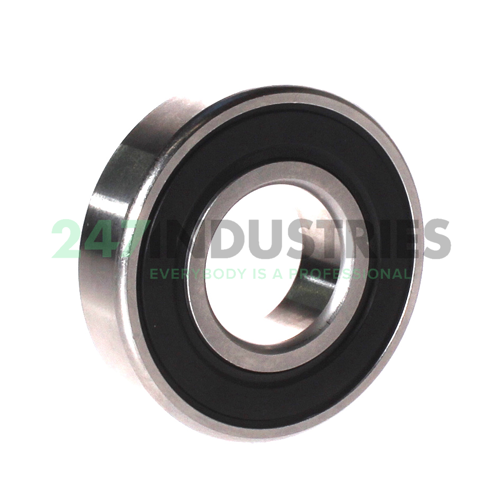

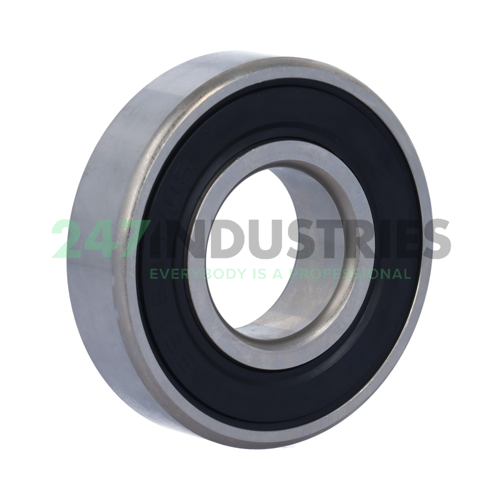

Stainless steel ball bearing with double-sided seal

Stock
25 pcs available for shipment on Thu 3 Jul
Brand FAG
Article number S6307-2RSR-FD FAG
Inside diameter 35mm
Outside diameter 80mm
Width 21mm
Product description

The S6307-2RSR-FD FAG is a stainless steel deep groove ball bearing. Stainless steel is highly corrosion-resistant. This makes stainless steel bearings suitable for environments where the presence of moisture or chemicals is a factor. These environments include the food industry, and pharmaceutical- and chemical applications. Moreover, stainless steel can withstand relatively high temperatures. However, stainless steel bearings do have slightly lower load carrying capacities compared to chrome-steel bearings.

Other than that, the characteristics of the S6307-2RSR-FD FAG are similar to those of standard chrome-steel deep groove ball bearings. Like all single-row deep groove ball bearings, they are of simple and sturdy design. They are practically maintenance-free. Deep groove ball bearings are especially suitable for accommodating radial loads. To a lesser extent, they can also be axially loaded in both directions.

Help with this product

Downloads and links

Similar to: S6307-2RSR-FD FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 80
  3. Width (B) MM 21
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 0.8268
  7. Width (b) mm 21

Suffix description

  1. 2RSR Rubber Seals At Each Side Of The Bearing
  2. FD Bearing Designed For Food Industry. Significantly Higher Corrosion And Media Resistance

Technical details

  1. Availability 25 pcs on Thu 3 Jul
  2. Brand FAG
  3. Item number S6307-2RSR-FD FAG
  4. Also known as 0947141770000
    S6307-2RSR
    W6307-2RS1
    W6307-2RS1/VP311
  5. EAN 4054372432910
  6. Category Stainless Steel Ball Bearings

Weight and Dimensions

  1. Weight (kg) 0.457

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Food Grease
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 15400
  2. Radial Dynamic Load Rating Cr (N) 28300
  3. Limiting speed (n G) 3600
  4. ECLASS number 23-05-08-01
  5. ECLASS2 number 23-05-08-01
  6. Medias description main dimensions to DIN 625-1, corrosion resistant materials, lip seals on both sides, food-grade grease, FD design
