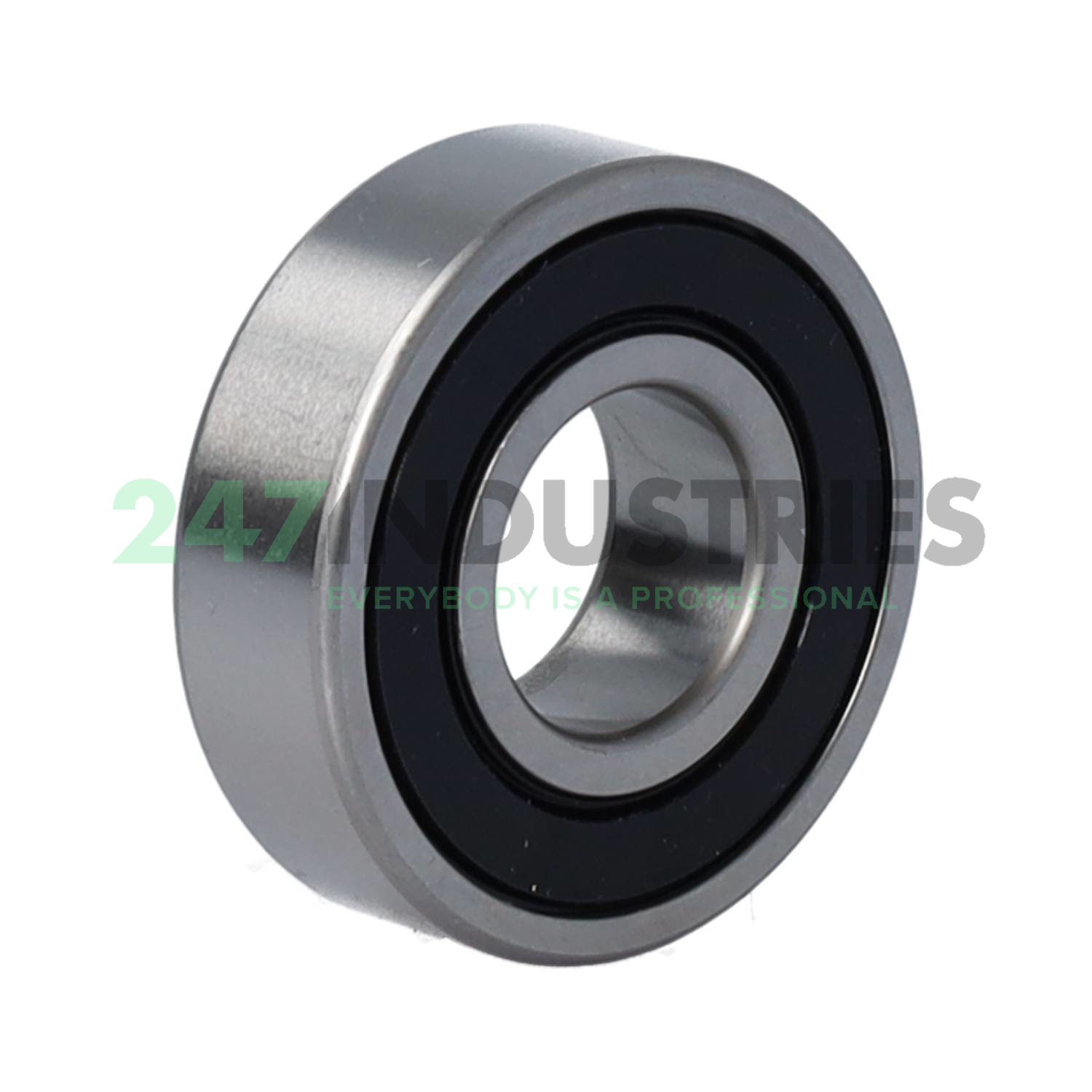

S6203-2RS-FD FAG

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.4724

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. FD Bearing Designed For Food Industry. Significantly Higher Corrosion And Media Resistance

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number S6203-2RS-FD FAG
4. Also known as 0977004010000
   W6203-2RS1/VP311

5. EAN 4064328257191
6. Category Stainless Steel Ball Bearings

Weight and Dimensions

1. Weight (kg) 0.062

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Food Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Downloads and links

1. Link to manufacturer Link to manufacturer
