S6200-HLC FAG

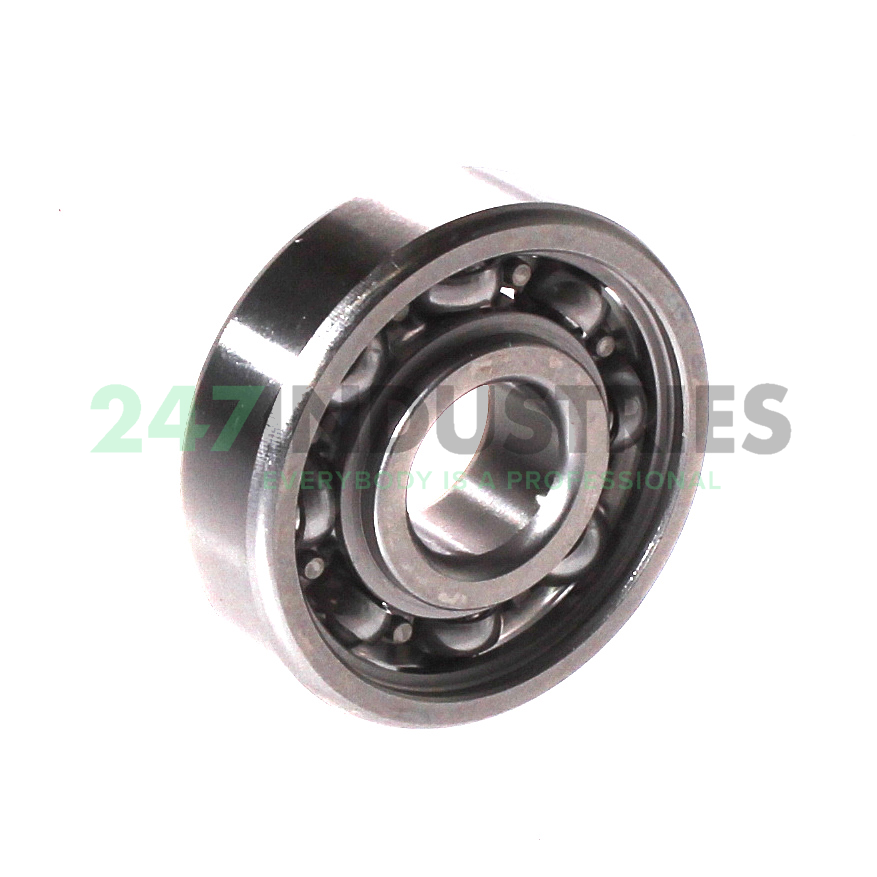

Stainless steel ball bearing without seal 10 mm

Stock
242 pcs in stock and ready for shipment
Brand FAG
Article number S6200-HLC FAG
Inside diameter 10,00mm
Outside diameter 30,00mm
Width 9,00mm
Product description

The S6200-HLC FAG is a stainless steel deep groove ball bearing. Stainless steel is highly corrosion-resistant. This makes stainless steel bearings suitable for environments where the presence of moisture or chemicals is a factor. These environments include the food industry, and pharmaceutical- and chemical applications. Moreover, stainless steel can withstand relatively high temperatures. However, stainless steel bearings do have slightly lower load carrying capacities compared to chrome-steel bearings.

Other than that, the characteristics of the S6200-HLC FAG are similar to those of standard chrome-steel deep groove ball bearings. Like all single-row deep groove ball bearings, they are of simple and sturdy design. They are practically maintenance-free. Deep groove ball bearings are especially suitable for accommodating radial loads. To a lesser extent, they can also be axially loaded in both directions.

Read more Show less
Help with this product

Downloads and links

Similar to: S6200-HLC FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 10,00
  2. Outer (D) MM 30,00
  3. Width (B) MM 9,00
  4. Inner (d) Inch 0.3937
  5. Outer (D) Inch 1.1811
  6. Width (B) Inch 0.3543
  7. Width (b) mm 9,00

Suffix description

  1. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

  1. Availability 242 pcs
  2. Brand FAG
  3. Item number S6200-HLC FAG
  4. Also known as 0539697070000
    W6200
  5. EAN 4012802228113
  6. Category Stainless Steel Ball Bearings

Weight and Dimensions

  1. Weight (kg) 0.032

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) "1910.0000"
  2. Limiting speed (n G) "37500.0000"
  3. Reference speed (n ϑr) "22500.0000"
  4. ECLASS number 23-05-08-01
  5. ECLASS2 number 23-05-08-01
