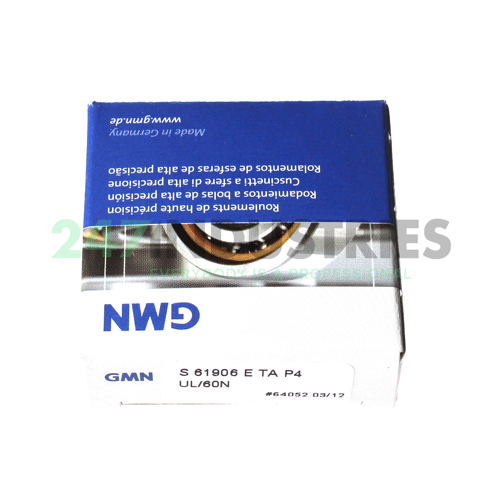

S61906E TA P4 UL GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 9
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.3543

Suffix description

1. E 25° Contact Angle
2. TA Laminated Phenolic Resin Cage Or Polyamide Cage Guided On Outer Ring
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7
4. UL Single Bearing, Universally Ground, Light Preload

Technical details

1. Availability 120 pcs
2. Brand GMN Paul Müller Industrie
3. Item number S61906E TA P4 UL GMN Paul Müller Industrie
4. Also known as 71906ACDGA/P4A
   7906E T SUL P4

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.048

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
