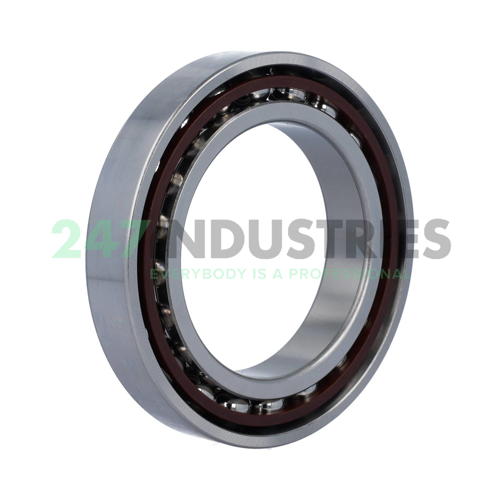

S6018C TA P4 UL GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 140
3. Width (B) MM 24
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 5.5118
6. Width (B) Inch 0.9449

Suffix description

1. C 15° Contact Angle
2. TA Laminated Phenolic Resin Cage Or Polyamide Cage Guided On Outer Ring
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7
4. UL Universal Matching - Light Preload

Technical details

1. Availability 85 pcs
2. Brand GMN Paul Müller Industrie
3. Item number S6018C TA P4 UL GMN Paul Müller Industrie
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.15

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
