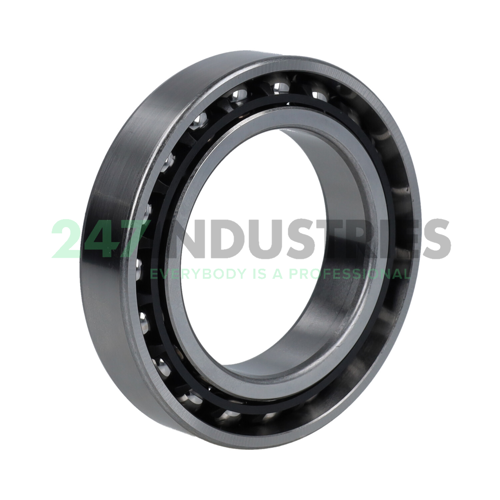

S6010C TXM P4 UL GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 80
3. Width (B) MM 16
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.6299

Suffix description

1. C 15° Contact Angle
2. TXM Polyetheretherketone (PEEK) Thermoplast, Moulded Carbon Fibre Reinforced +250°
3. P4 Tolerance Class ABEC 7 According To ABMA
4. UL Universally Ground, Light Preload

Technical details

1. Availability 1 pc
2. Brand GMN Paul Müller Industrie
3. Item number S6010C TXM P4 UL GMN Paul Müller Industrie
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.25

Product Properties

1. Seal No Seal
2. Cage Type PH - PEEK Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
