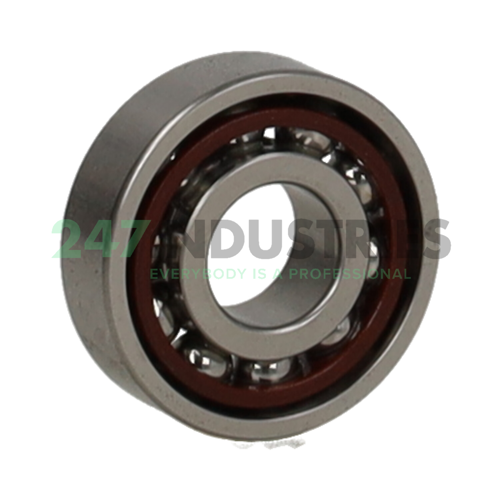

S6000C TA P4 GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 26
3. Width (B) MM 8
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.315

Suffix description

1. C 15° Contact Angle
2. TA Laminated Phenolic Resin Cage Or Polyamide Cage Guided On Outer Ring
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7

Technical details

1. Availability 7 pcs
2. Brand GMN Paul Müller Industrie
3. Item number S6000C TA P4 GMN Paul Müller Industrie
4. Also known as 7000CD/P4A
   B7000-C-T-P4S

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
