RSL182217-A INA

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 133,21
3. Width (B) MM 36
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.2445
6. Width (B) Inch 1.4173
7. E w mm 133,21
8. Width (b) mm 36

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number RSL182217-A INA
4. Also known as 0000588310000

5. EAN 4012802421804
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.61

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 320000
2. Radial Dynamic Load Rating Cr (N) 255000
3. Limiting speed (n G) 2850
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01

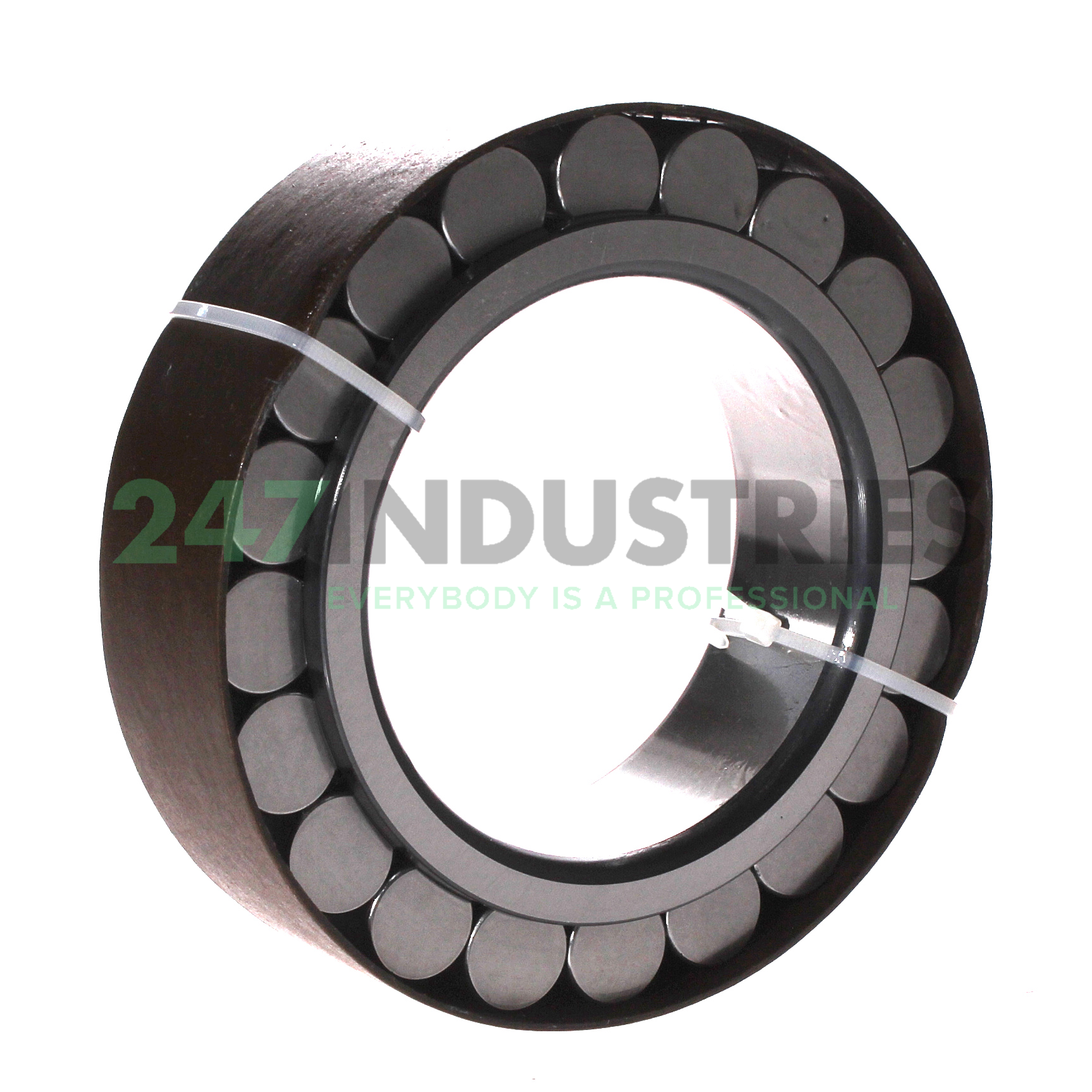

6. Medias description Cylindrical roller bearing RSL18, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18

Downloads and links

1. Link to manufacturer Link to manufacturer
