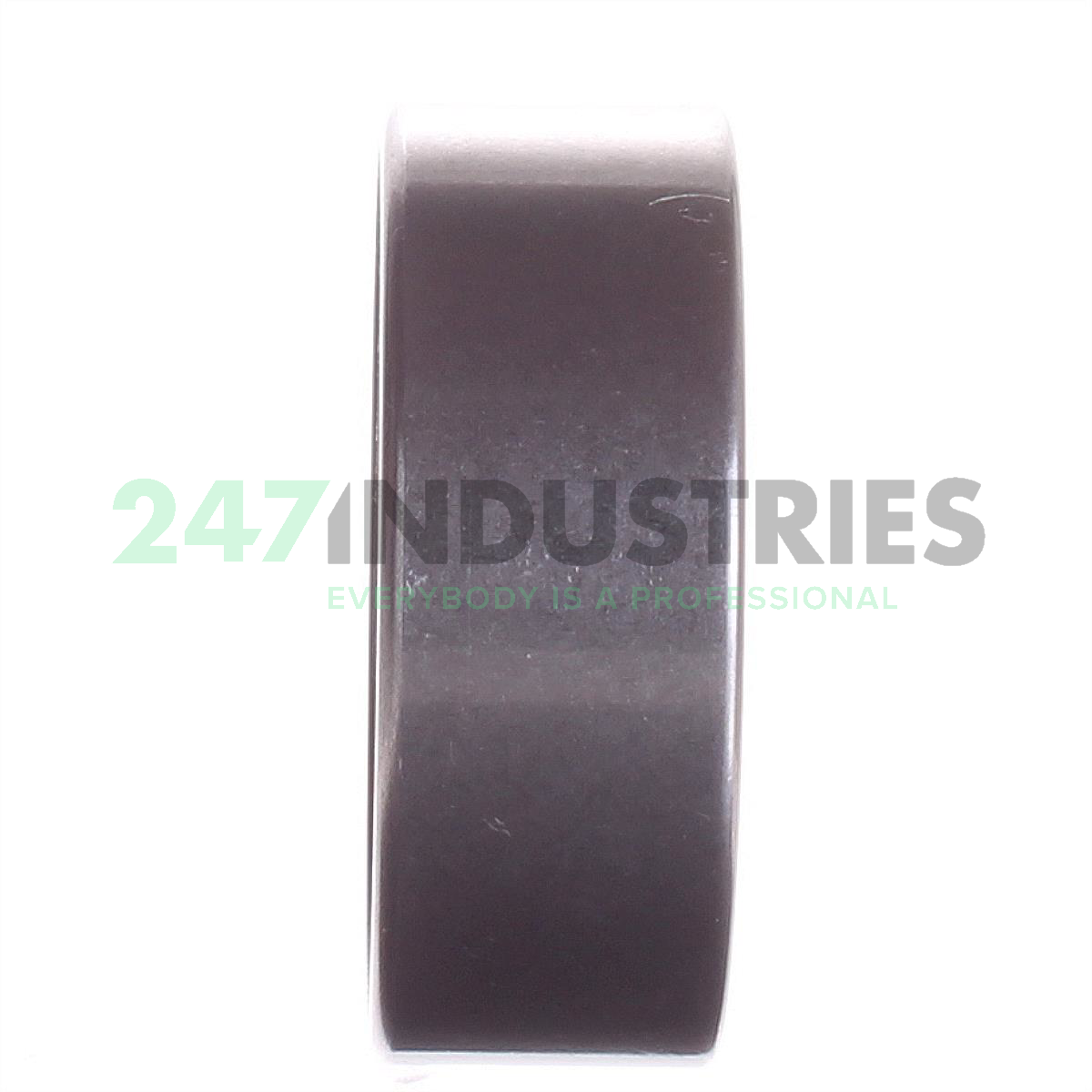

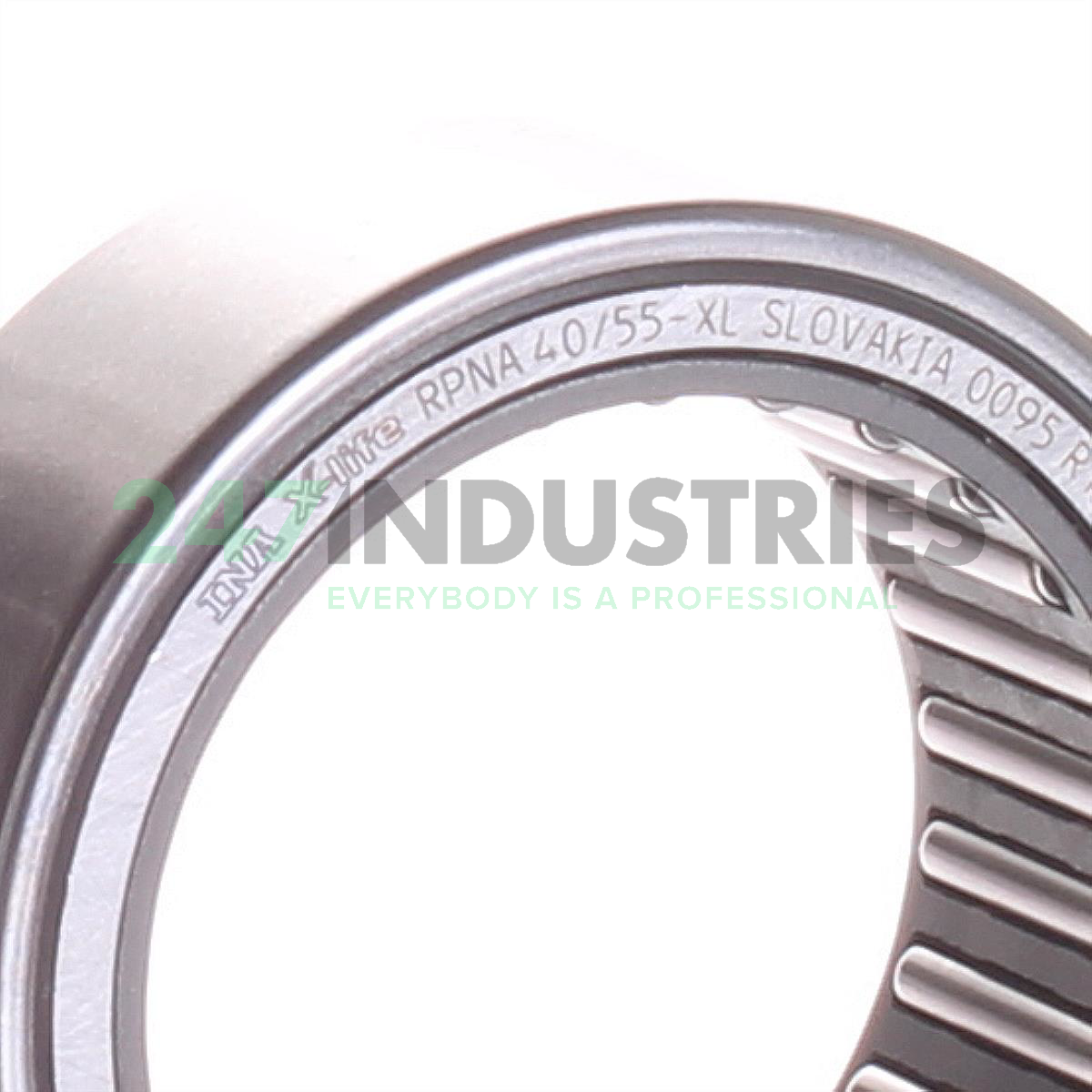

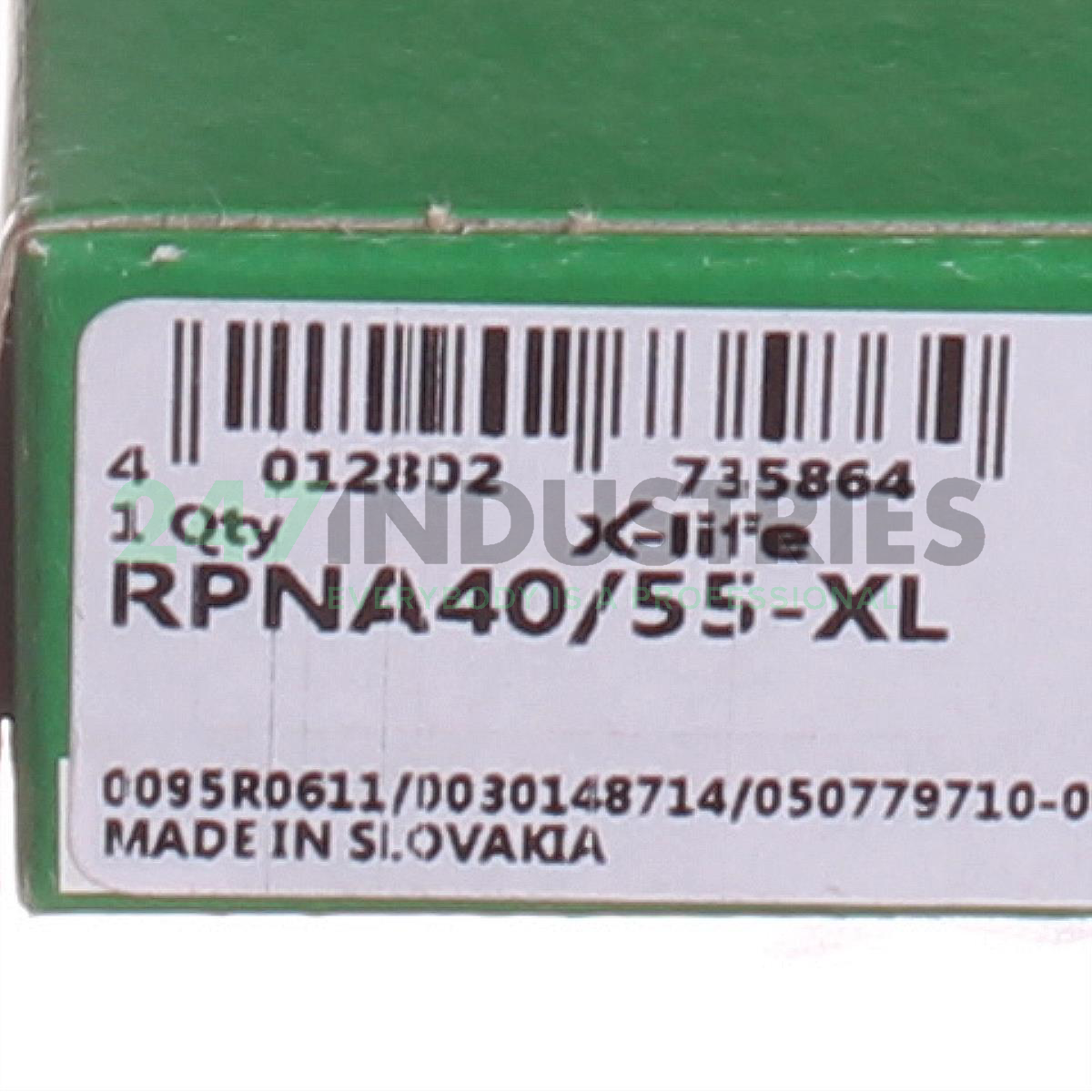

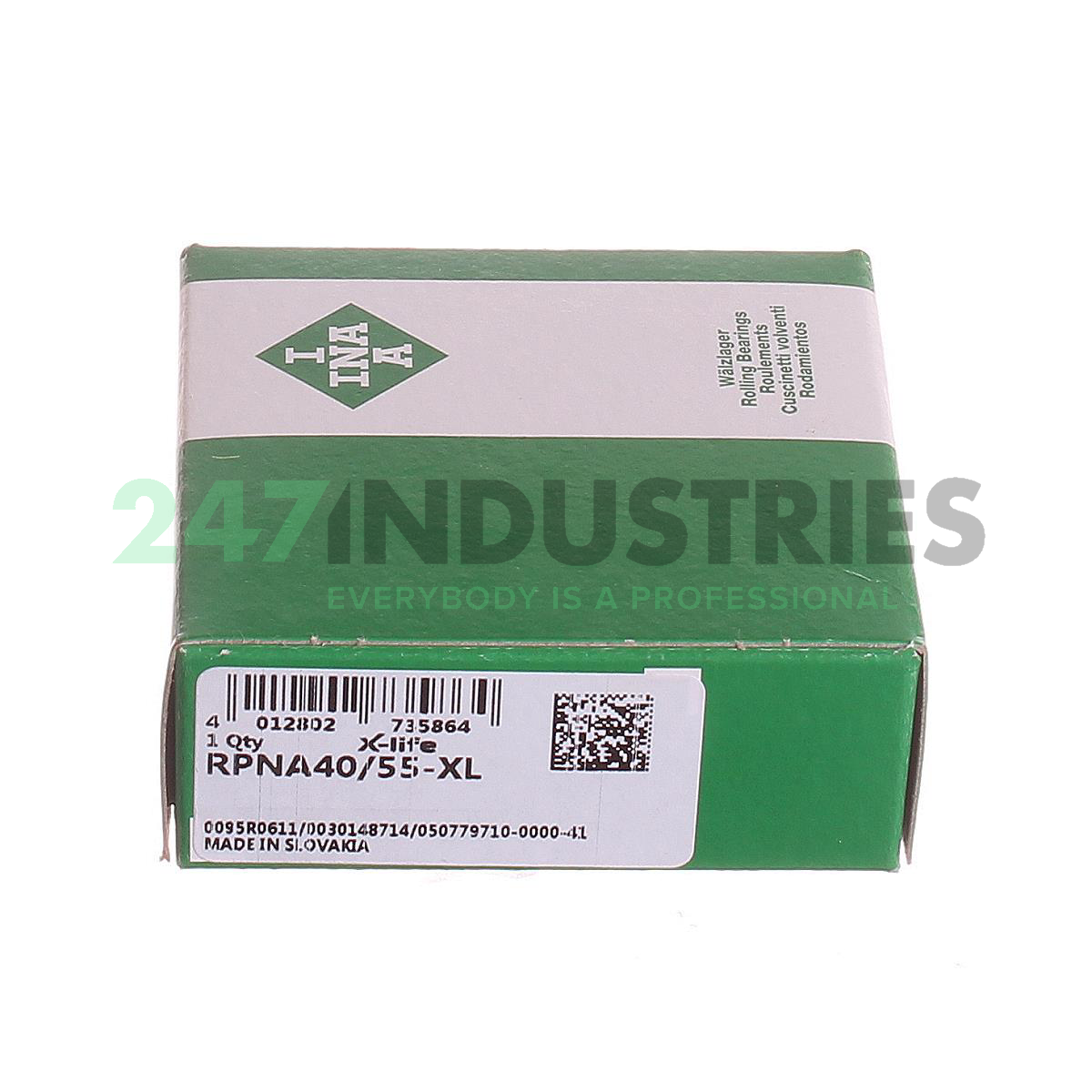

RPNA40/55-XL INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 55
3. Width (B) MM 20
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 40

Suffix description

1. XL X-Life

Technical details

1. Availability 204 pcs
2. Brand INA
3. Item number RPNA40/55-XL INA
4. Also known as 0507797100000
   RPNA40/55

5. EAN 4012802735864
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.141

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 47000
2. Radial Dynamic Load Rating Cr (N) 29500
3. Limiting speed (n G) 11400
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
6. Medias description Aligning needle roller bearings RPNA, without inner ring
