RPB15-XL INA

€ 20,01 ex VAT
€ 24,21 in VAT
€ 24,21 in VAT
€ 20,01 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

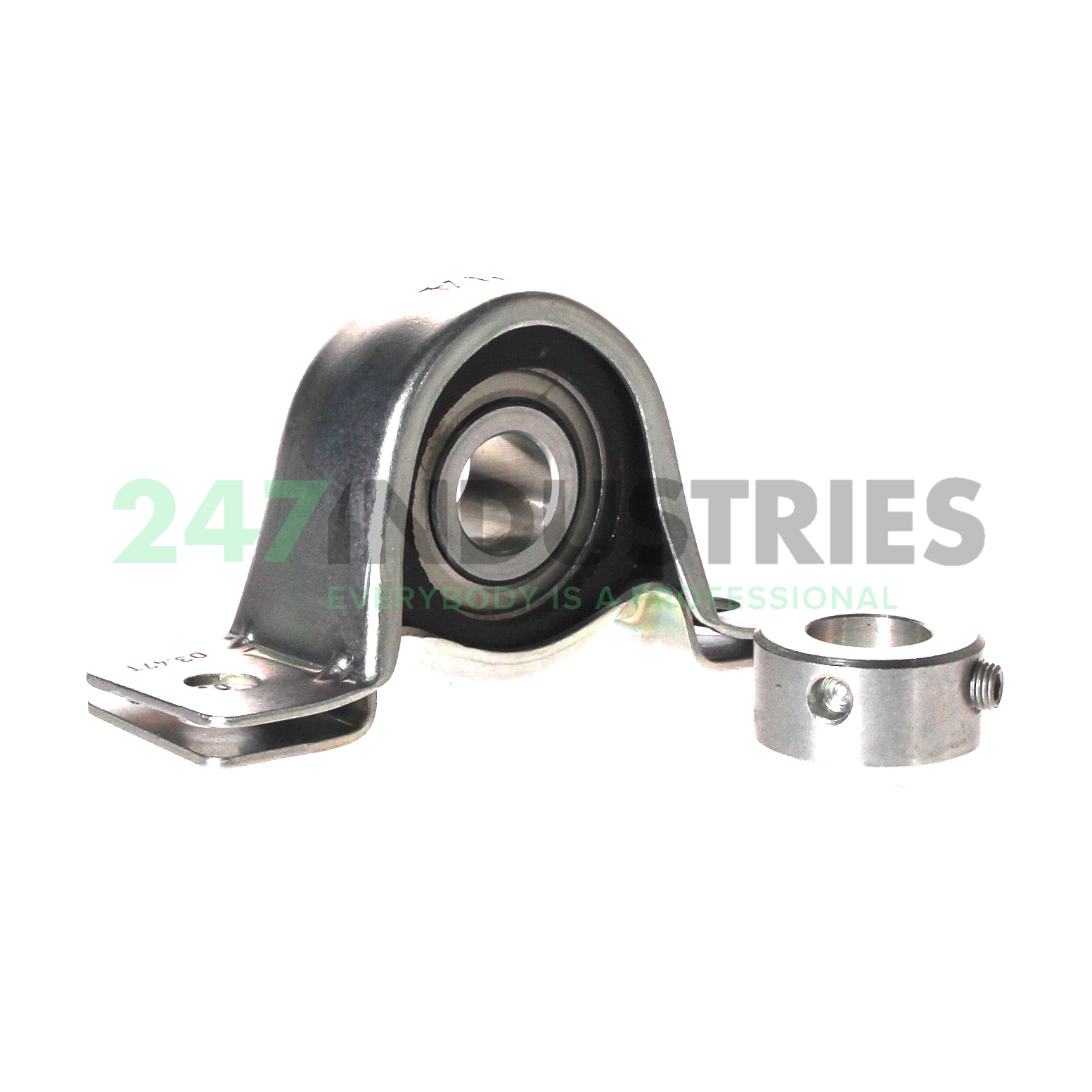

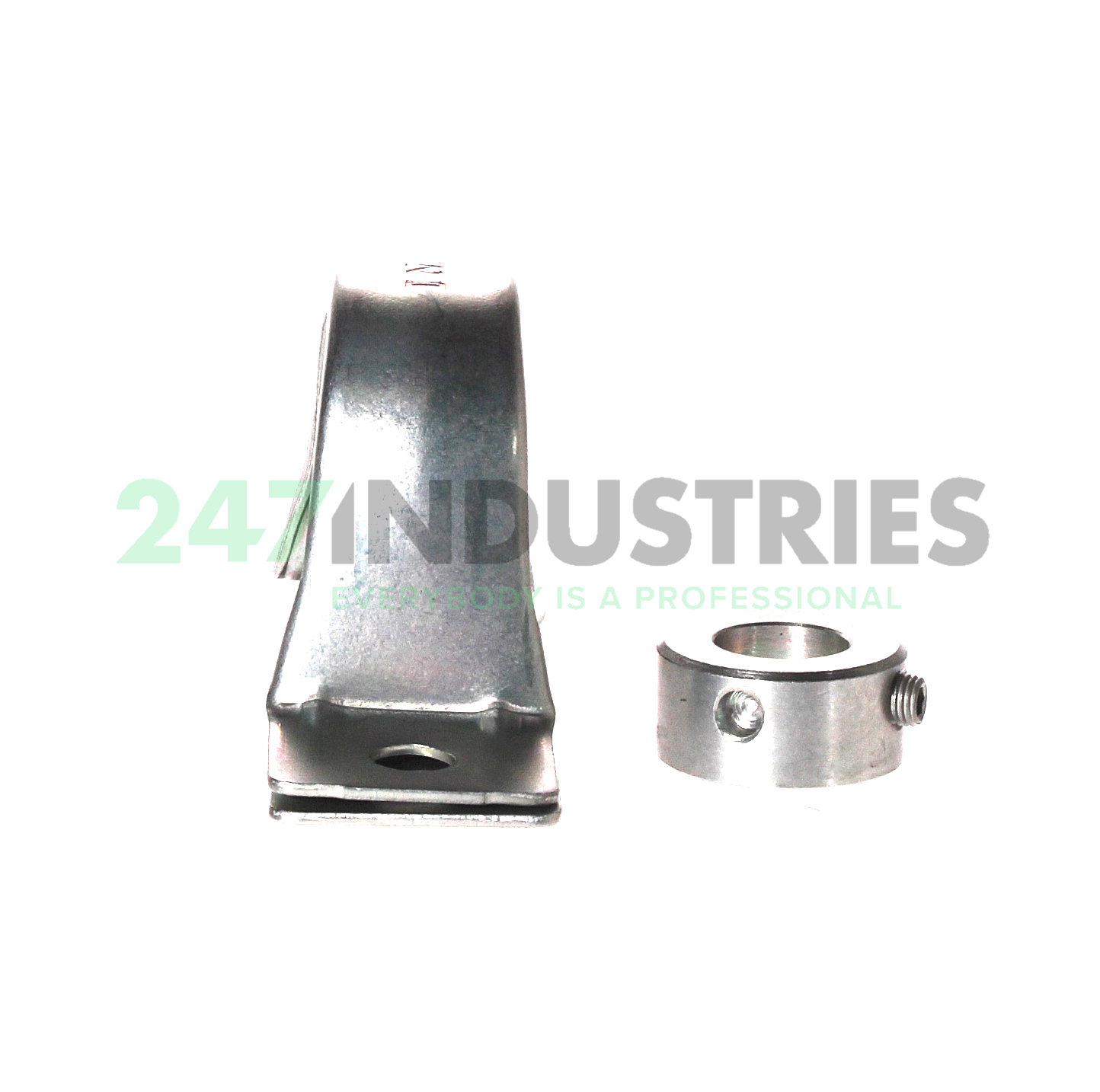

RPB15-XL INA

Housing and Bearing (assembly)

Stock
12 pcs in stock and ready for shipment
Brand INA
Article number RPB15-XL INA
Inside diameter 15mm
Outside diameter 98,4mm
Width 50,1mm
Product description

The RPB15-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: RPB15-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 98,4
  3. Width (B) MM 50,1
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 3.874
  6. Width (B) Inch 1.9724
  7. Length total (L) mm 98,4
  8. Height (H 2) mm 50,1

Suffix description

  1. XL X-Life

Technical details

  1. Availability 12 pcs
  2. Brand INA
  3. Item number RPB15-XL INA
  4. Also known as 0008295360000
    RPB15
  5. EAN 4012802792447
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.23

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 4750
  2. Radial Dynamic Load Rating Cr (N) 10100
  3. Load carrying capacity (housing) (C 0r G) 900
  4. ECLASS number 23-05-16-01
  5. ECLASS2 number 23-05-16-01
  6. Medias description Plummer block housing units RPB, sheet steel housing, radial insert ball bearing with eccentric locking collar and rubber interliner, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
