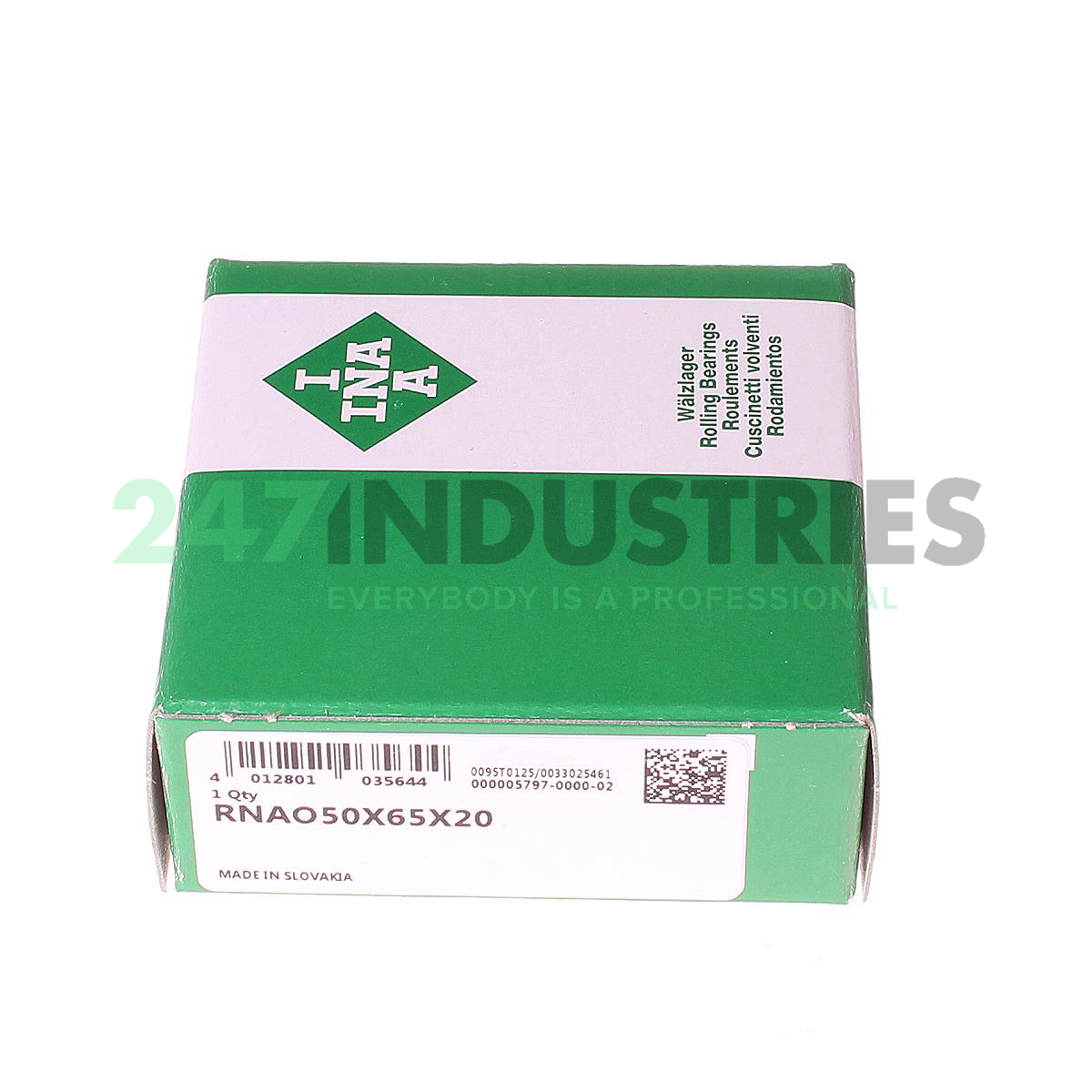

RNAO50X65X20 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 65
3. Width (B) MM 20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.5591
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 50

Technical details

1. Availability 35 pcs
2. Brand INA
3. Item number RNAO50X65X20 INA
4. Also known as 0000057970000

5. EAN 4012801035644
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.168

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 62000
2. Radial Dynamic Load Rating Cr (N) 35500
3. Limiting speed (n G) 9100
4. Reference speed (n ϑr) 5600
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing RNAO, two-row, no inner ring, no rib
