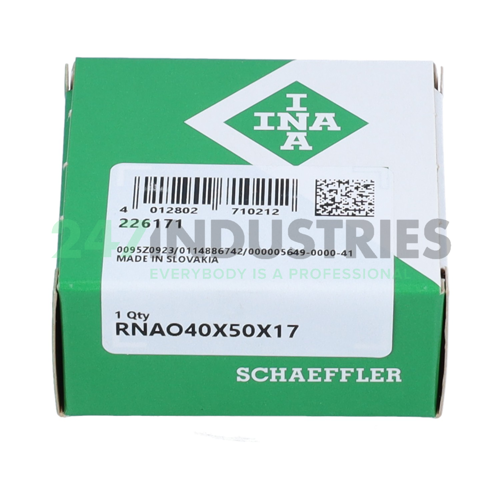

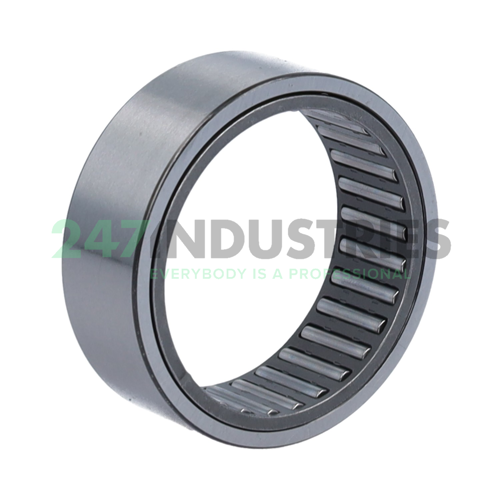

RNAO40X50X17 INA

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 50,00
3. Width (B) MM 17,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 1.9685
6. Width (B) Inch 0.6693
7. Under roller diameter (F w) mm 40,00

Technical details

1. Availability 81 pcs
2. Brand INA
3. Item number RNAO40X50X17 INA
4. Also known as 0000056490000

5. EAN 4012802710212
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.086

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 41500
2. Radial Dynamic Load Rating Cr (N) 21400
3. Basic static load rating, radial (C 0r) "41500.0000"
4. Limiting speed (n G) "11500.0000"
5. Reference speed (n ϑr) "7000.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearing RNAO, two-row, no inner ring, no rib

Downloads and links

1. Link to manufacturer Link to manufacturer
