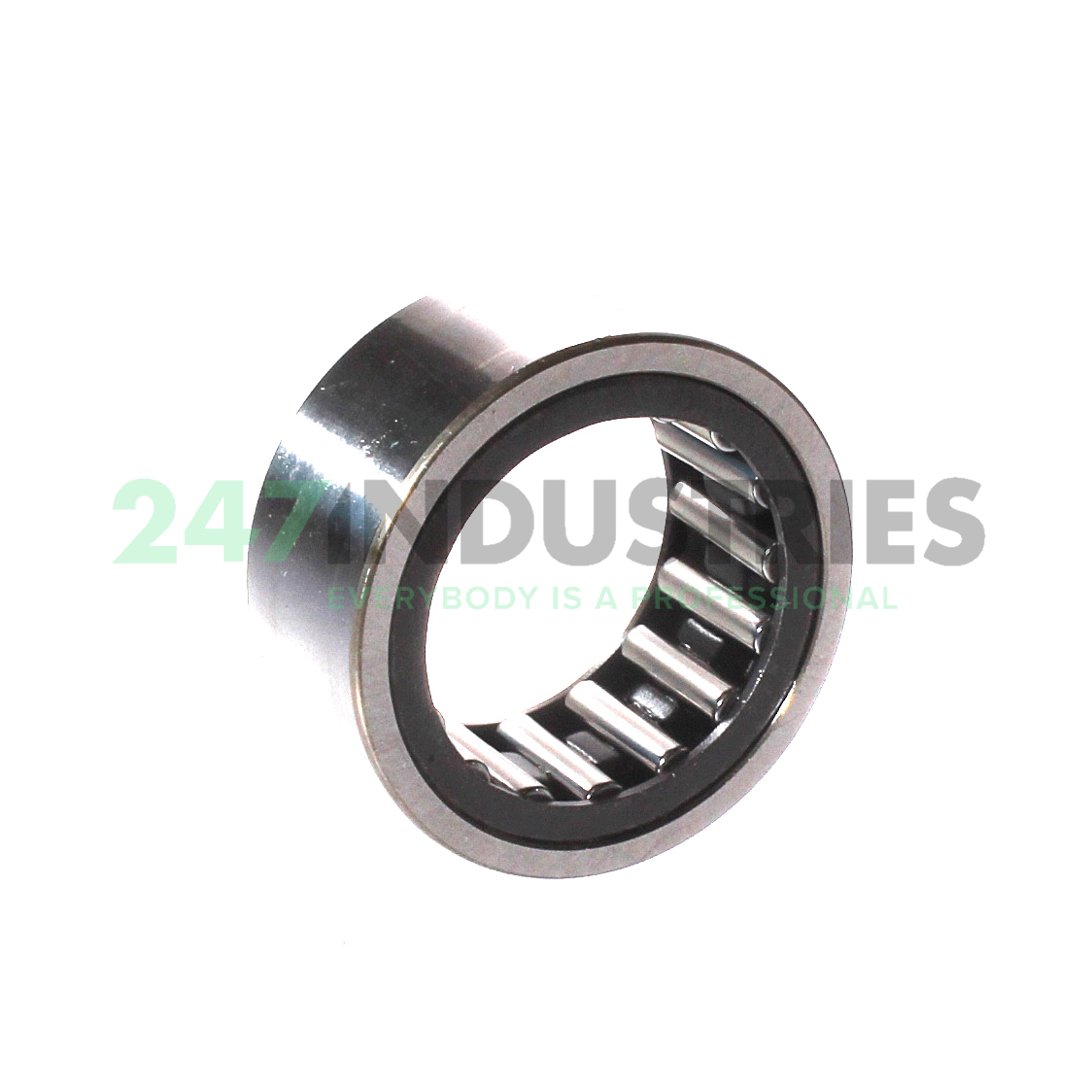

RNAO25X37X16-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 37
3. Width (B) MM 16
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.4567
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 25

Suffix description

1. XL X-Life

Technical details

1. Availability 97 pcs
2. Brand INA
3. Item number RNAO25X37X16-XL INA
4. Also known as 0507759360000
   RNAO25X37X16

5. EAN 4012802735314
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.058

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 27500
2. Radial Dynamic Load Rating Cr (N) 23500
3. Limiting speed (n G) 17200
4. Reference speed (n ϑr) 10000
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings RNAO, without ribs

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
