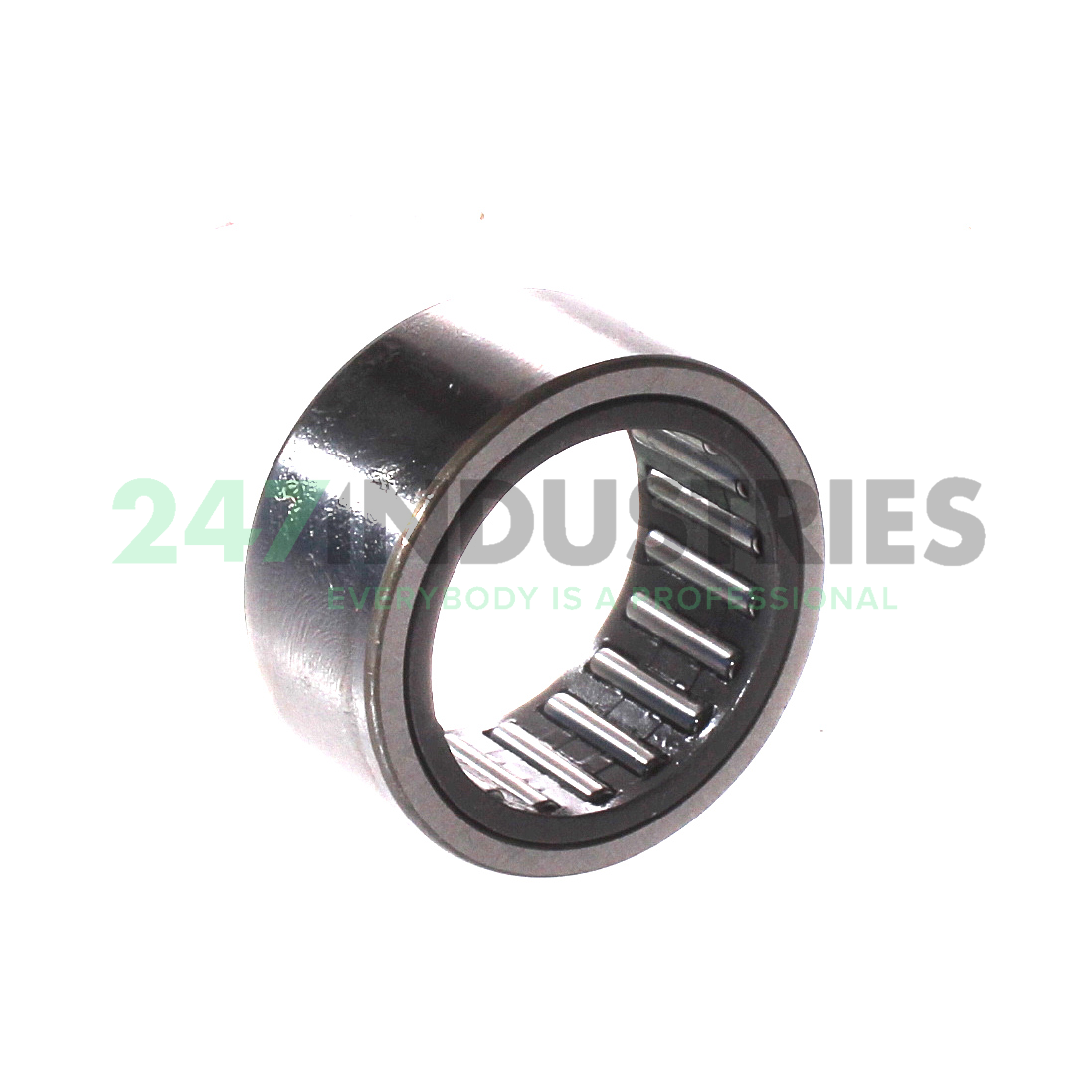

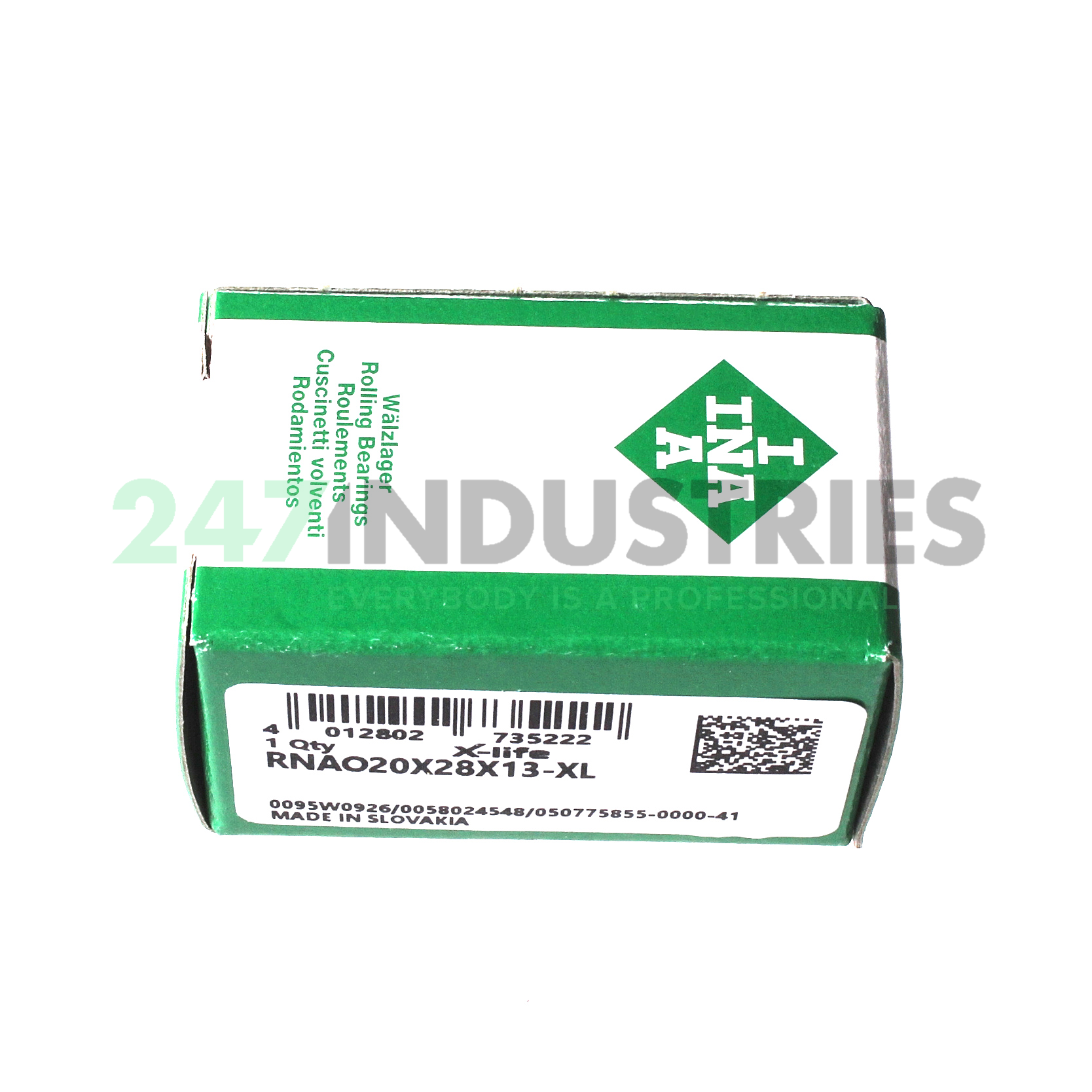

RNAO20X28X13-XL INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 28
3. Width (B) MM 13
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.5118
7. Under roller diameter (F w) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 39 pcs
2. Brand INA
3. Item number RNAO20X28X13-XL INA
4. Also known as 0507758550000
   RNAO20X28X13

5. EAN 4012802735222
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.025

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 14300
2. Radial Dynamic Load Rating Cr (N) 11100
3. Limiting speed (n G) 21300
4. Reference speed (n ϑr) 13700
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings RNAO, without ribs
