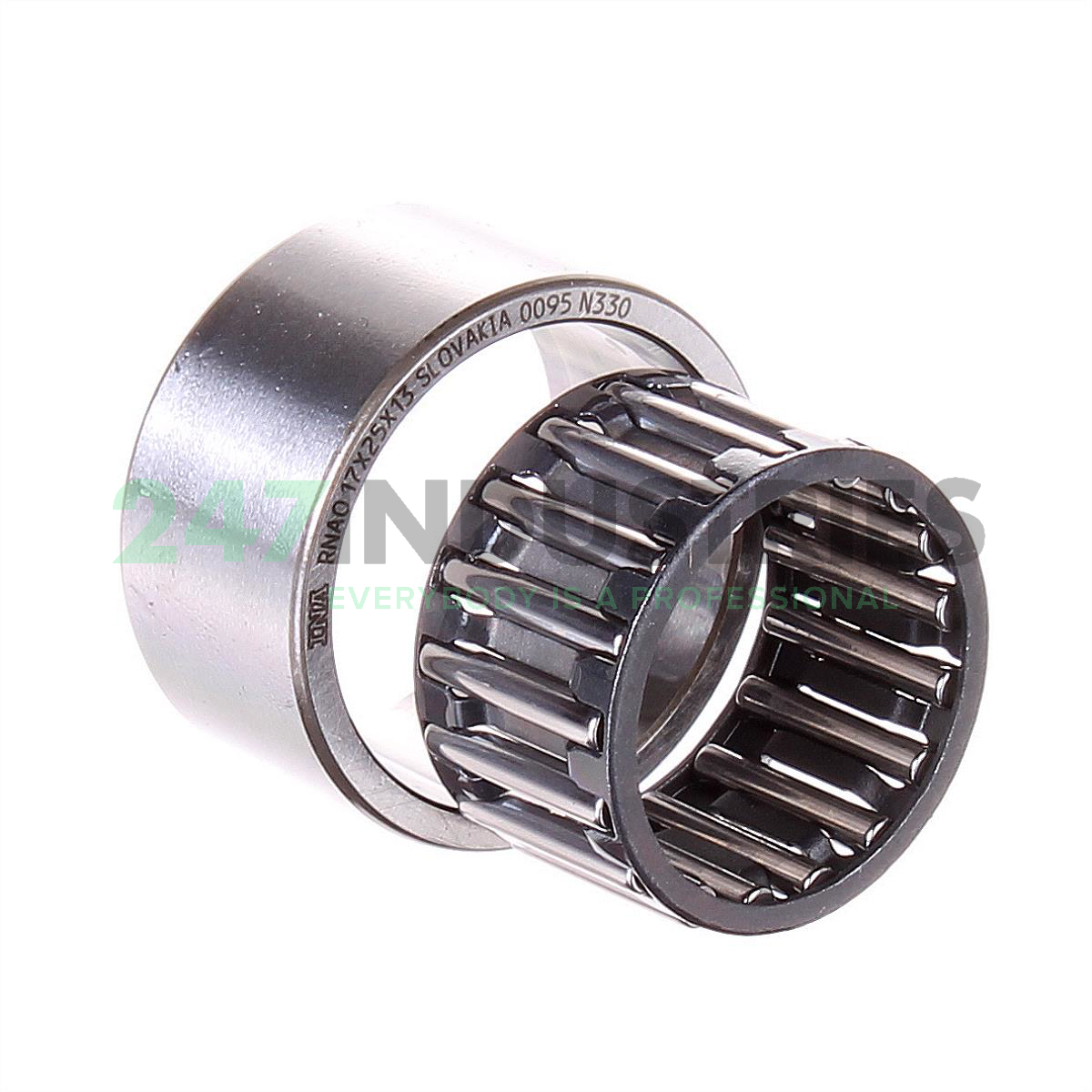

RNAO17X25X13 INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 25
3. Width (B) MM 13
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 0.9843
6. Width (B) Inch 0.5118
7. Under roller diameter (F w) mm 17

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number RNAO17X25X13 INA
4. Also known as 0000053550000

5. EAN 4012802710168
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.022

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 14600
2. Radial Dynamic Load Rating Cr (N) 10400
3. Limiting speed (n G) 22900
4. Reference speed (n ϑr) 15200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing RNAO, two-row, no inner ring, no rib
