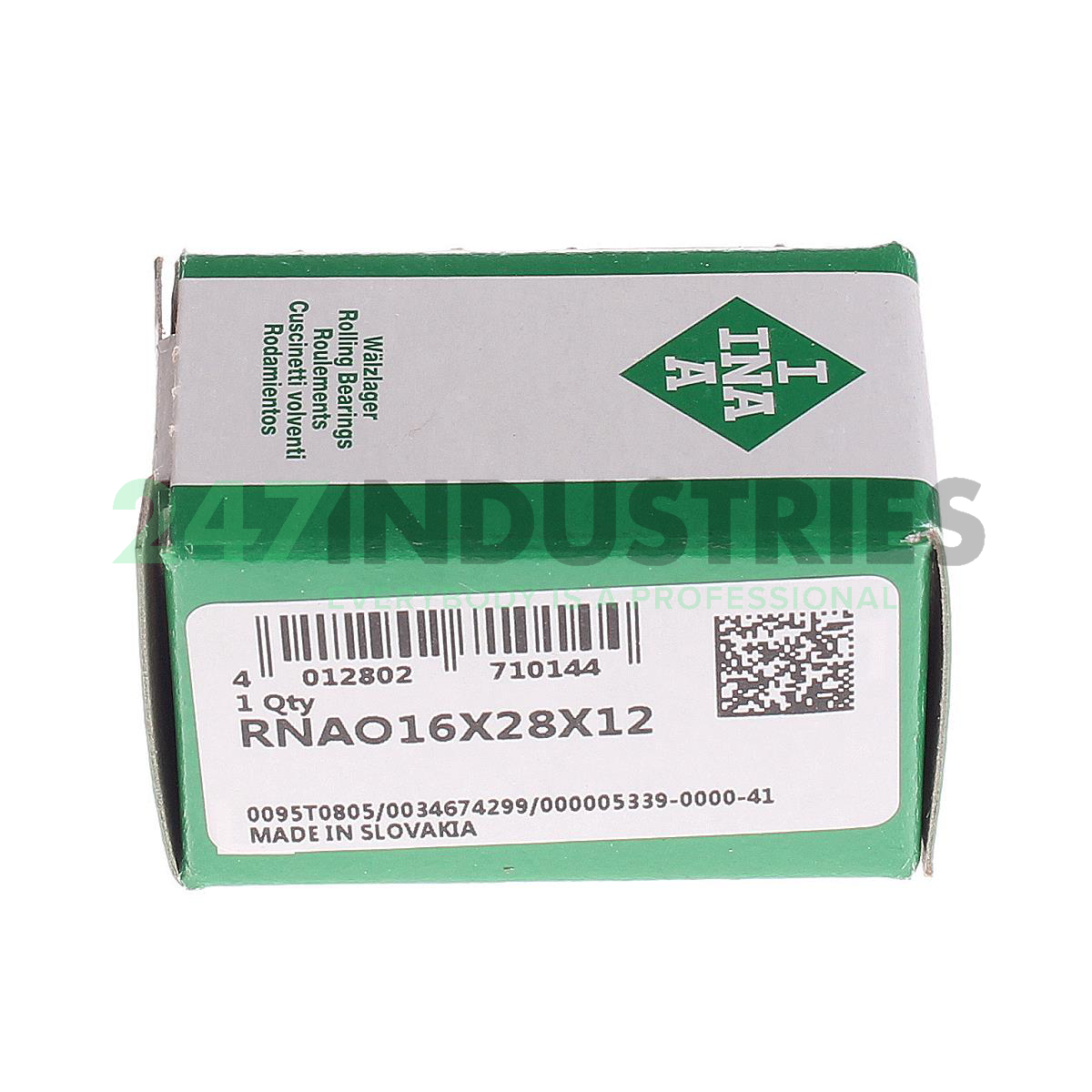

RNAO16X28X12 INA

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 28
3. Width (B) MM 12
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 16

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 145 pcs
2. Brand INA
3. Item number RNAO16X28X12 INA
4. Also known as 0000053390000

5. EAN 4012802710144
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.033

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 12500
2. Radial Dynamic Load Rating Cr (N) 11500
3. Limiting speed (n G) 22900
4. Reference speed (n ϑr) 15900
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing RNAO, two-row, no inner ring, no rib
