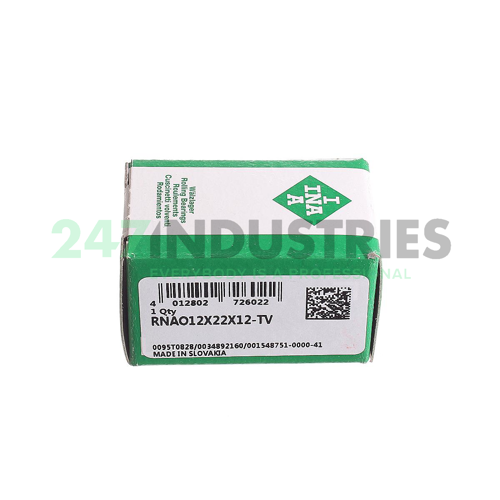

RNAO12X22X12-TV INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 22
3. Width (B) MM 12
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 12
8. Width (b) mm 12

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 31 pcs
2. Brand INA
3. Item number RNAO12X22X12-TV INA
4. Also known as 0015487510000

5. EAN 4012802726022
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.019

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 9900
2. Radial Dynamic Load Rating Cr (N) 10000
3. Limiting speed (n G) 26000
4. Limiting speed for grease lubrication (n G Grease) 15500
5. Reference speed (n ϑr) 19700
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNAO..-TV
