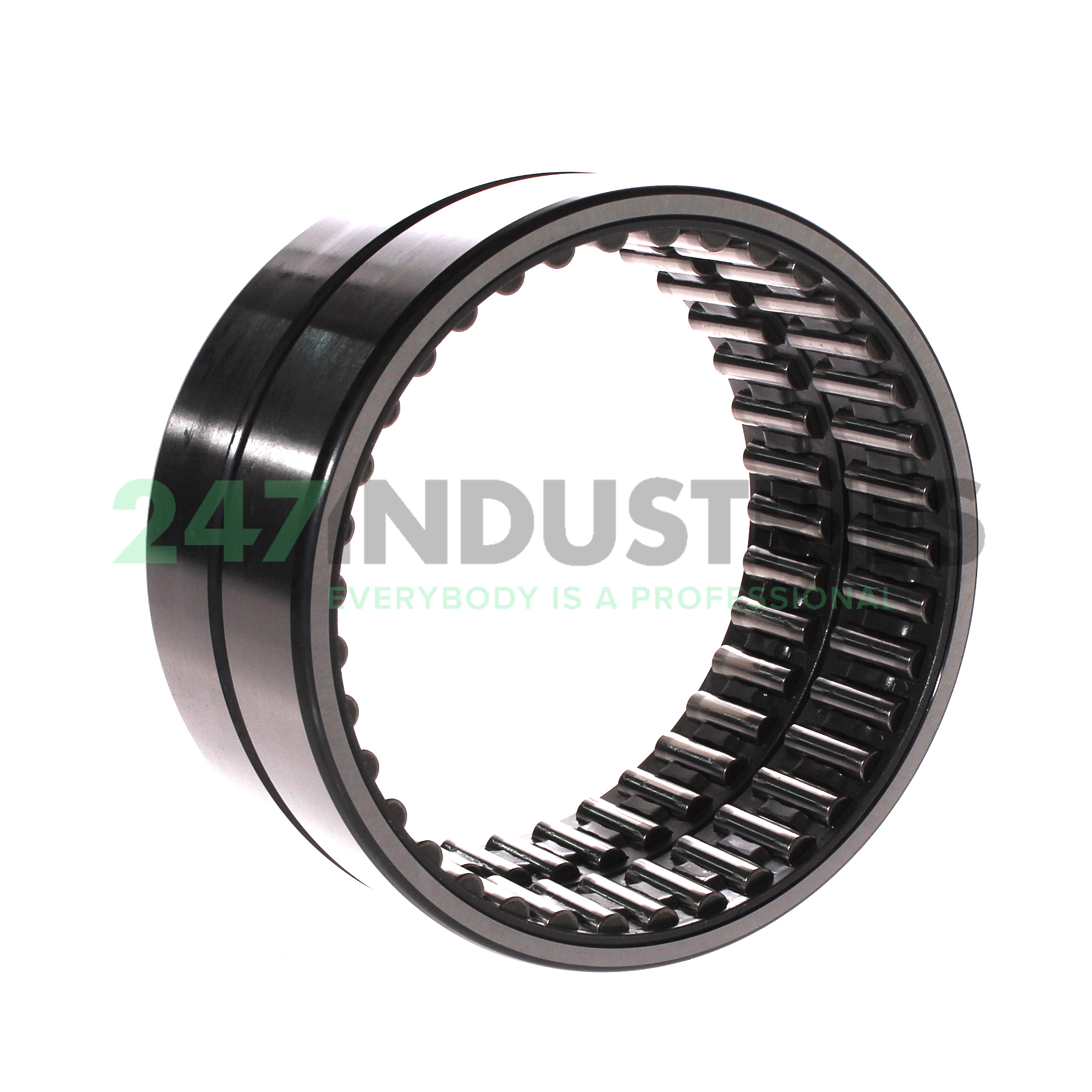

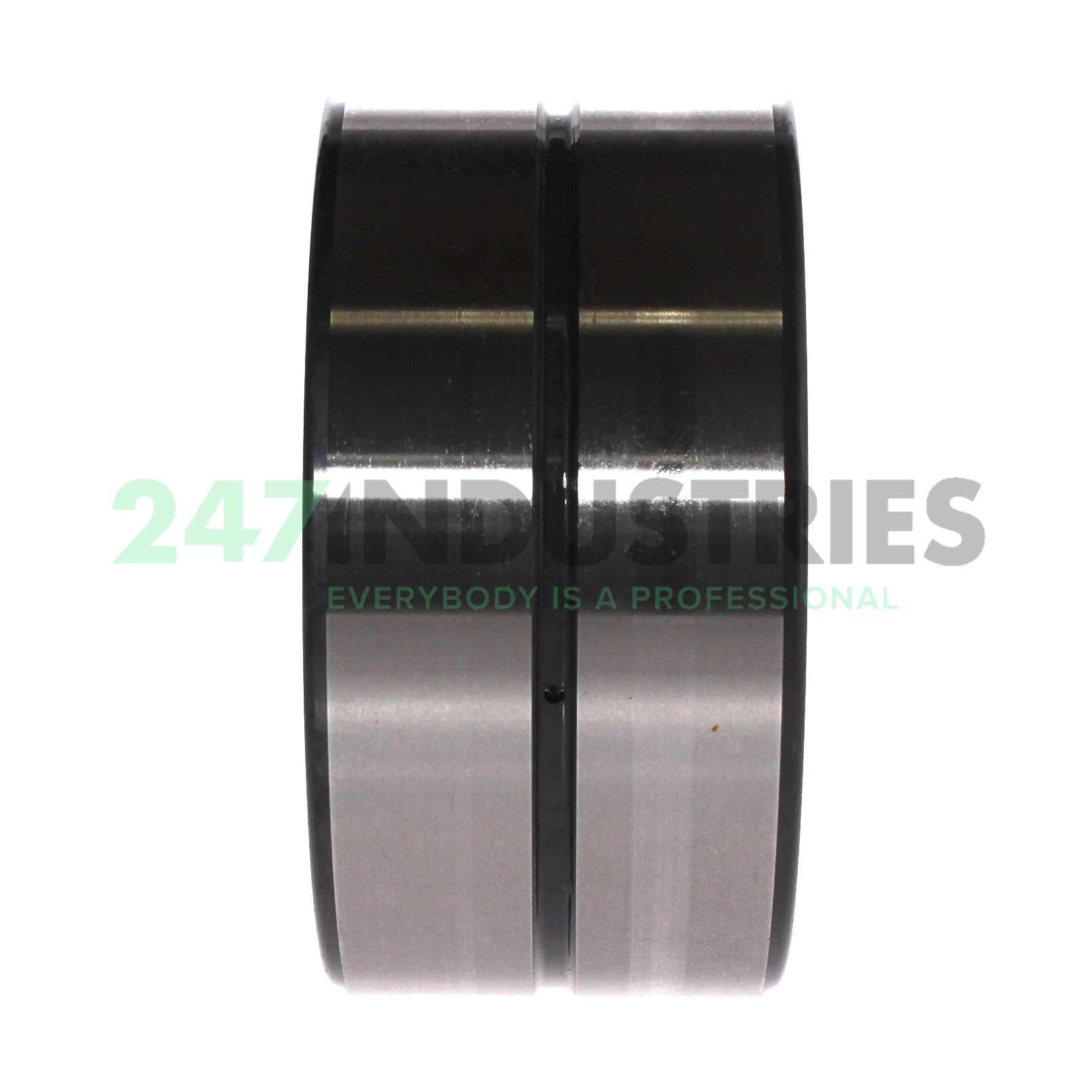

RNA6919-ZW-XL INA

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 130
3. Width (B) MM 63
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 5.1181
6. Width (B) Inch 2.4803
7. Under roller diameter (F w) mm 110

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number RNA6919-ZW-XL INA
4. Also known as 0507438050000
   RNA6919-ZW

5. EAN 4047643205122
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.47

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 440000
2. Radial Dynamic Load Rating Cr (N) 197000
3. Limiting speed (n G) 4200
4. Limiting speed for grease lubrication (n G Grease) 2500
5. Reference speed (n ϑr) 2550
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings RNA69..-ZW, Dimension series 69, double row
