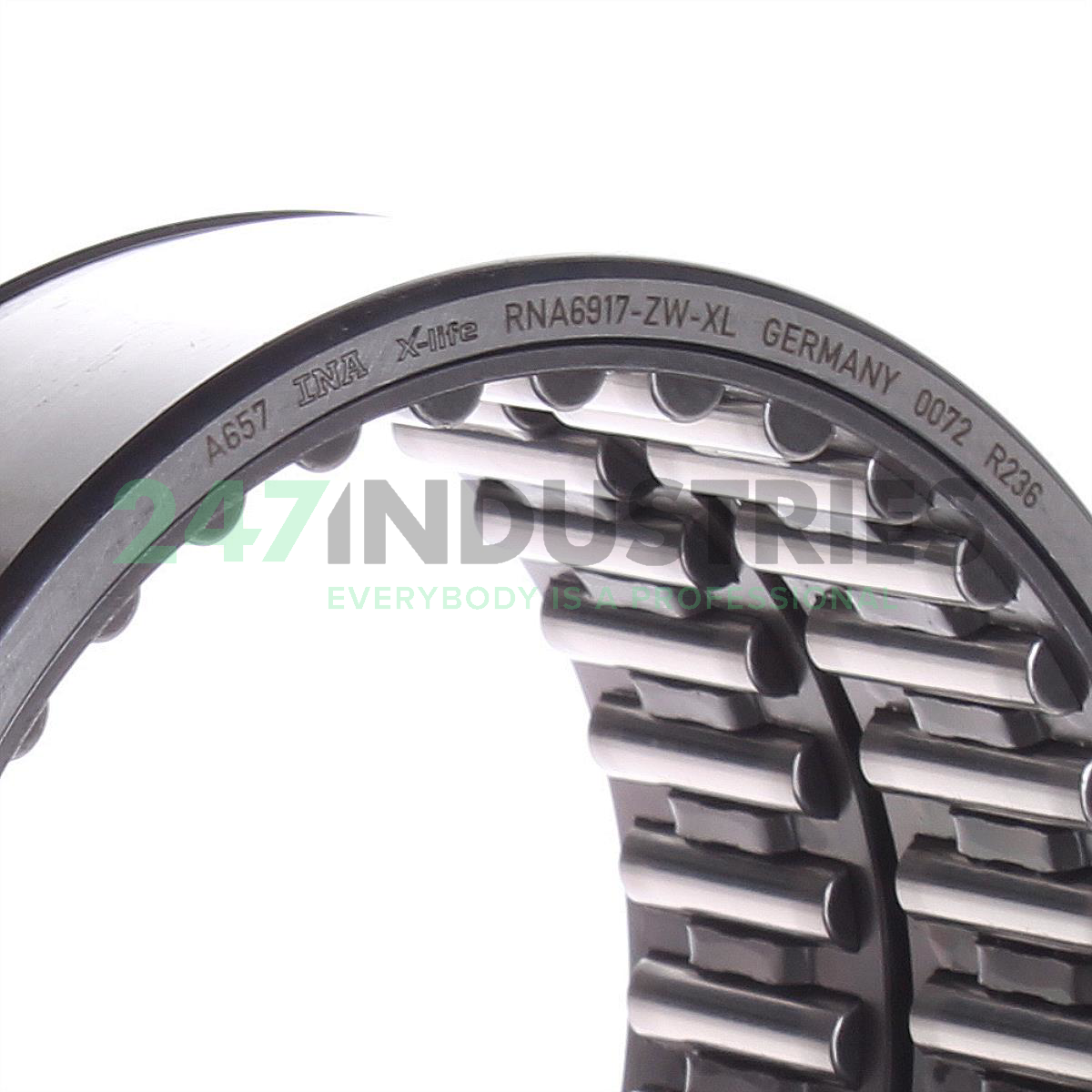

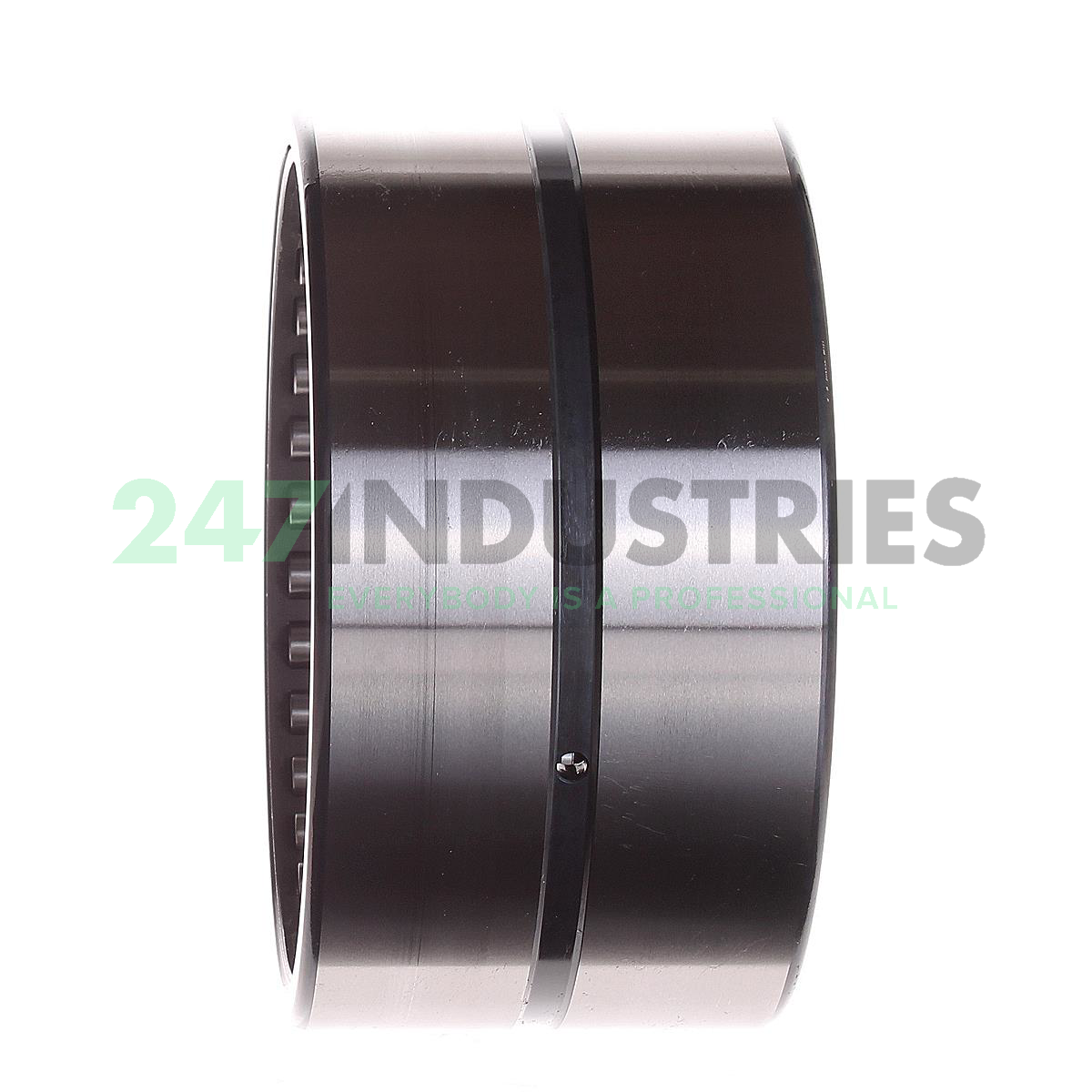

RNA6917-ZW-XL INA

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 120
3. Width (B) MM 63
4. Inner (d) Inch 3.937
5. Outer (D) Inch 4.7244
6. Width (B) Inch 2.4803
7. Under roller diameter (F w) mm 100

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 24 pcs
2. Brand INA
3. Item number RNA6917-ZW-XL INA
4. Also known as 0507437830000
   RNA6917-ZW

5. EAN 4012802703115
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.2

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 400000
2. Radial Dynamic Load Rating Cr (N) 188000
3. Limiting speed (n G) 4600
4. Limiting speed for grease lubrication (n G Grease) 2750
5. Reference speed (n ϑr) 2850
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings RNA69..-ZW, Dimension series 69, double row
