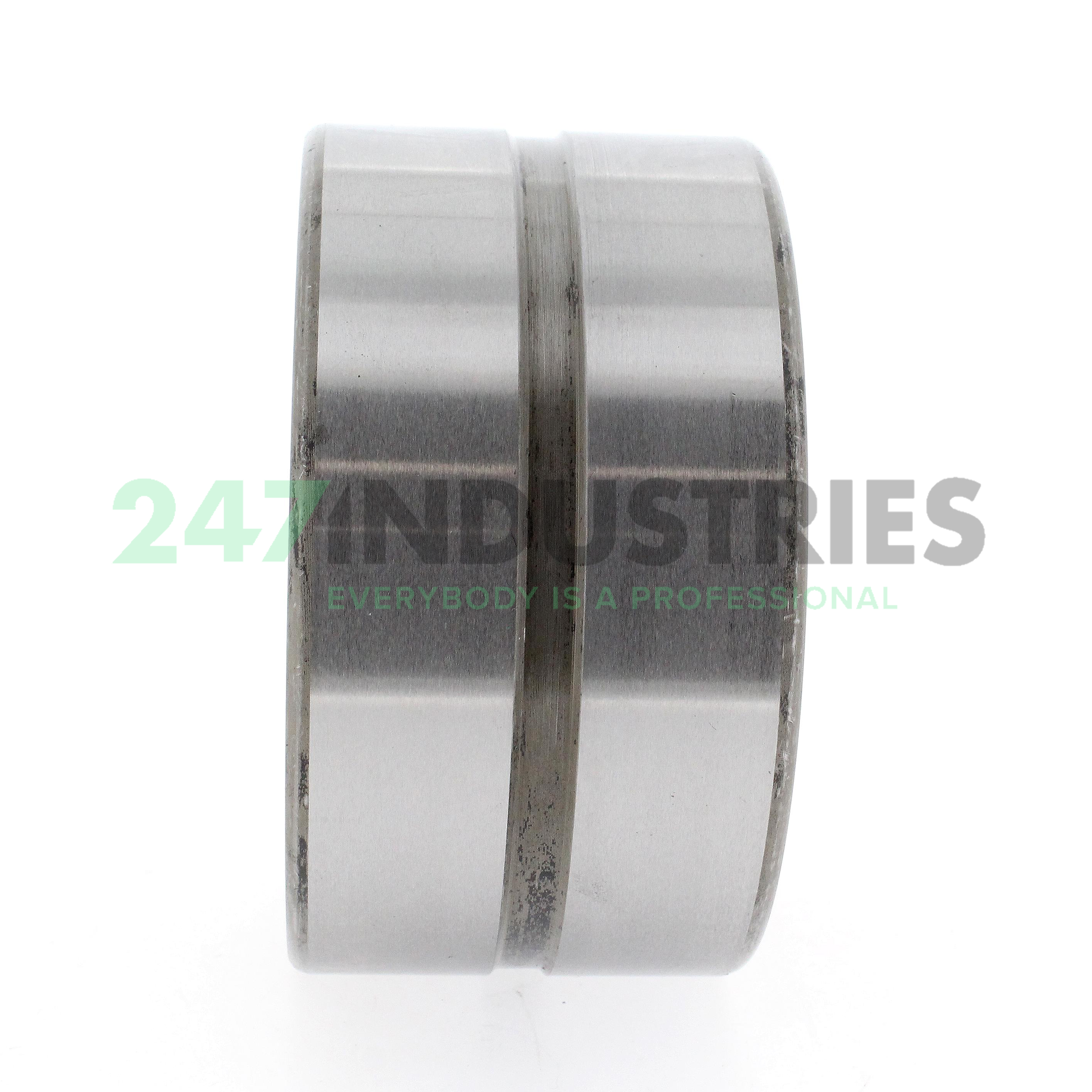

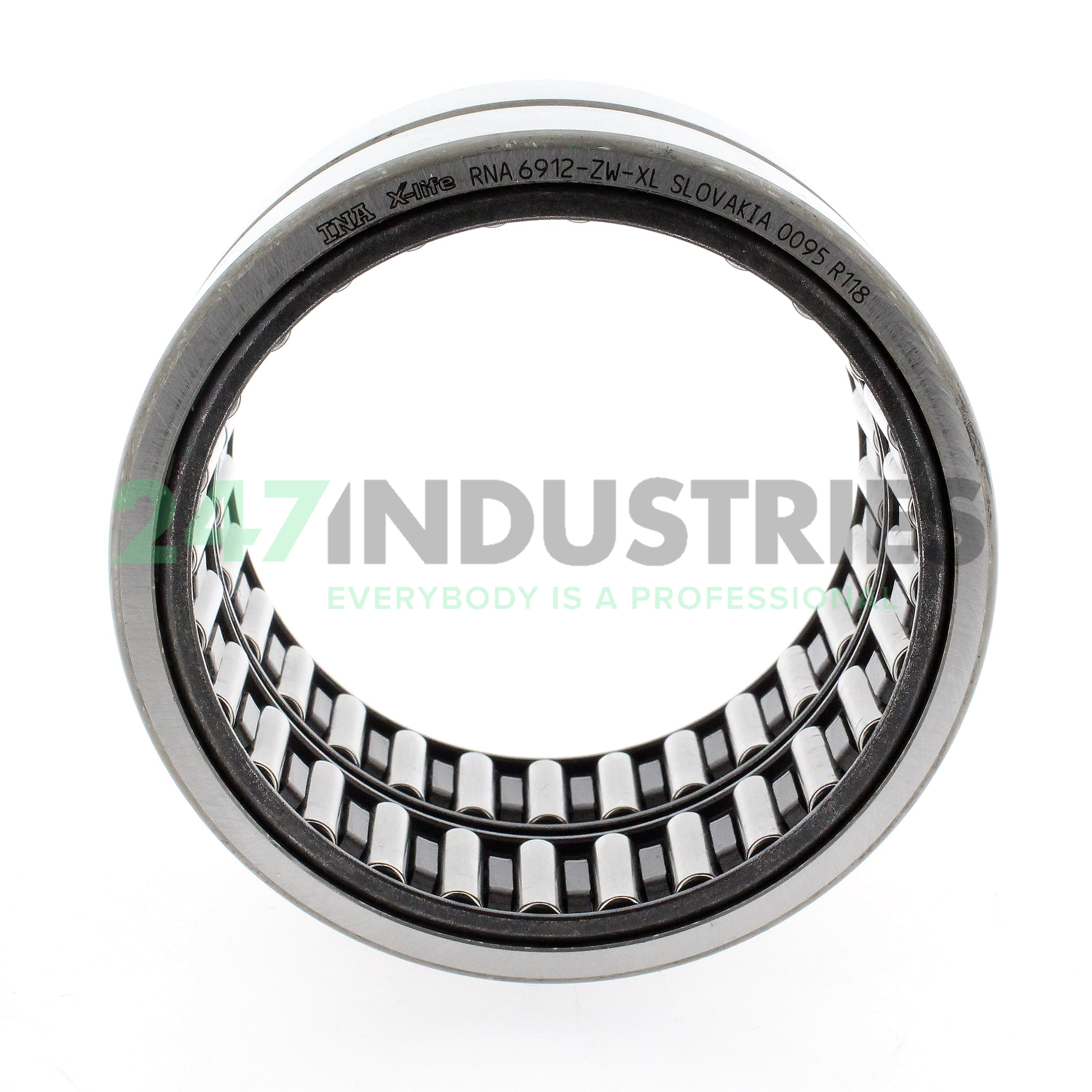

RNA6912-ZW-XL INA

All dimensions

1. Inner (d) MM 68
2. Outer (D) MM 85
3. Width (B) MM 45
4. Inner (d) Inch 2.6772
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.7717
7. Under roller diameter (F w) mm 68

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 47 pcs
2. Brand INA
3. Item number RNA6912-ZW-XL INA
4. Also known as 0507436350000
   RNA6912-ZW

5. EAN 4012802331882
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.5242

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 191000
2. Radial Dynamic Load Rating Cr (N) 106000
3. Limiting speed (n G) 6700
4. Limiting speed for grease lubrication (n G Grease) 4000
5. Reference speed (n ϑr) 3850
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings RNA69..-ZW, Dimension series 69, double row
