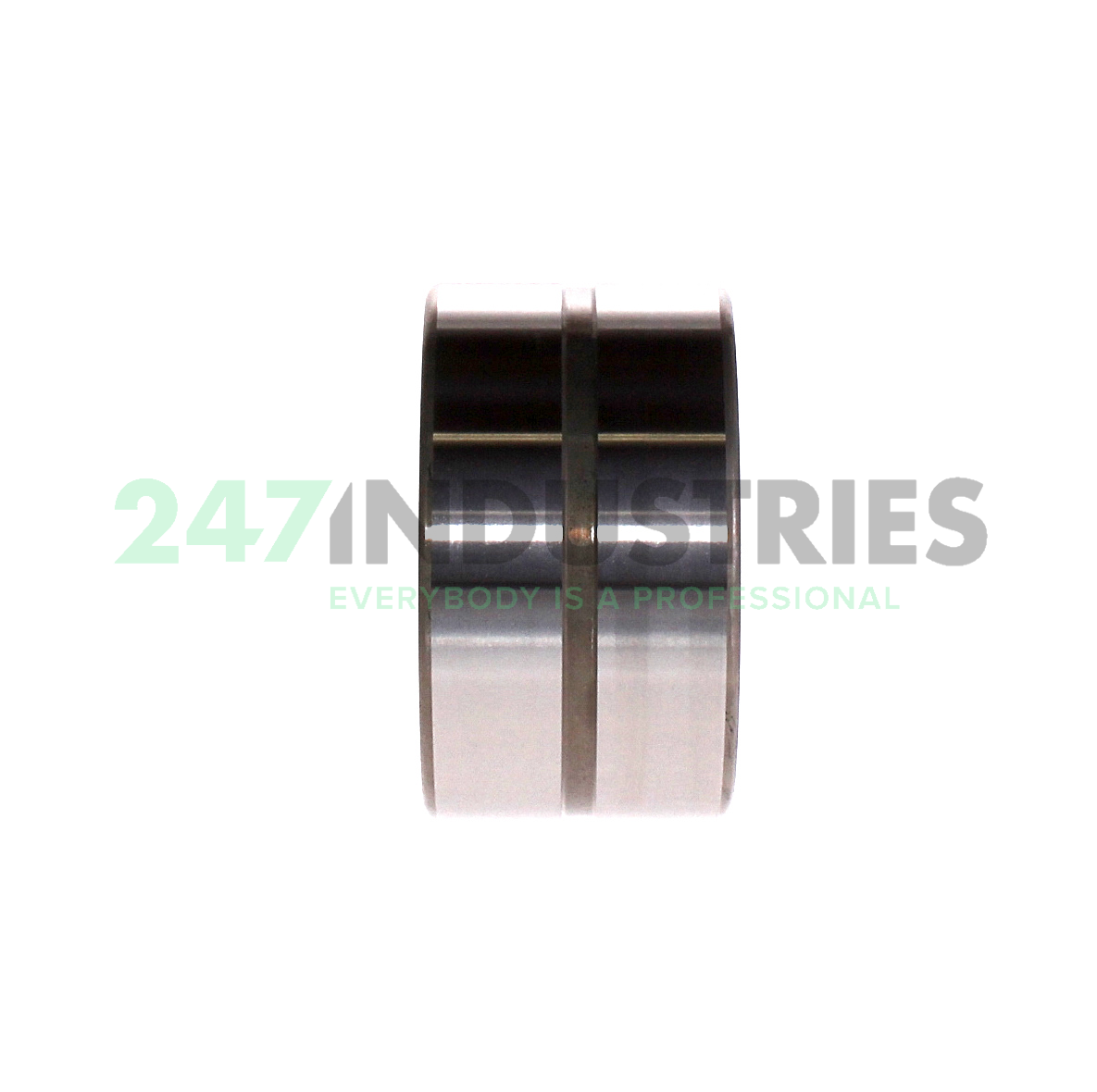

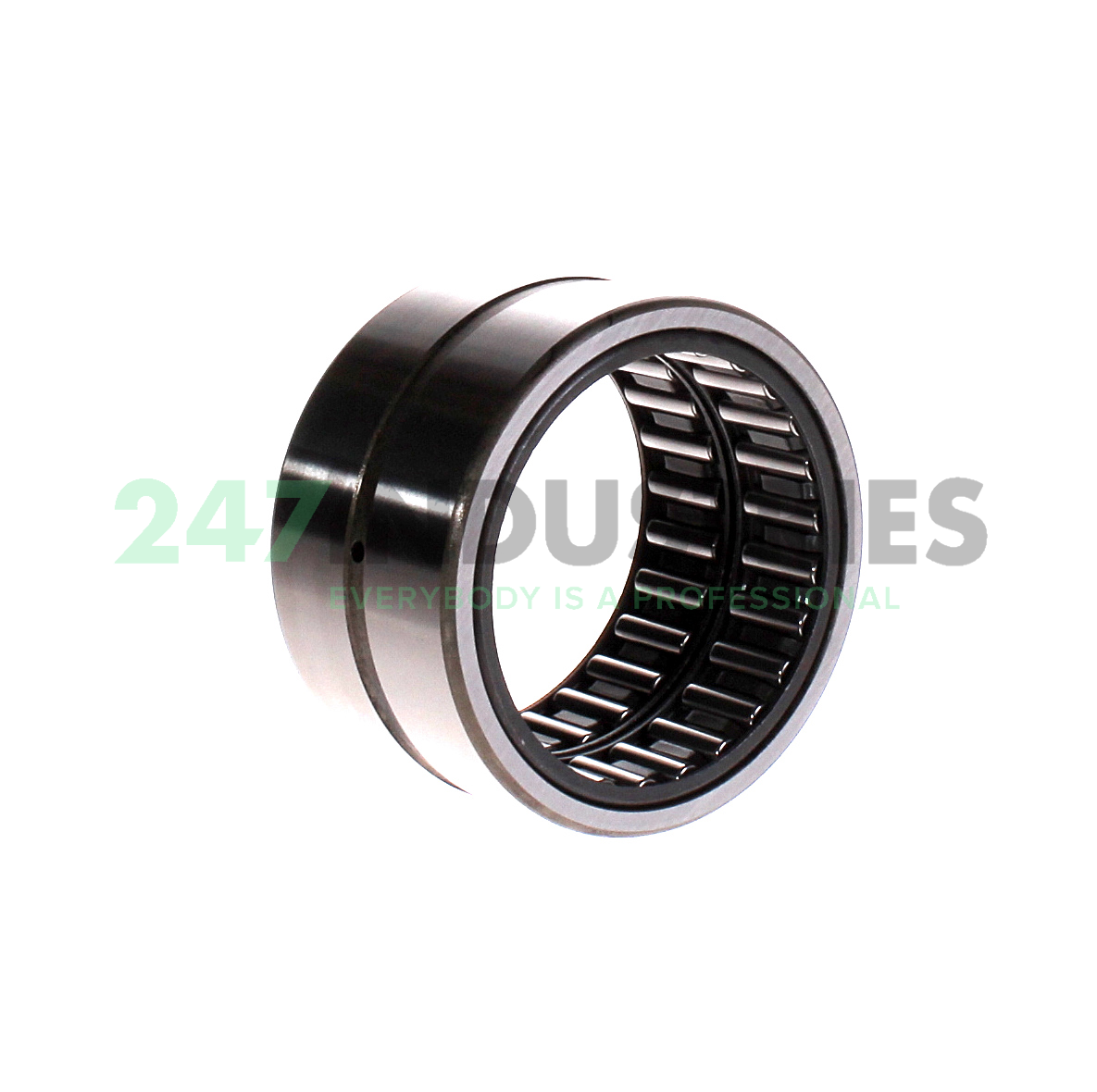

RNA6911-ZW-P5-XL INA

All dimensions

1. Inner (d) MM 63
2. Outer (D) MM 80
3. Width (B) MM 45
4. Inner (d) Inch 2.4803
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.7717
7. Under roller diameter (F w) mm 63

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5
3. XL X-Life

Technical details

1. Availability 6 pcs
2. Brand INA
3. Item number RNA6911-ZW-P5-XL INA
4. Also known as 0529768660000
   RNA6911-ZW-P5

5. EAN 4012802705188
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.47

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 176000
2. Limiting speed (n G) 7200
3. Limiting speed for grease lubrication (n G Grease) 4300
4. Reference speed (n ϑr) 4200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
