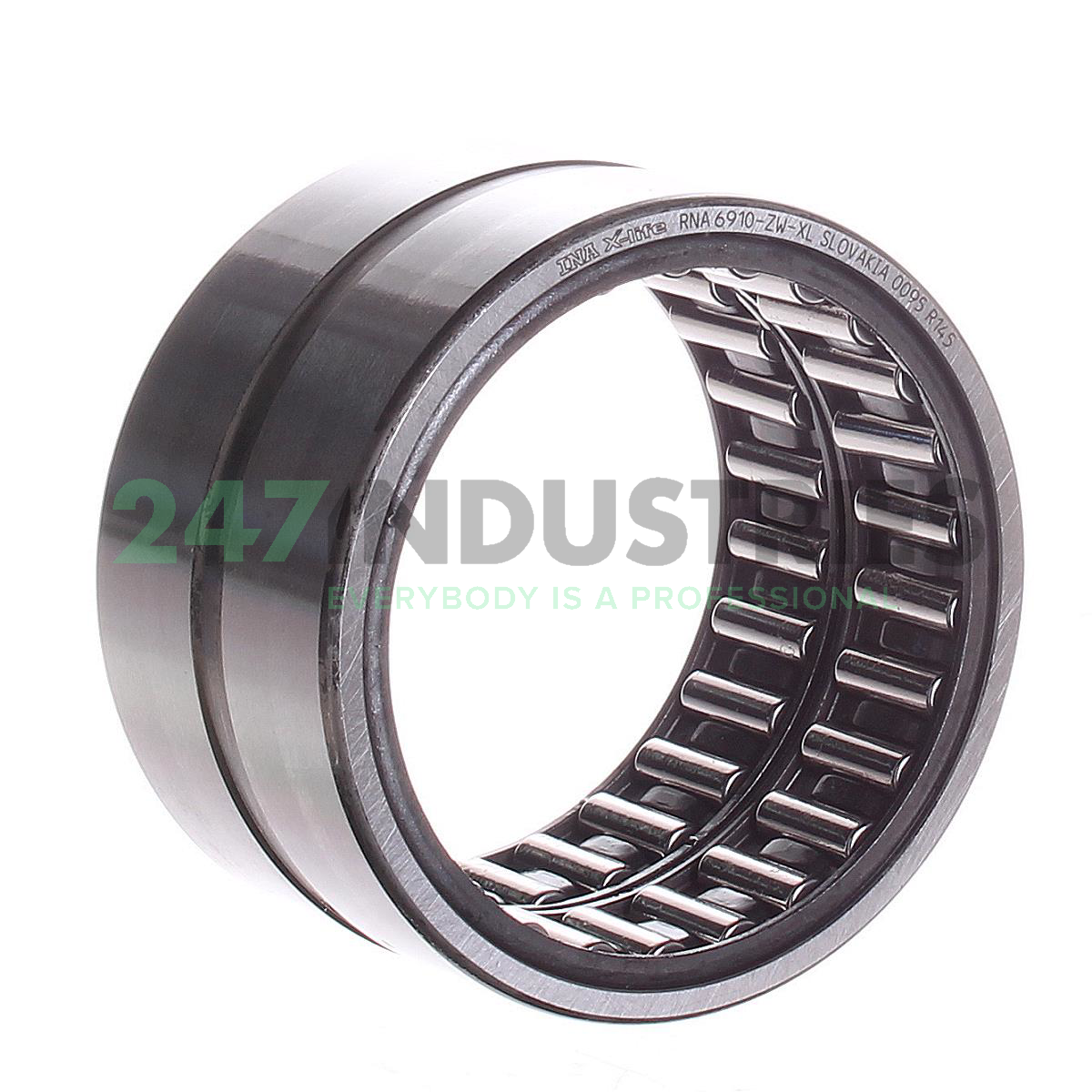

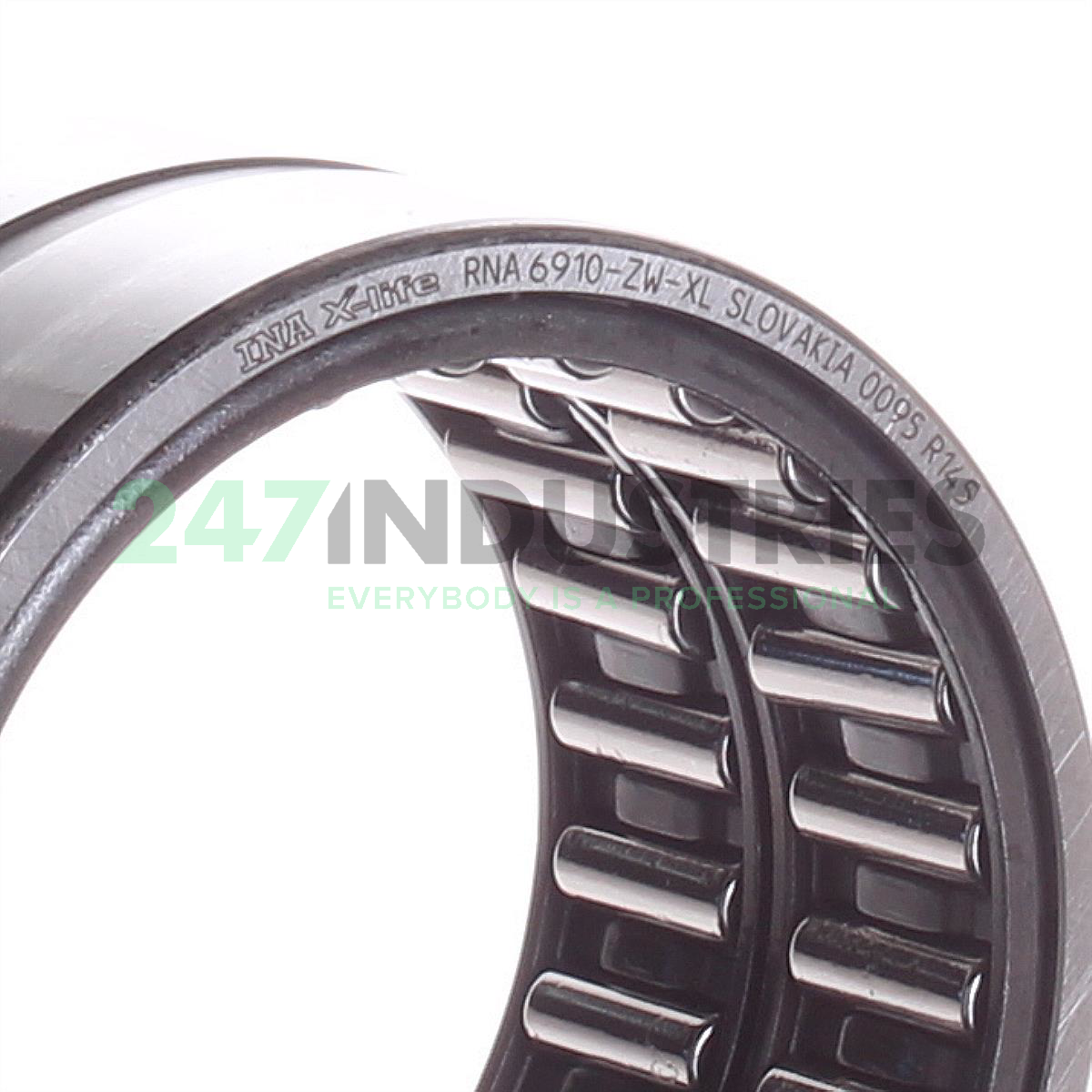

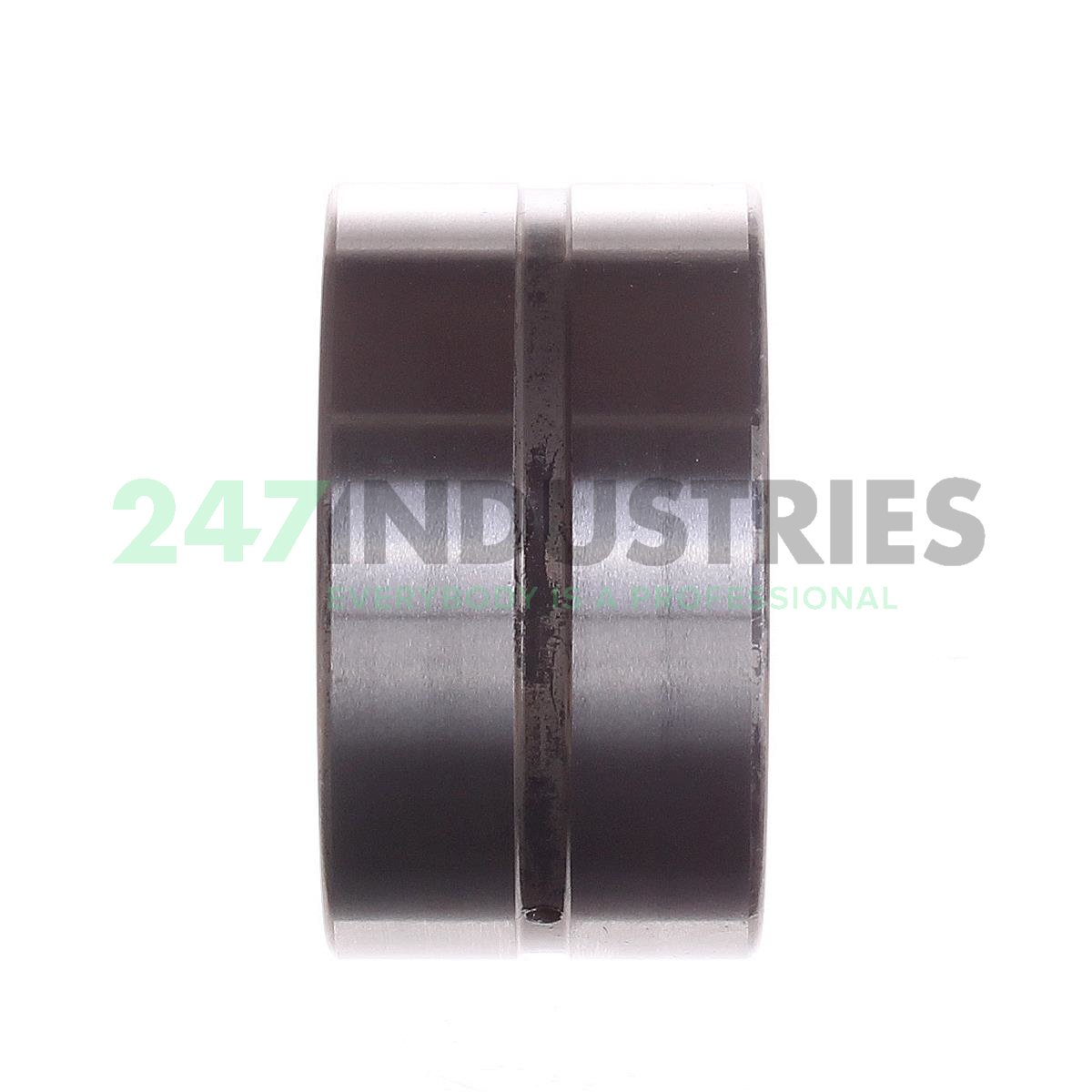

RNA6910-ZW-XL INA

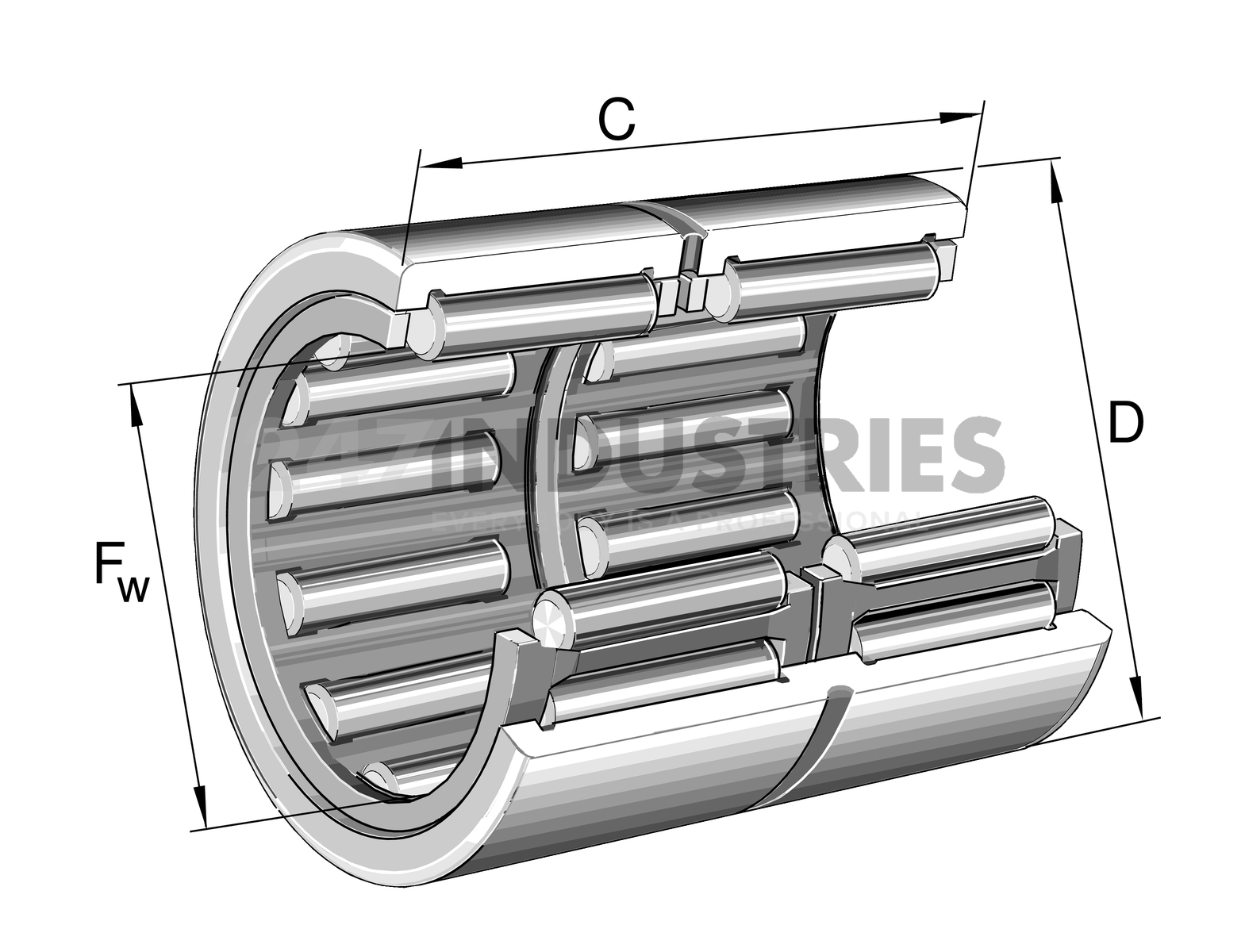

All dimensions

1. Inner (d) MM 58,00
2. Outer (D) MM 72,00
3. Width (B) MM 40,00
4. Inner (d) Inch 2.2835
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.5748
7. Under roller diameter (F w) mm 58,00

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 67 pcs
2. Brand INA
3. Item number RNA6910-ZW-XL INA
4. Also known as 0507436190000
   RNA6910-ZW

5. EAN 4012802284010
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.31

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 139000
2. Radial Dynamic Load Rating Cr (N) 82000
3. Basic static load rating, radial (C 0r) "139000.0000"
4. Limiting speed (n G) "7800.0000"
5. Limiting speed for grease lubrication (n G Grease) "4650.0000"
6. Reference speed (n ϑr) "4400.0000"
7. ECLASS number 23-05-09-07
8. ECLASS2 number 23-05-09-07
9. Medias description Needle roller bearings RNA69..-ZW, Dimension series 69, double row
