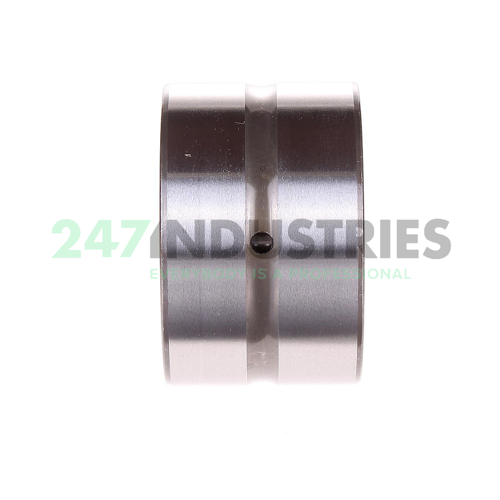

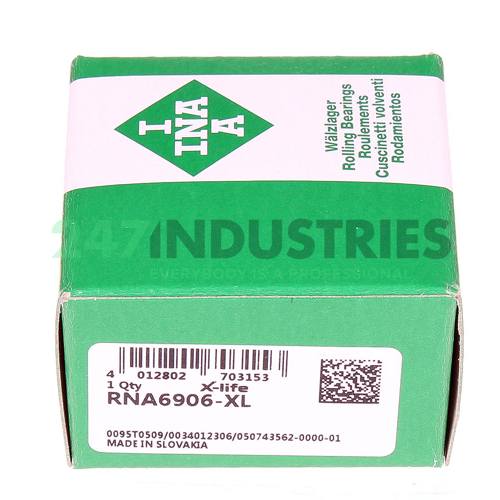

RNA6906-XL INA

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 47,00
3. Width (B) MM 30,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 35,00
8. Width (b) mm 30,00

Suffix description

1. XL X-Life

Technical details

1. Availability 150 pcs
2. Brand INA
3. Item number RNA6906-XL INA
4. Also known as 0507435620000
   RNA6906

5. EAN 4012802703153
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.1248

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 71000
2. Radial Dynamic Load Rating Cr (N) 49000
3. Basic static load rating, radial (C 0r) "71000.0000"
4. Limiting speed (n G) "12600.0000"
5. Limiting speed for grease lubrication (n G Grease) "7500.0000"
6. Reference speed (n ϑr) "6600.0000"
7. ECLASS number 23-05-09-07
8. ECLASS2 number 23-05-09-07
9. Medias description Radial roller bearing RNA..-XL

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
