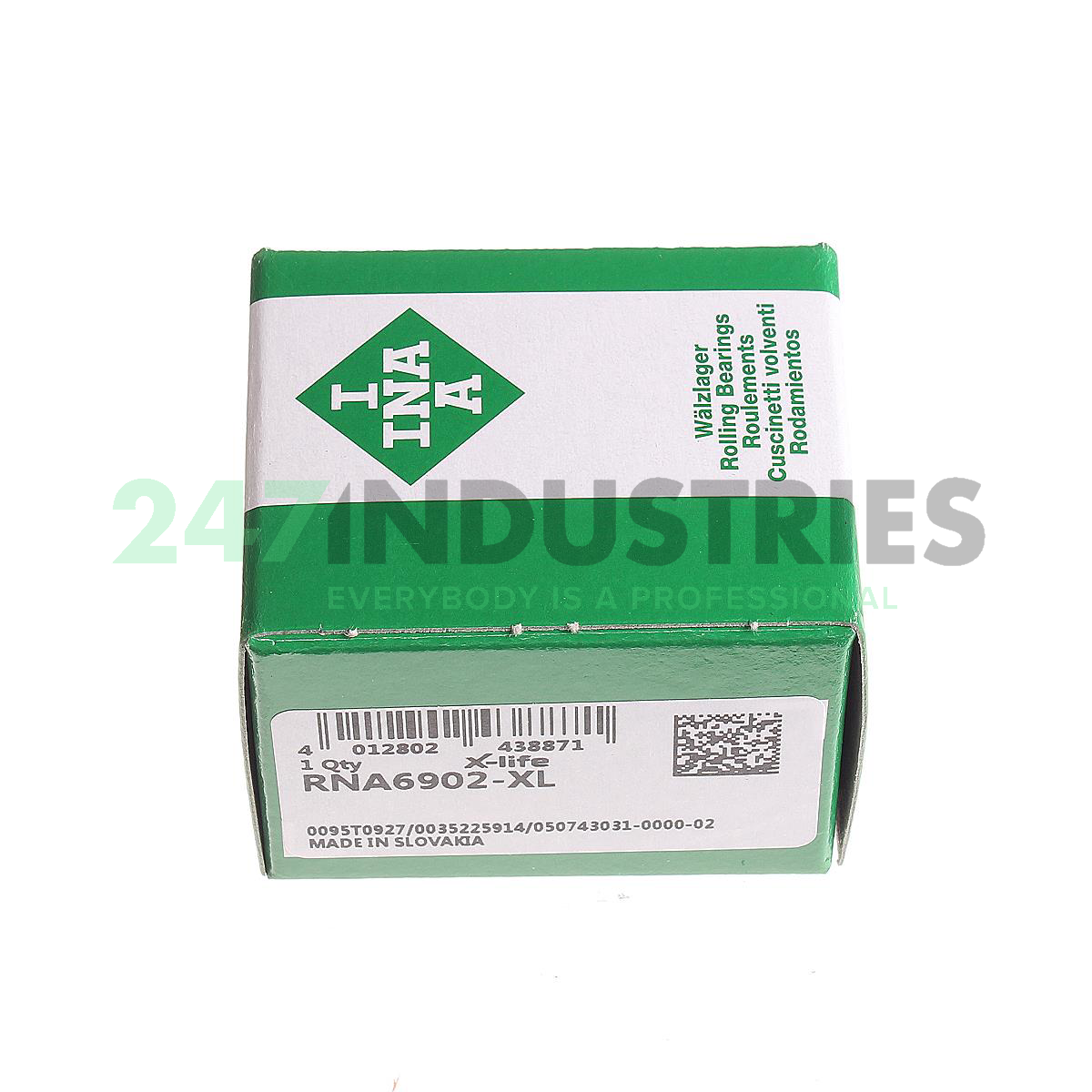

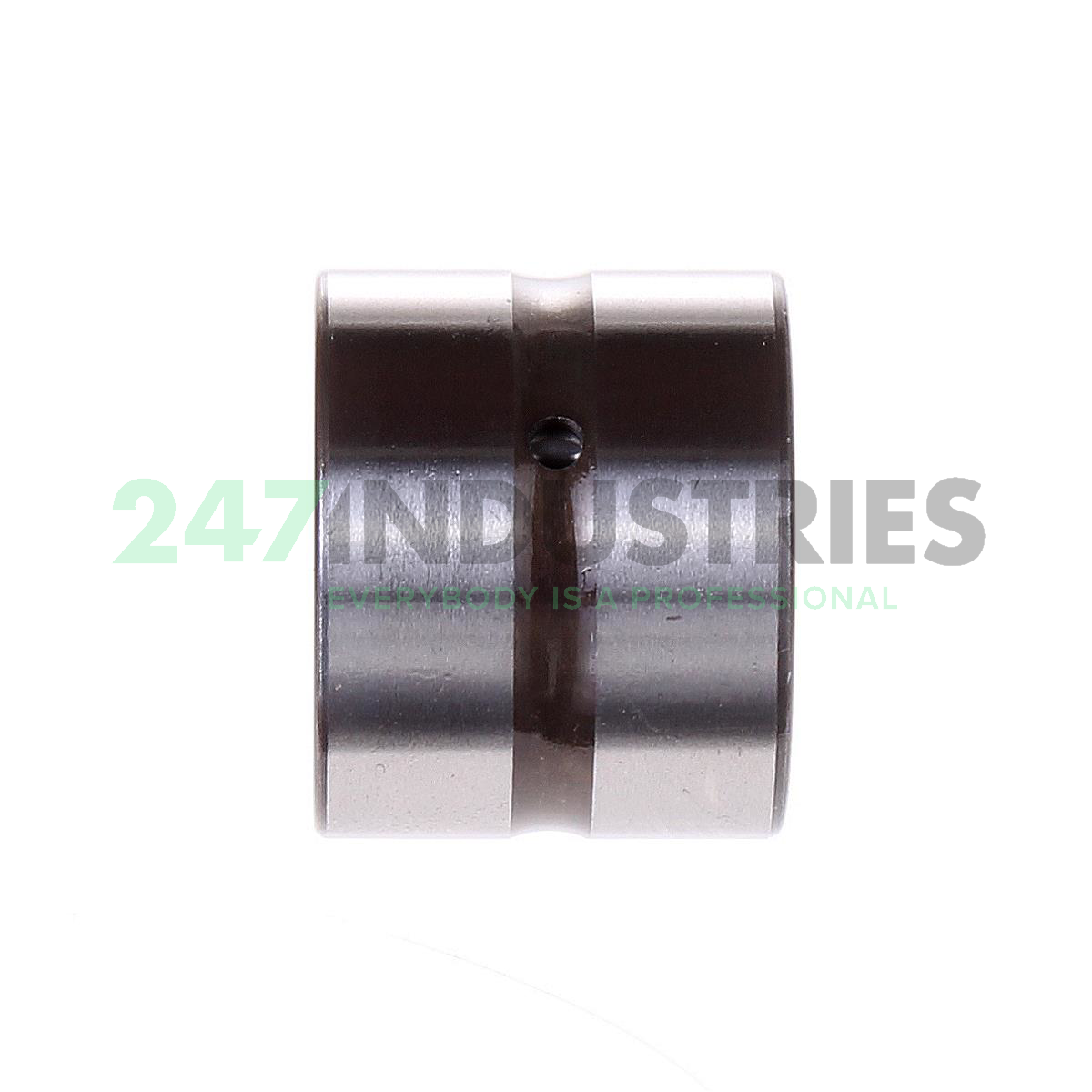

RNA6902-XL INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 28
3. Width (B) MM 23
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.9055
7. Under roller diameter (F w) mm 20
8. Width (b) mm 23

Suffix description

1. XL X-Life

Technical details

1. Availability 1,893 pcs
2. Brand INA
3. Item number RNA6902-XL INA
4. Also known as 0507430310000
   RNA6902

5. EAN 4012802438871
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.04

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 25500
2. Radial Dynamic Load Rating Cr (N) 19500
3. Limiting speed (n G) 21100
4. Limiting speed for grease lubrication (n G Grease) 12600
5. Reference speed (n ϑr) 11700
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNA..-XL
