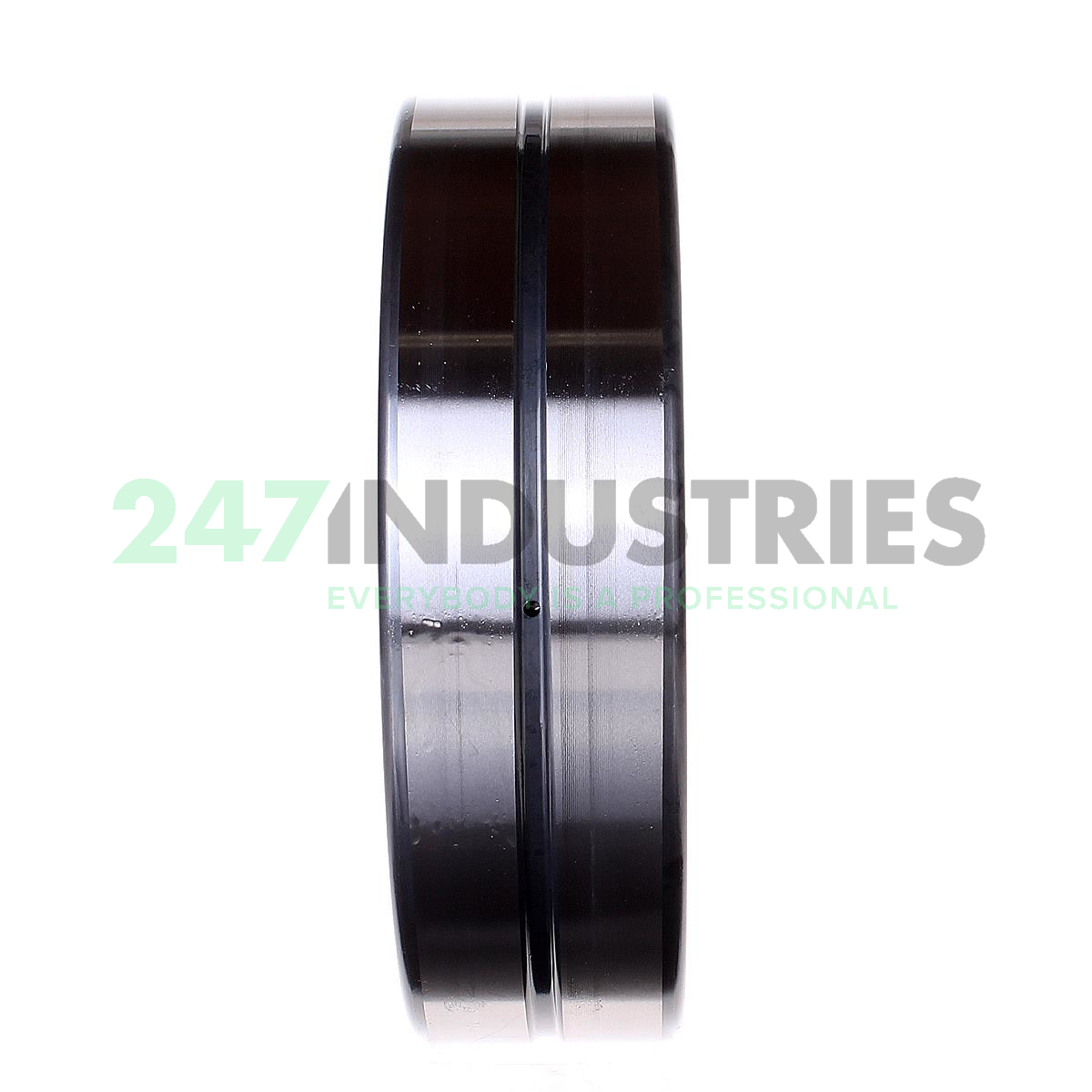

RNA4926-XL INA

All dimensions

1. Inner (d) MM 150
2. Outer (D) MM 180
3. Width (B) MM 50
4. Inner (d) Inch 5.9055
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.9685
7. Under roller diameter (F w) mm 150
8. Width (b) mm 50

Suffix description

1. XL X-Life

Technical details

1. Availability 49 pcs
2. Brand INA
3. Item number RNA4926-XL INA
4. Also known as 0506730680000
   RNA4926

5. EAN 4047643205306
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 2.21

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 470000
2. Radial Dynamic Load Rating Cr (N) 229000
3. Limiting speed (n G) 3100
4. Limiting speed for grease lubrication (n G Grease) 1850
5. Reference speed (n ϑr) 2080
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNA..-XL

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
