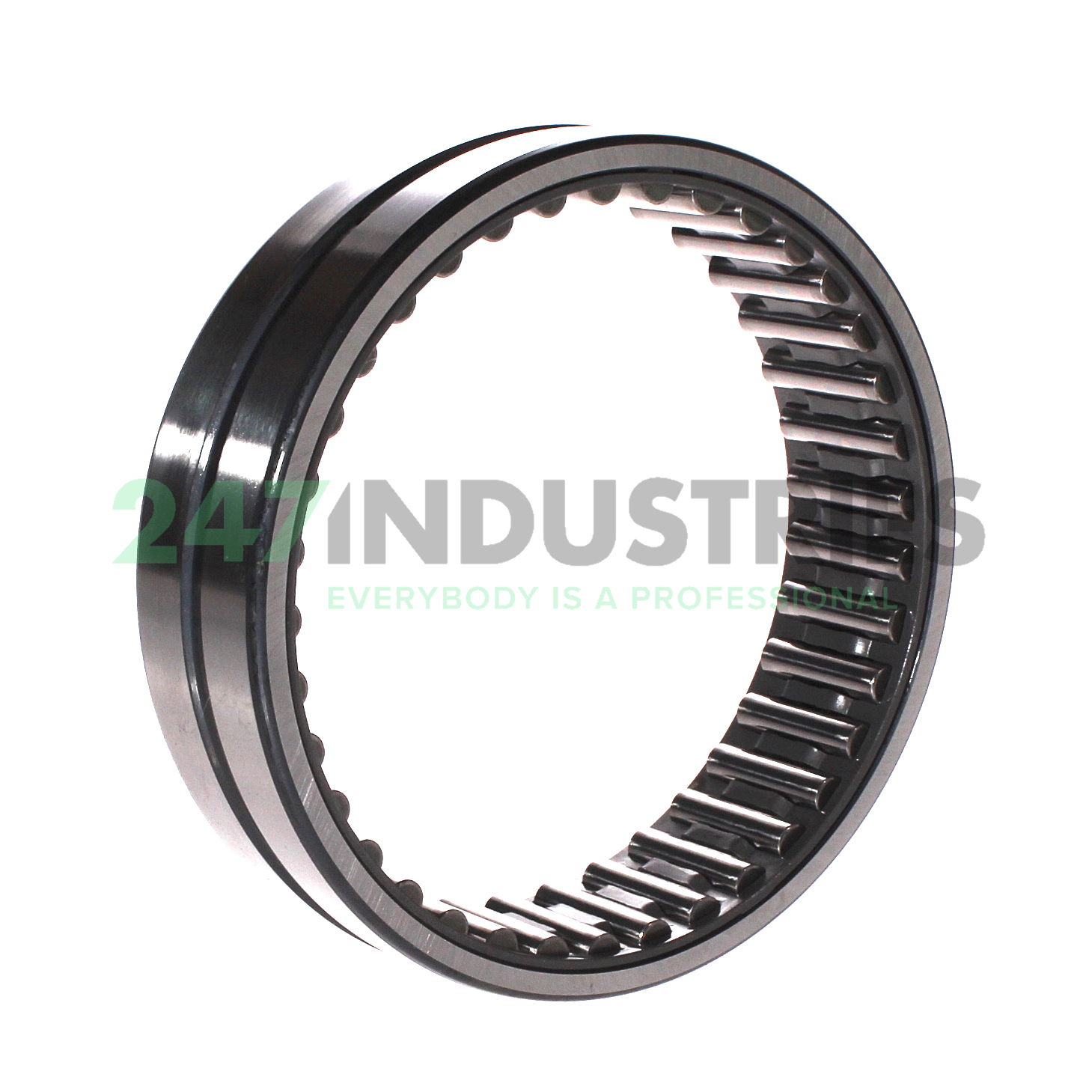

RNA4919-XL INA

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 130
3. Width (B) MM 35
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.378
7. Under roller diameter (F w) mm 110
8. Width (b) mm 35

Suffix description

1. XL X-Life

Technical details

1. Availability 23 pcs
2. Brand INA
3. Item number RNA4919-XL INA
4. Also known as 0506729080000
   RNA4919

5. EAN 4012802845020
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.719

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 260000
2. Radial Dynamic Load Rating Cr (N) 131000
3. Limiting speed (n G) 4200
4. Limiting speed for grease lubrication (n G Grease) 2500
5. Reference speed (n ϑr) 2500
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNA..-XL
