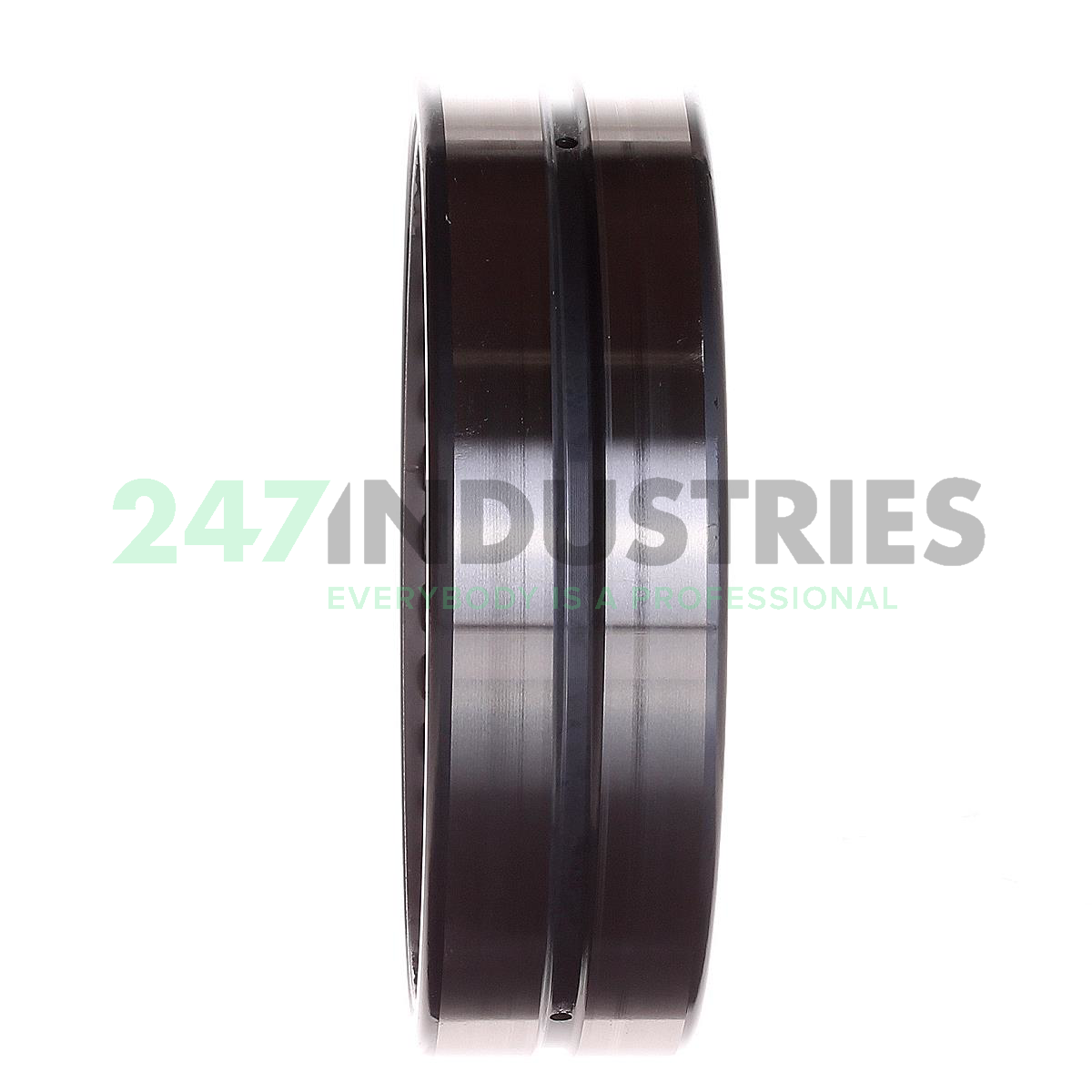

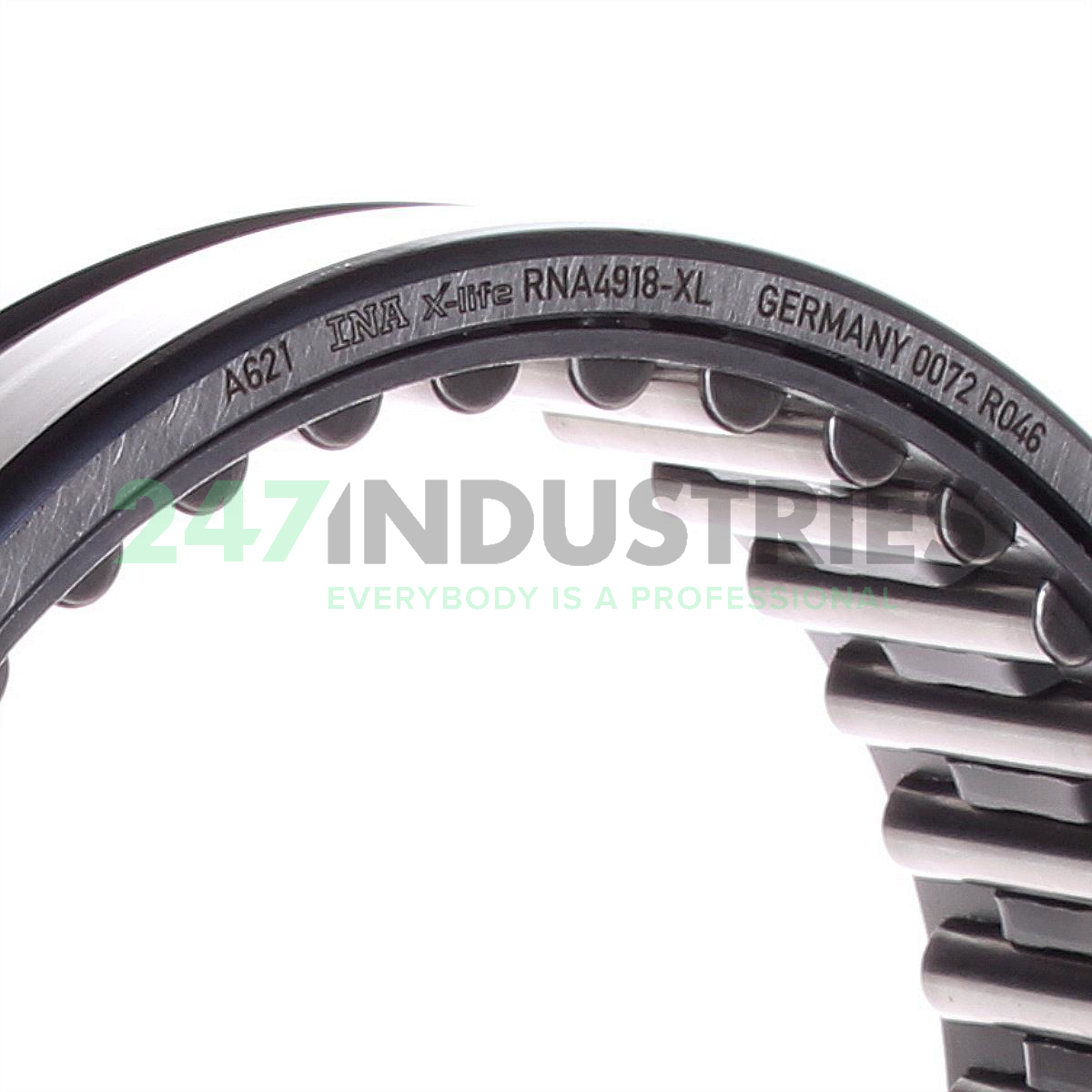

RNA4918-XL INA

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 125
3. Width (B) MM 35
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.378
7. Under roller diameter (F w) mm 105
8. Width (b) mm 35

Suffix description

1. XL X-Life

Technical details

1. Availability 50 pcs
2. Brand INA
3. Item number RNA4918-XL INA
4. Also known as 0506728940000
   RNA4918

5. EAN 4047643205368
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.69

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 250000
2. Radial Dynamic Load Rating Cr (N) 129000
3. Limiting speed (n G) 4400
4. Limiting speed for grease lubrication (n G Grease) 2650
5. Reference speed (n ϑr) 2650
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Radial roller bearing RNA..-XL
